Engine Control System Diagnosis (2 Of 2) - HEV
>>
DTC P2626: O2 Sensor Pumping Current Trim Circuit Open-Bank 1 Sensor 1
>>
General Information
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Circuit Diagram

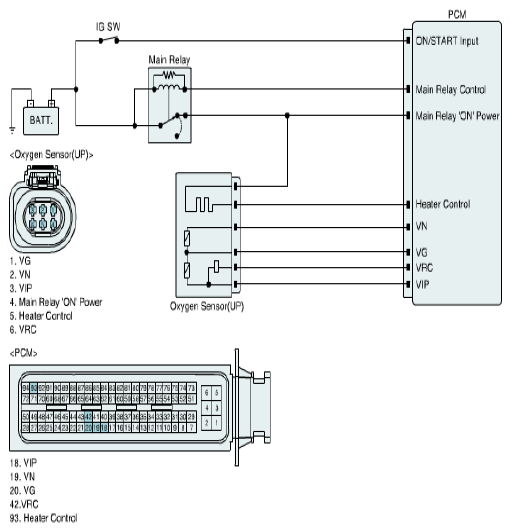

Fig 1: Oxygen Sensor Diagnostic - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
