Component Location: Notes

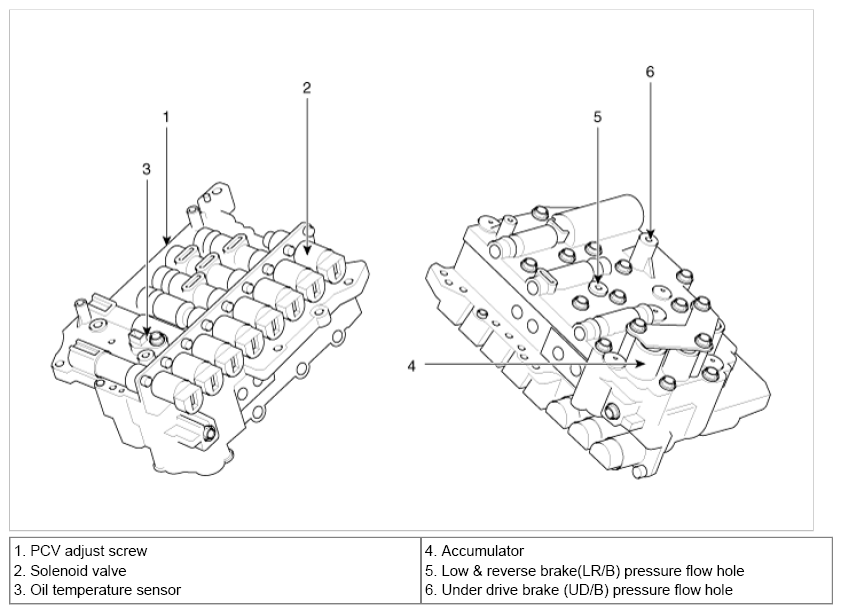

Fig 1: Identifying Valve Body Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
