Drive Motor Rotor Position Sensor: Service and Repair

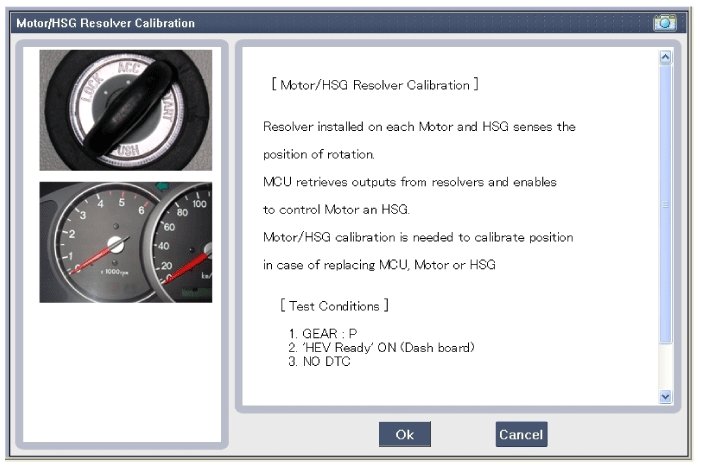

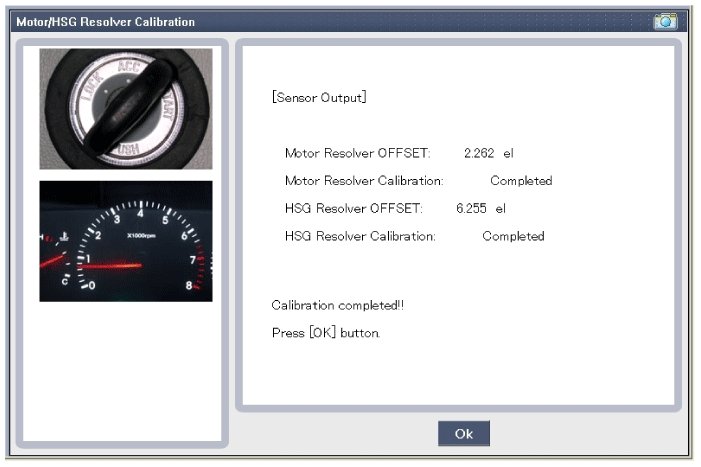

Resolver Calibration

This calibration task is required each time the motor or inverter (MCU) is replaced or removed and remounted. This calibration is performed with the GDS.

- Conduct Calibration after replacing below components :
- Hybrid Drive Motor
- Hybrid Starter Generator (HSG)
- Motor Control Unit (MCU)
