Oil Pump Unit (OPU)

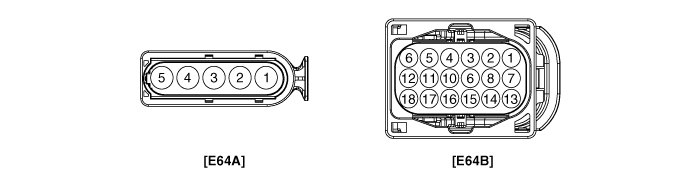

OPU connector and terminal function

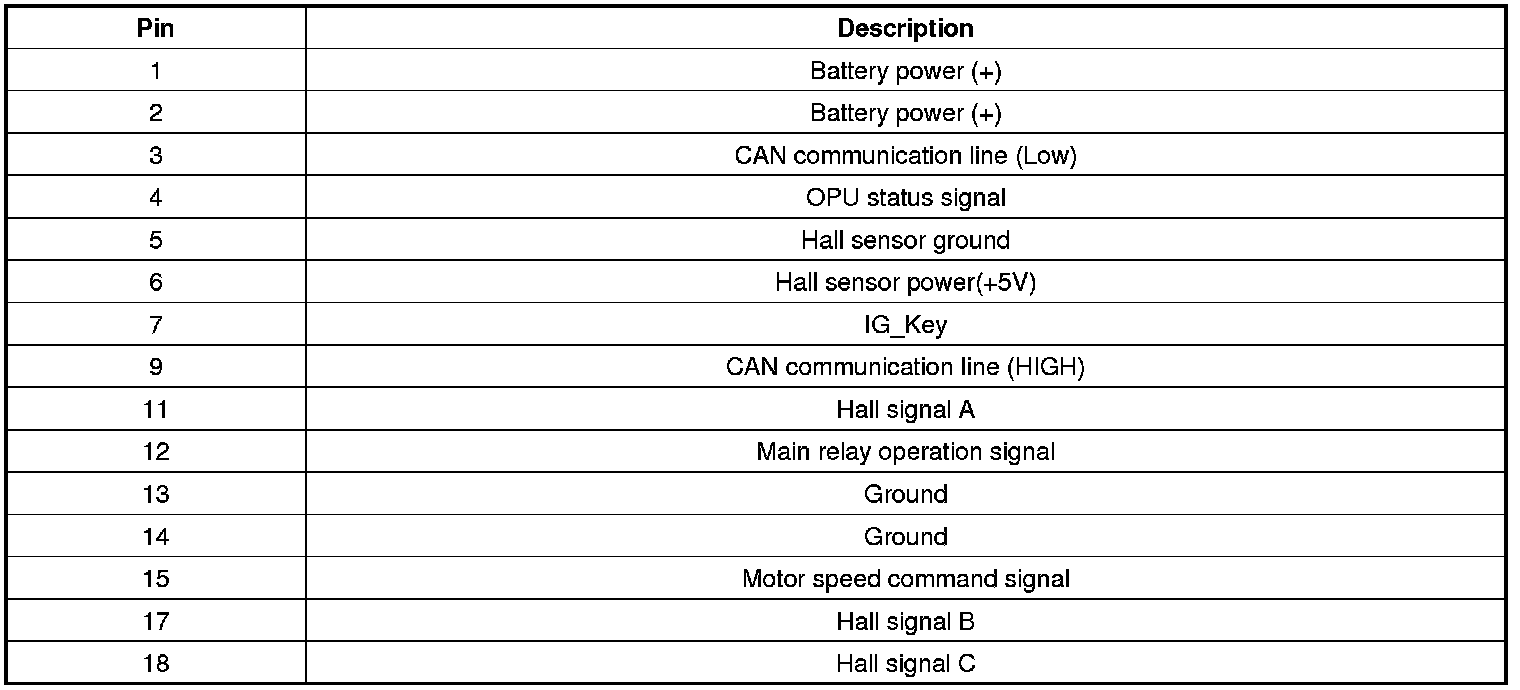

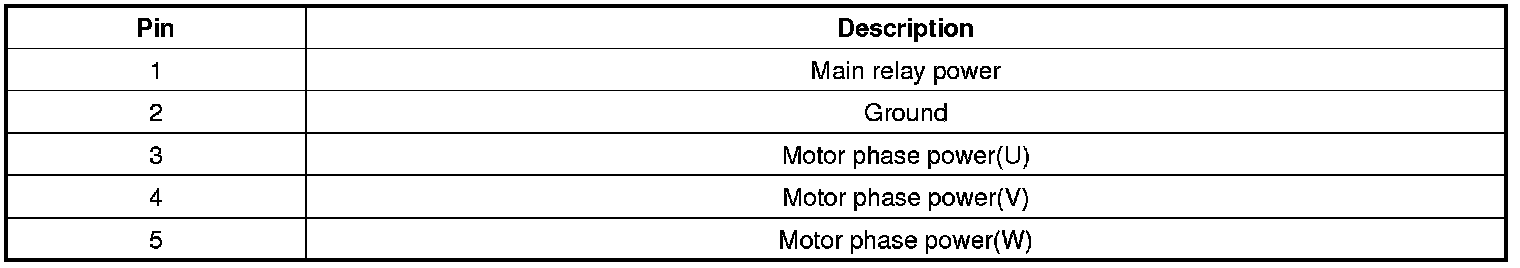

OPU terminal function

[E64A]





[E64B]

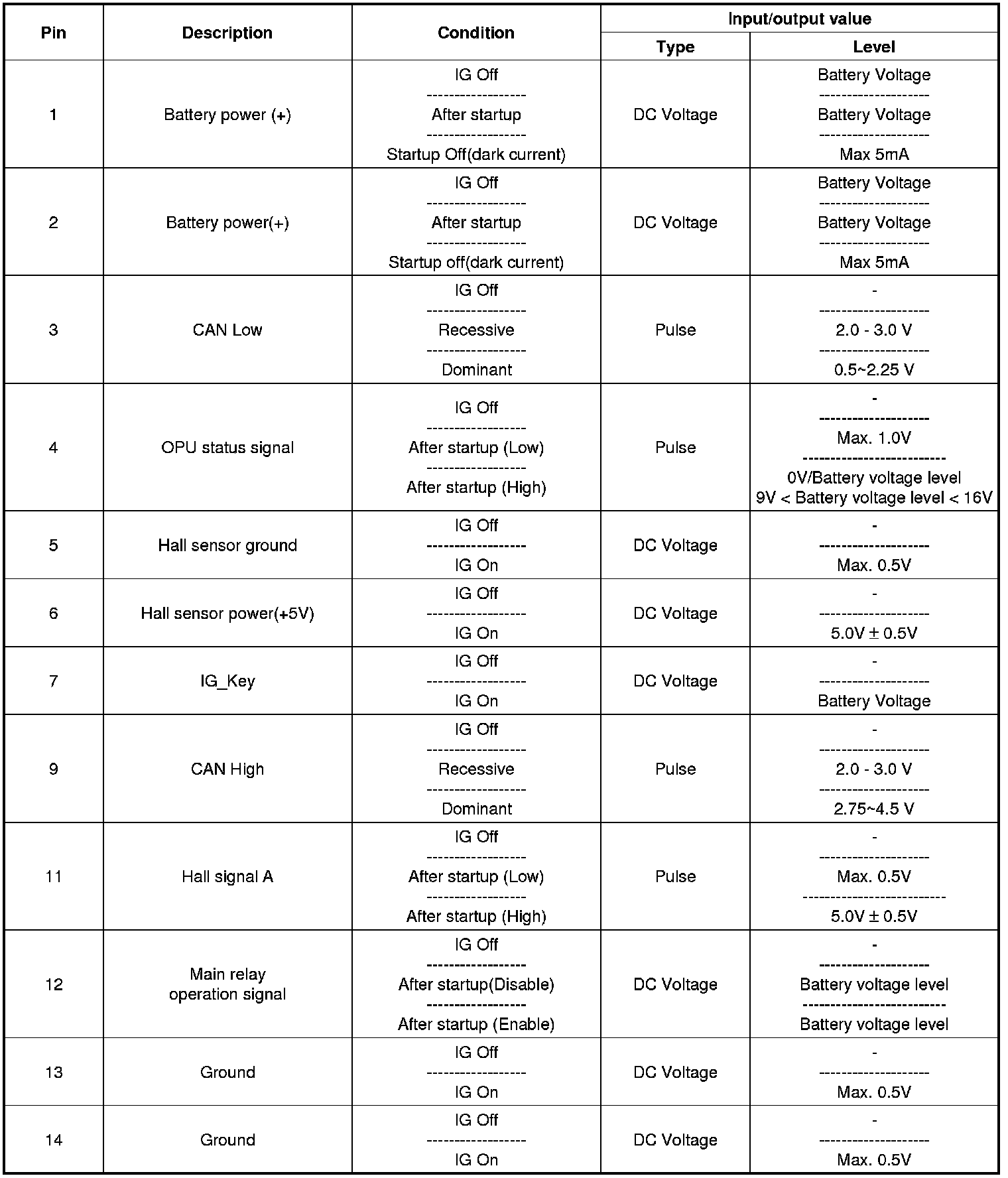

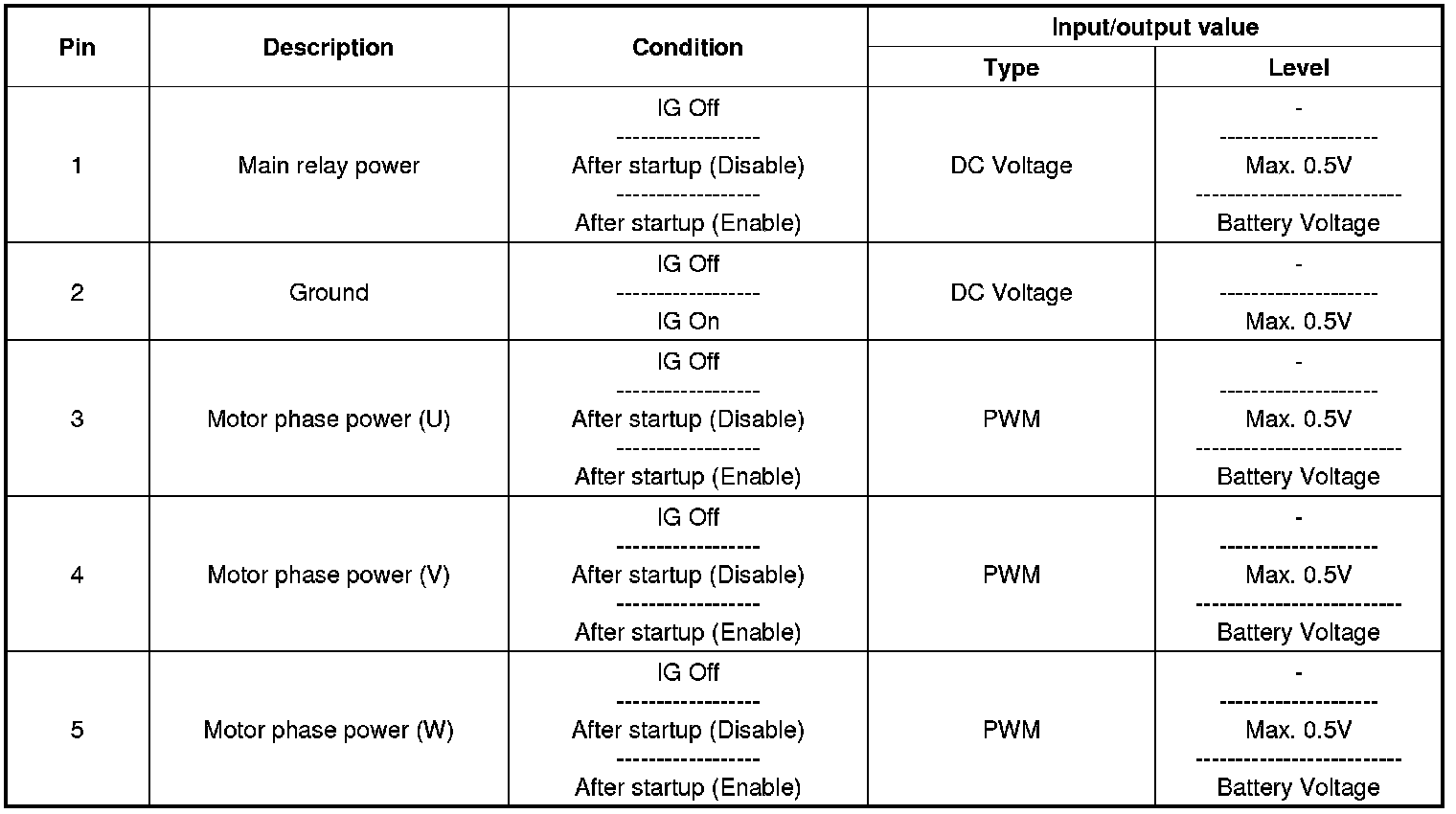

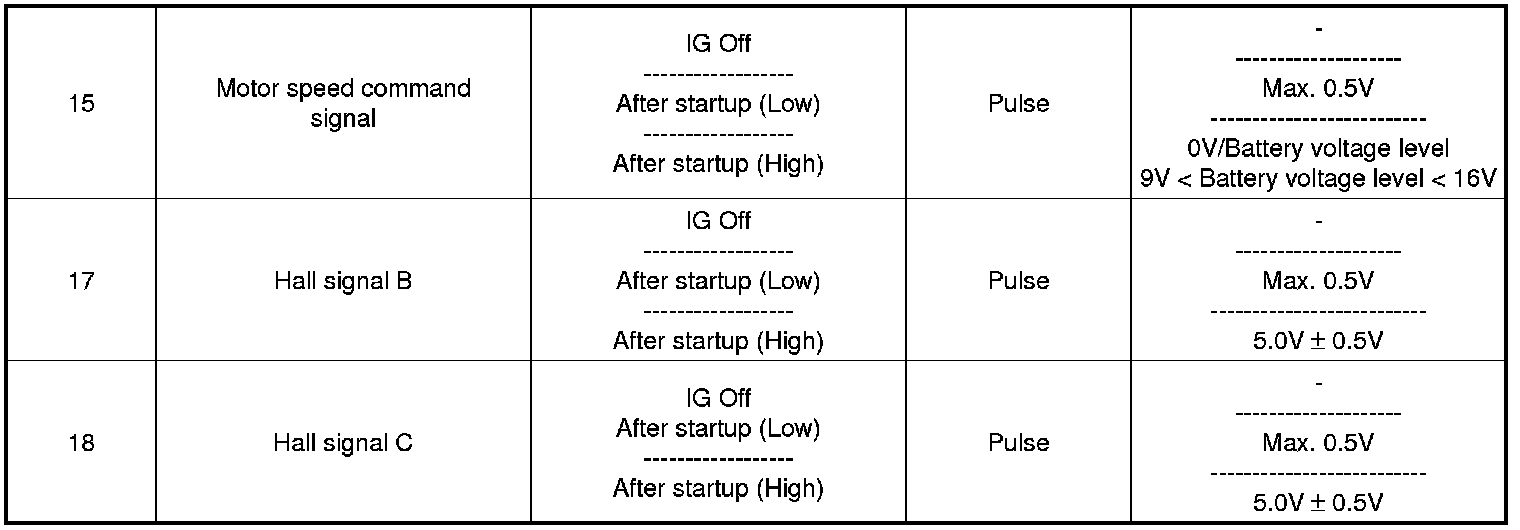

OPU Terminal input/ output signal

[E64A]





[E64B]
