Climate Control Air Filter

Replacement

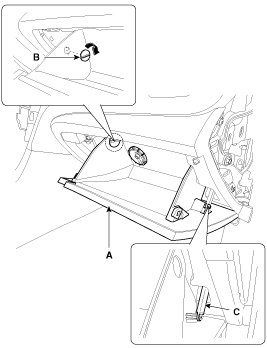

1. Disconnect the damper (B) from the glove box (A).Remove the glove box lift (C).




2. Remove the filter cover with pushing the knob.




3. Replace the air filter (B), install it after making sure of the direction of air filter.





NOTE:
In case of driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.

4. Installation is the reverse order of removal.
