Repair Procedures: Replacement: Installation

1. With a knife, scrape the old adhesive smooth to a thickness of about 2 mm (0.08 in.) on the bonding surface around the entire windshield opening flange:
   1. Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
   2. Remove the rubber dam and fasteners from the body.
   3. Mask off surrounding surfaces before painting.
2. Clean the bonding surface with a sponge dampened in alcohol. After cleaning, keep oil, grease and water from getting on the clean surface.
3. Install the windshield side molding (A) and fasteners.

   Do not allow any gaps.

   Fig 1: Windshield Side Molding

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install the spacer (A) install the windshield glass (B) temporarily with marking sure to position them on the center, and then place the alignment mark (C).
   Fig 2: Spacer, Windshield & Alignment Mark

   Courtesy of KIA MOTORS AMERICA, INC.
5. With a sponge, apply a light coat of body primer to the original adhesive remaining around the windshield opening flange. Let the body primer dry for at least 10 minutes.
   1. Do not apply glass primer to the body, and be careful not to mix up glass and body primer sponges.
   2. Never touch the primed surfaces with your hands.
   3. Mask off the dashboard before painting the flange.
   Fig 3: Identifying Primer Application Area Of Windshield Opening Flange

   Courtesy of KIA MOTORS AMERICA, INC.
6. Apply a light coat of glass primer to the outside of the fasteners.
   NOTE:

   • Never touch the primed surface with your hand. If you do, the adhesive may not bond to the glass properly, causing a leak after the windshield glass is installed.
   • Do not apply body primer to the glass.
   • Keep water, dust, and abrasive materials away from the primer.
   Fig 4: Identifying Primer Application Area Of Outside Of Fasteners

   Courtesy of KIA MOTORS AMERICA, INC.
7. Pack adhesive into the cartridge without air pockets to ensure continuous delivery. Put the cartridge in a caulking gun, and run a bead of adhesive (B) around the edge of the windshield glass (A) between the fastener and molding as shown. Apply the adhesive within 30 minutes after applying the glass primer. Make a slightly thicker bead at each corner.

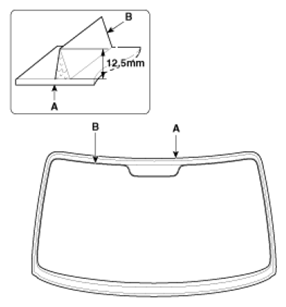

   Fig 5: Identifying Dimension Of Application Adhesive On Windshield Glass

   Courtesy of KIA MOTORS AMERICA, INC.
8. Use suction cups (A) to hold the windshield glass (B) over the opening, align it with the alignment marks (C) made in step 15, and set it down on the adhesive. Lightly push on the windshield until its edges are fully seated on the adhesive all the way around. Do not open or close the doors until the adhesive is dry.
   Fig 6: Holding Windshield Glass Using Suction Cup

   Courtesy of KIA MOTORS AMERICA, INC.
9. Scrape or wipe the excess adhesive off with a putty knife or towel. To remove adhesive from a painted surface or the windshield, wipe with a soft shop towel dampened with alcohol.
10. Let the adhesive dry for at least one hour, then spray water over the roof and check for leaks. If a leak occurs, let it dry, then seal with sealant :
    1. Let the vehicle stand for at least four hours after windshield installation. If the vehicle must be driven within 4 hours, it must be driven slowly.
    2. Keep the windshield dry for the first hour after installation.
11. Installation the following items.

1. Windshield glass deicer connector

   Refer to WINDSHIELD DEICER .

2. Cowl top cover

   Refer to COWL TOP COVER .

3. Windshield wiper arm

   Refer to COWL TOP COVER .

4. Rain sensor

   Refer to INSTALLATION .

5. ECM mirror

   Refer to MIRROR .

6. Front pillar trim

Refer to Front Pillar Trim Replacement .
