Repair Procedures: Replacement

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Recover the refrigerant with a recovery/charging station.
Disconnect the A/C pressure transducer connector (3P) (A).
Tightening torque:

10-12 N.m (1.0-1.2 kgf.m, 7.4-8.8 lb-ft)

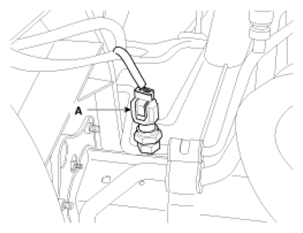

Fig 1: Identifying A/C Pressure Transducer Connector
Courtesy of KIA MOTORS AMERICA, INC.

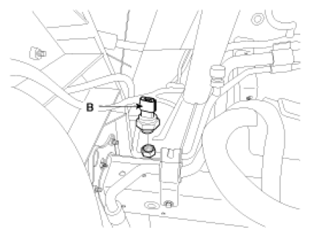

Fig 2: Identifying A/C Pressure Transducer
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Take care that liquid & suction pipe are not bent.
Installation is the reverse order of removal.
