Section 38 (Audio System - HEV)
>>
Troubleshooting
>>
Chart 1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Chart 1
WARNING:
This page is about a different variant/trim than selected.

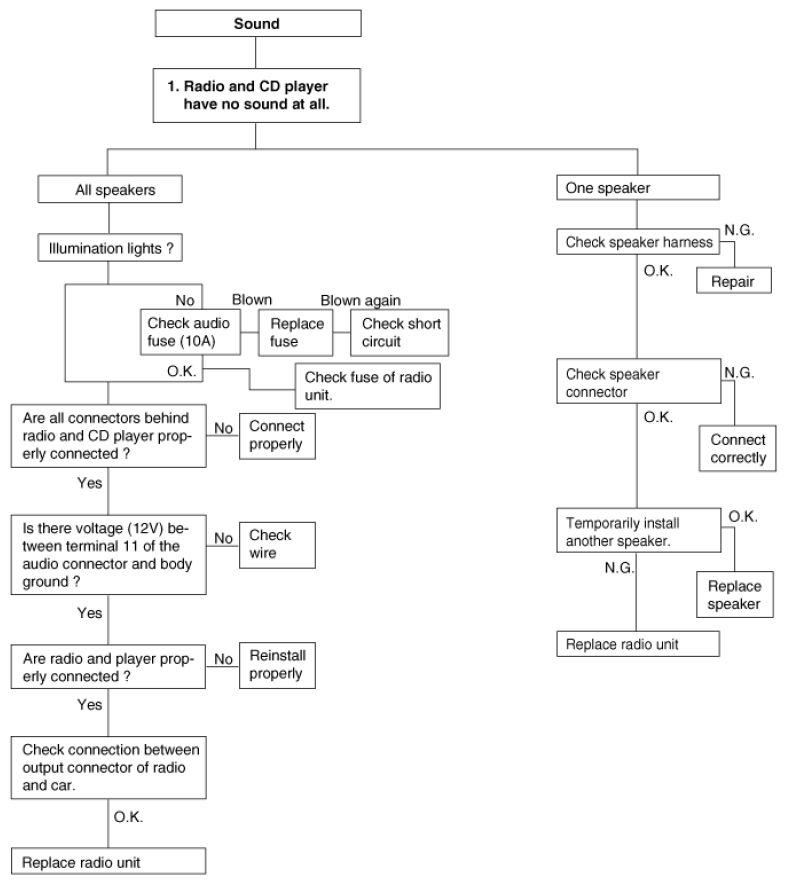

Fig 1: Troubleshooting Work Flow Chart - Sound (Radio And CD Player Have No Sound)
Courtesy of KIA MOTORS AMERICA, INC.

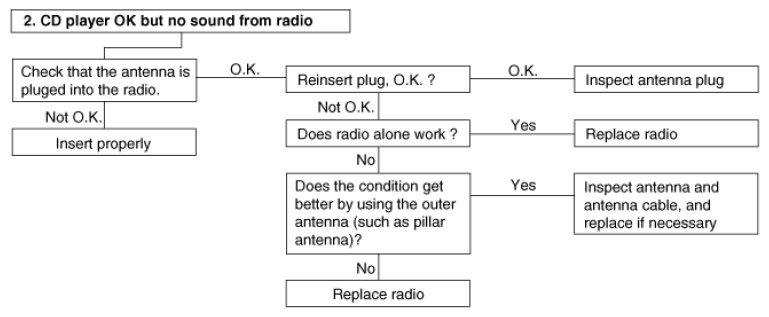

Fig 2: Troubleshooting Work Flow Chart - Sound (CD Player Ok But No Sound To Radio)
Courtesy of KIA MOTORS AMERICA, INC.
