Repair Procedures: Removal

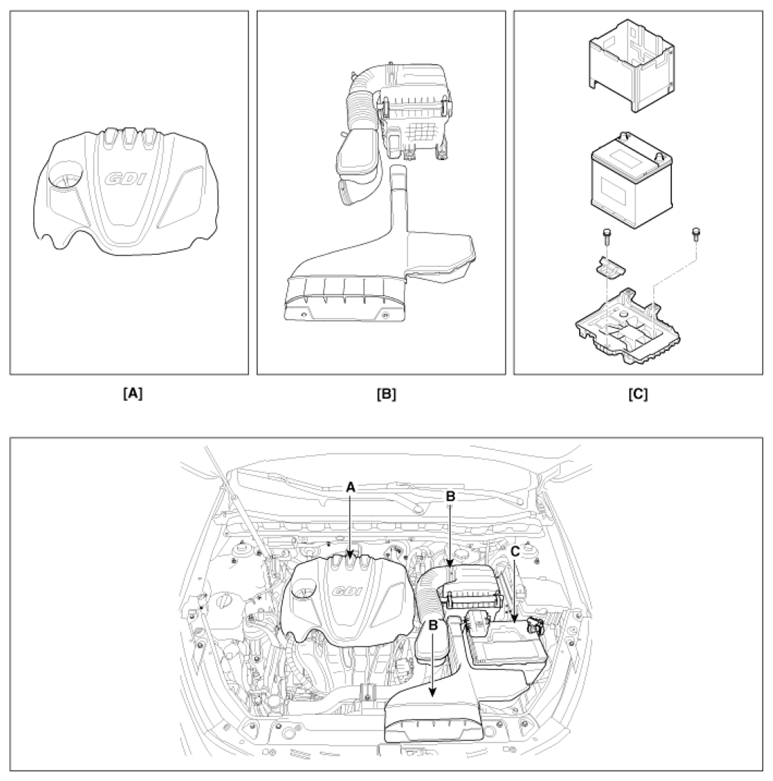

Remove the following items;
1. Engine cover (A).
2. Air cleaner assembly and air duct (B). Refer to INTAKE AND EXHAUST SYSTEM .
3. Battery and battery tray (C). Refer to BATTERY .

  Fig 1: Engine Cover, Air Duct & Battery Tray
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the ground line after removing the bolt (A).

Fig 2: Ground Line & Bolt
Courtesy of KIA MOTORS AMERICA, INC.

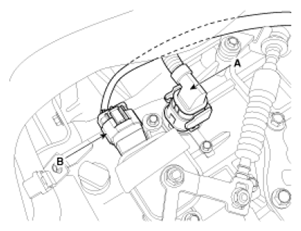

Disconnect the solenoid valve connector (A) and inhibitor switch connector (B).

Fig 3: Solenoid Valve & Inhibitor Switch Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the control cable (C) after removing the nut (A) and the bolt (B).
Tightening torque:
1. 9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)
2. 14.7 ~21.6 N.m (1.5 ~2.2 kgf.m, 10.9 ~15.9 lb-ft)

  Fig 4: Control Cable, Nut & Bolt
  Courtesy of KIA MOTORS AMERICA, INC.

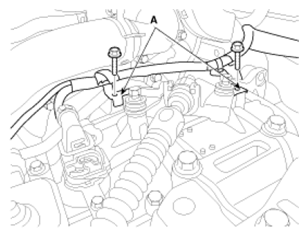

Remove the solenoid valve connector and inhibitor switch connector wiring mounting bracket (A).

Fig 5: Wiring Mounting Bracket
Courtesy of KIA MOTORS AMERICA, INC.

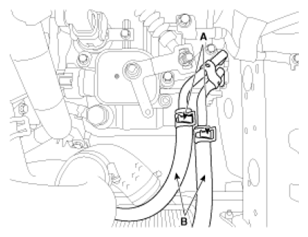

Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).

Fig 6: Automatic Transaxle Fluid Cooler Hoses & Clamps
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring bracket installation bolt (A).

Fig 7: Wiring Bracket Installation Bolt
Courtesy of KIA MOTORS AMERICA, INC.

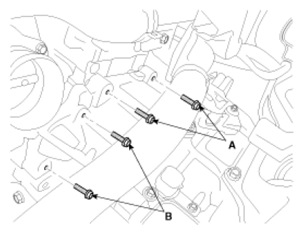

Remove the automatic transaxle upper mounting bolt (A-2ea) and the starter motor mounting bolt (B-2ea).
Tightening torque:

(A), (B): 42.2 ~ 54.0 N.m (4.3 ~5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

Fig 8: Automatic Transaxle Upper Mounting Bolts & Starter Motor Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the mounting cover (A).

Fig 9: Mounting Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the support bracket mounting bolts (A).
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.8 lb-ft)

Fig 10: Support Bracket Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Using the engine support fixture (SST No.: 09200-38001), hold the engine and transaxle assembly safely.

Fig 11: Holding Engine & Transaxle Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the automatic transaxle mounting support bracket (C).
Tightening torque:
1. 78.5 ~ 98.1 N.m (8.0 ~ 10.0 kgf.m, 57.9 ~ 72.3 lb-ft)
2. 58.9 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)

  Fig 12: Automatic Transaxle Mounting Support Bracket
  Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle with a jack.
Remove the under cover (A).
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Fig 13: Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring bracket installation bolt (A).

Fig 14: Wiring Bracket Installation Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the following items;
1. Sub frame assembly. Refer to FRONT CROSS MEMBER .
2. Drive shaft assembly. Refer to DRIVE SHAFT ASSEMBLY .
Remove the dust cover (A).

Fig 15: Dust Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the torque converter mounting bolt (A-4ea) with rotating the crankshaft.
Tightening torque:

45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

Fig 16: Torque Converter Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive shaft cover mounting bolt (A).

Fig 17: Drive Shaft Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the automatic transaxle with a jack after removing the mounting bolt (A-4ea, B-2ea).
Tightening torque:
1. 42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)
2. 42.2 ~ 54.0 N.m (4.3 ~5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

  Fig 18: Automatic Transaxle Mounting Bolts
  Courtesy of KIA MOTORS AMERICA, INC.
