Shift Cable Replacement

Remove the floor Interior console assembly. Refer to INTERIOR (CONSOLE) .
Remove the select cable snap pin (A) and the clip (B) from the select cable assembly.

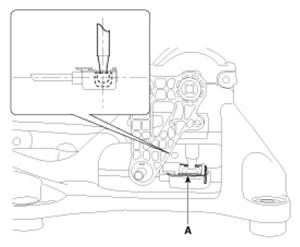

Fig 1: Select Cable Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Select Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the clip (A) from the shift cable.
CAUTION: Set securely.

Fig 3: Shift Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the retainer (A) and nuts (B).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

Fig 4: Retainer & Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the SRS Control Module. Refer to SRS CONTROL MODULE (SRSCM) .
Remove the pin and washer (A).
Remove the cable (B) from the cable bracket at manual transaxle assembly side.
Remove the shift cable and select cable at cabin room.

Fig 5: Cable, Pin & Washer
Courtesy of KIA MOTORS AMERICA, INC.
