Front Power Window Motor Inspection

  1. Remove the front door trim panel.

    Refer to FRONT DOOR .

  2. Disconnect the connector from the motor.

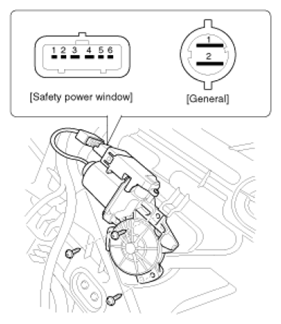

    Fig 1: Front Power Window Motor Connector End View
    G07380895Courtesy of KIA MOTORS AMERICA, INC.
  3. Connect the motor terminals No. 2 and No. 3 directly to battery voltage (12V) and check that the motor operates smoothly. If the operation is abnormal, replace the motor.
