Removal And Installation

Disconnect the terminals from the battery.
Tightening torque:

(+) terminal (A) : 7.8 ~ 9.8 N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2 lb-ft)

(-) terminal (B) : 4.0 ~ 6.0 N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4 lb-ft)

Fig 1: Identifying Battery Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Remove the battery insulation pad (A).
Remove the battery mounting bracket (B) by loosening the mounting bolt and then remove the battery (C).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7 lb-ft)

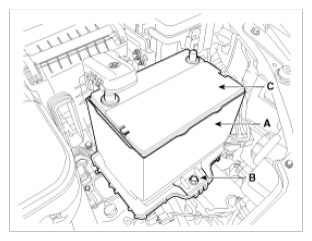

Fig 2: Battery, Insulation Pad & Mounting Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the battery tray (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7 lb-ft)

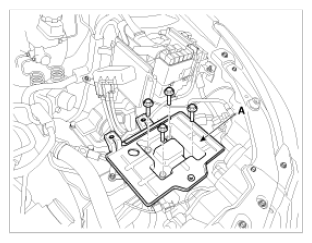

Fig 3: Battery Tray
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse order of removal.
CAUTION: When installing the battery, fix the mounting bracket on the tray correctly.
