Repair Procedures: Removal

Disconnect the battery (-) terminal.
Remove the air-bag module from the steering wheel. (Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel. (Refer to "STEERING COLUMN AND SHAFT ")
Remove the steering wheel cover (A) after loosening 6 screws.

Fig 1: Identifying Steering Wheel Cover And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the remote control switch after loosening 2 screws and disconnecting the connector.

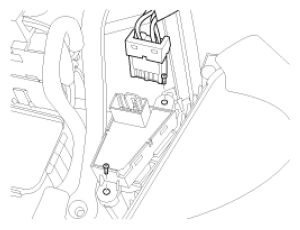

Fig 2: Identifying Remote Control Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Identifying Cruise Control Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
