Monitor GDS Data

  1. IG KEY "ON" & Engine "OFF".
  2. Erase DTC after connecting GDS.
  3. Check Smart Key ECM/PCM status parameter if DTC is retrieved.

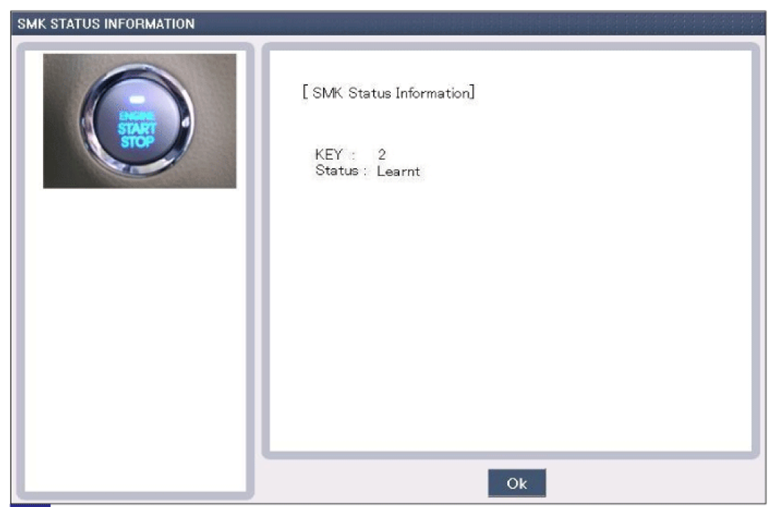

    Fig 1: Display - Engine Start Stop Button
    G08325388Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the neutralization of Smart Key ECM/PCM, Engine ECM/PCM and key teaching normal?

    YES

    • Neutralize the ECM/PCM after erasing the DTC with GDS.

      Check that system is normal after checking the DTC again. (If the DTC is set again, replace ECM/PCM)

      Wait for more than 1 min. with IG ON so that smart key ECM/PCM register PIN into Engine ECM/PCM automatically.

    NO

    NOTE:
    • PIN code is programmed in Smart key ECM/PCM, Transponder, ESCL.
      1. If the Smart key ECM/PCM is not registered with PIN, key teaching process is not proceeded.
      2. Registering PIN is available after Smart Key ECM/PCM is neutralized.
      3. Neutralization of Engine ECM/PCM is available with GDS (Registering PIN code)
      4. If the virgin engine ECM/PCM is installed on vehicle, Engine ECM/PCM is automatically programmed PIN code by Smart Key ECM/PCM.
      5. Registering PIN code is only possible for virgin or neutralized status.
    • All Learning procedure is able to do with a scan tool in the vehicle's ignition key off state.
      • Smart Key ECM/PCM Learning
        1. Before learning procedure for ESCL, Smart Key ECM/PCM should be registered PIN code first.
        2. In case of replacing Smart Key ECM/PCM, All of the keys should be newly registered again.
        3. In case that Smart Key ECM/PCM receives 3 times with wrong PIN, It is not allowed for neutralization and Key Teaching for 1 hour.
        4. If the battery is discharged during neutralization or Teaching, Timer will start again from beginning. Therefore, it is avoidable to wait for 1 hour.
      • ESCL Learning
        1. It is O.K for registering ESCL just one time. And, it is available for ESCL to neutralize and re-teach with same PIN code.

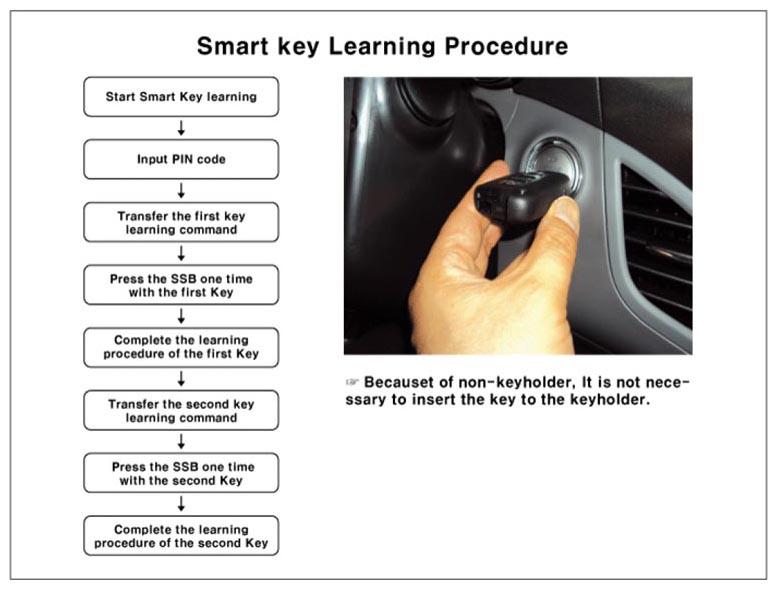

          Fig 2: Smart Key Learning Procedure
          G08325389Courtesy of KIA MOTORS AMERICA, INC.
