Engine Oil Flow Diagram

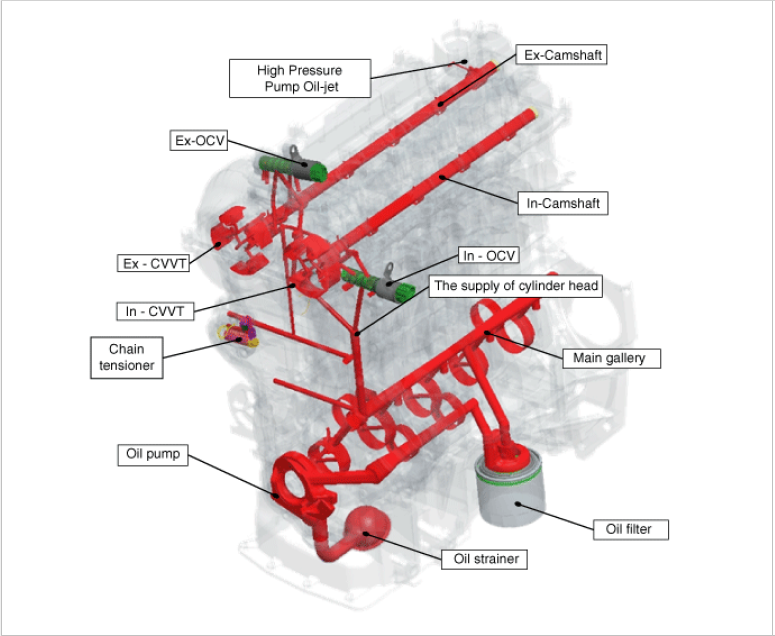

Fig 1: Engine Oil Flow Diagram
G08321163Courtesy of KIA MOTORS AMERICA, INC.

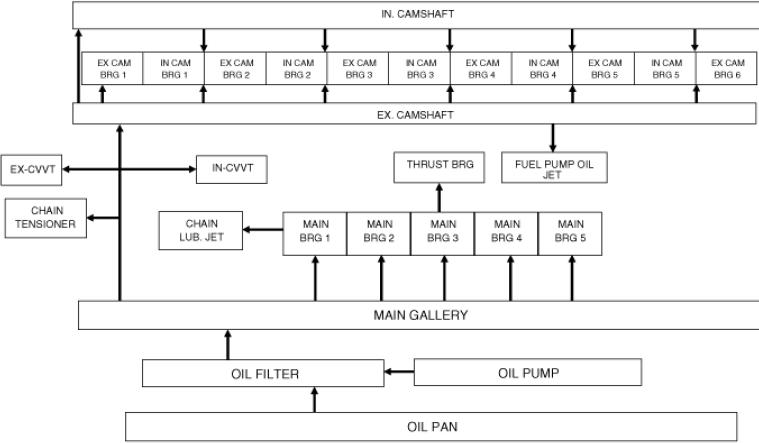

Fig 2: Engine Oil Flow Chart
G08321164Courtesy of KIA MOTORS AMERICA, INC.
