Signal Waveform & Data

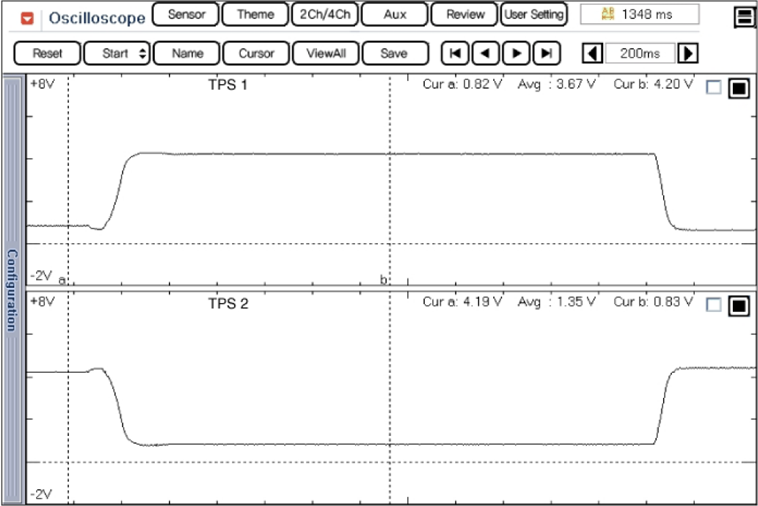

Fig 1: TPS1 & TPS2 Signal Waveform (With No Accel Pedal Depressed Under IG ON Condition)
G08324569Courtesy of KIA MOTORS AMERICA, INC.
