Transmission Temperature Sensor/Switch: Service and Repair

REPLACEMENT

1. Remove the automatic transaxle assembly.
2. Remove the valve body cover(refer to the overhaul manual).
3. Disconnect the oil temperature sensor connector.

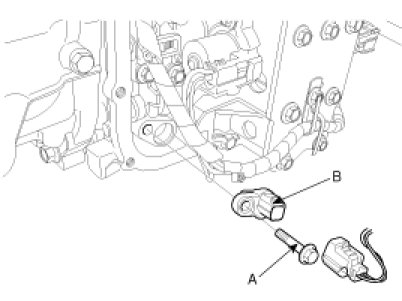

4. Remove the oil temperature sensor(B), loosening the mounting bolt(A).




5. Replace the sensor with the new one and reassemble the rest of the parts.

INSPECTION

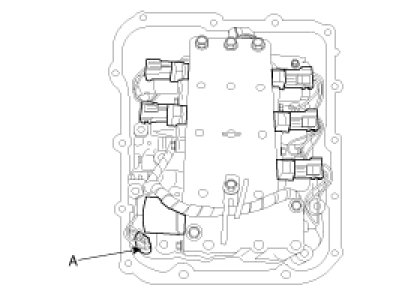

1. Remove the oil temperature sensor(A).




2. Measure the resistance between the terminal 1 and 2 of the sensor connector.









3. If the value is out of the specification, replace the oil temperature sensor.
