Trouble Diagnostics When Using Diagnosis Tool

The diagnosis tool supports quick diagnosis of supported body electrical systems through input/output monitoring. and actuation testing.
To diagnose the BCM function, select the menu of model and body control module.

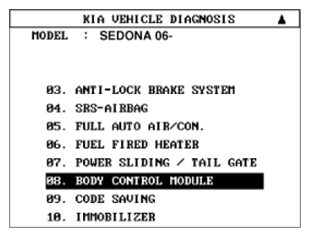

Fig 1: Scantool Display - BCM
Courtesy of KIA MOTORS AMERICA, INC.
Select the module menu to diagnose.

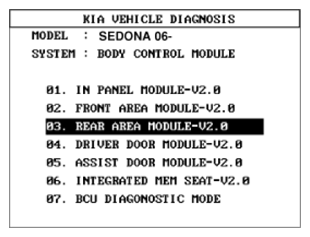

Fig 2: Scantool Display - Rear Area Module
Courtesy of KIA MOTORS AMERICA, INC.

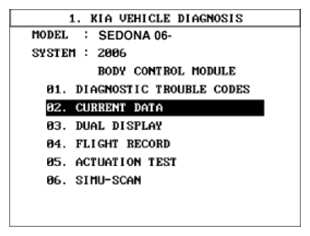

The CURRENT DATA function is used to monitor input/output conditions.

Fig 3: Scantool Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.

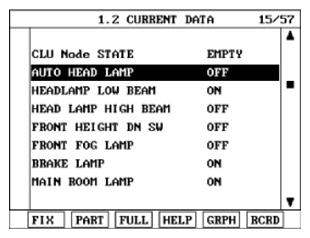

Fig 4: Scantool Display - Auto Head Lamp
Courtesy of KIA MOTORS AMERICA, INC.

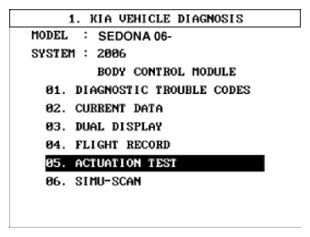

Use the ACTUATION TEST mode to force output devices to operate for testing purposes.

Fig 5: Scantool Display - Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Scantool Display - Room Lamp
Courtesy of KIA MOTORS AMERICA, INC.

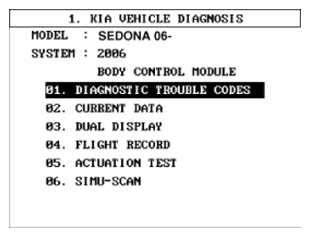

Use the "DIAGNOSTIC TROUBLE CODES" mode.

Fig 7: Scantool Display - DTC
Courtesy of KIA MOTORS AMERICA, INC.
