Repair Procedures: Replacement

Disconnect the negative (-) battery terminal.
Remove the crash pad. Refer to CRASH PAD .
Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) with bracket (B) located on the cowl cross bar. after loosening the shear bolt.
NOTE:
- Punch the shear bolt using a centering punch.
- And drill its head off with a drill bit.
- Be careful not to damage the SMARTRA unit.

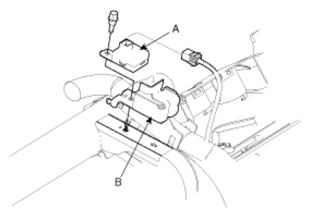

  Fig 1: SMARTRA Unit & Bracket
  Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal procedure.
NOTE:
- Tighten the shear bolt until the bolt head breaks off.
