Engine Oil Schematics

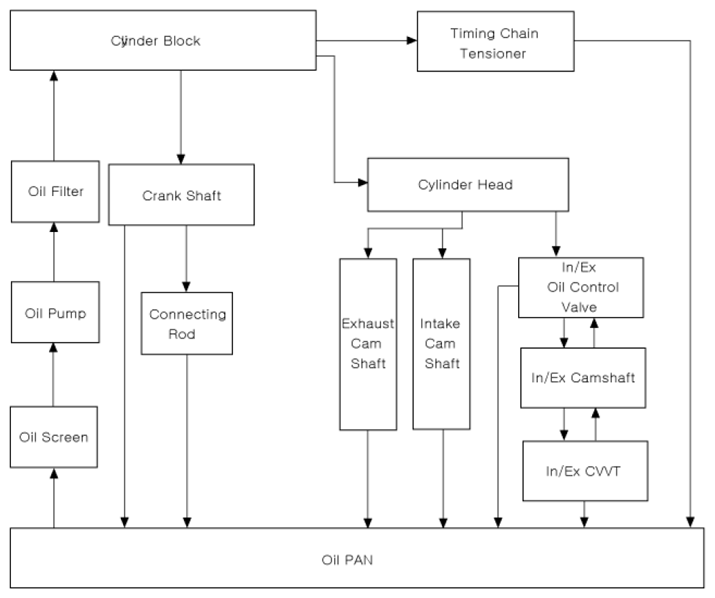

Fig 1: Engine Oil Flow Diagram

G07388809

Courtesy of KIA MOTORS AMERICA, INC.
