ECM/TCM Software Upgrade (SC105) (SC105 REV1)

Publication date: 2014-08-22
Reference number: SC105 REV1
Supersedes refnos: SC105

ECM/TCM SOFTWARE UPGRADE (SC105)

ECM/TCM SOFTWARE UPGRADE (SC105)

TECHNICAL SERVICE BULLETIN

Reference Number(s): SC105 (REV 1), Date of Issue:  August 22, 2014
KIA: 2011-2012 Sedona (VQ) w/3.5L Engine
GROUP: Service Campaign

SERVICE INFORMATION

NOTE: This bulletin has been revised to include additional information

This bulletin provides information related to an inspection of the current ECM ROM ID and, if necessary, an upgrade of the ECM/TCM software on some 2011MY Sedona (VQ) vehicles, produced from March 3, 2010 through February 14, 2011 and some 2012MY Sedona (VQ) vehicles, produced from February 7, 2011 through August 14, 2012, which may not be in compliance with EPA and/or CARB emissions regulations. To ensure maximum customer satisfaction, Kia is requesting the completion of this Service Campaign on all affected 2011~2012MY Sedona vehicles. For confirmation that the latest reflash has been done to a vehicle you are working on, verify ROM ID using the tables in this TSB.

Affected Model/Production Dates Applicable Emissions Certification Affected Control Module
2011MY Sedona (VQ)/Production date on or before 1/24/2011 All Federal and California Emissions ECM/TCM
2011~2012MY Sedona (VQ)/Production date after 1/24/2011 California Emissions Only (includes vehicles currently registered in California and the S.177 States of CT, ME, MD, MA, NJ, NY, OR, PA, RI, VT, WA) ECM
NOTE: To assure complete customer satisfaction, always remember to refer to WebDCS Warranty Coverage (validation) Inquiry Screen (Service > Warranty Coverage >Warranty Coverage Inquiry) for a list of any additional campaigns that may need to be performed on the vehicle before returning it to the customer.

File Under: Service Campaign

ECM UPGRADE PROCEDURE

To correct this condition, the ECM/TCM should be reprogrammed using the GDS Download, as described in this bulletin.

UPGRADE EVENT NAME COMMENTS
230.VQ F/L 3.5 11/12MY IUVP IMPROVEMENT (ECM)
  • Vehicles built on or before 1/24/2011 will require both ECM and TCM update.
  • Vehicles built after 1/24/2011 will require only  the ECM update.
231.VQ F/L 3.5 A/T IUVP IMPROVEMENT (TCM)
NOTE:
  • A fully charged battery is necessary before ECM upgrade can take place. It is recommended that the Midtronics GR8-1299 system be used in ECM mode during charging. DO NOT connect any other battery charger to the vehicle during ECM upgrade.
  • All ECM upgrades must be done with the ignition key in the 'ON' position.
  • Be careful not to disconnect any cables connected to the vehicle or GDS during the ECM upgrade procedure
  • DO NOT start the engine during ECM upgrade.
  • DO NOT turn the ignition key 'OFF' or interrupt the power supply during ECM upgrade.
  • When the ECM upgrade is completed, turn the ignition 'OFF' and wait 20 seconds before starting the engine.
  • ONLY use approved ECM upgrade software designated for the correct model, year.
CAUTION: Before attempting an ECM upgrade on any Kia model, make sure to first determine whether the particular model is equipped with an immobilizer security system. Failure to follow proper procedures may cause the PCM to become inoperative after the upgrade and any claims associated with this repair may be subject to chargeback.

ROM ID INFORMATION TABLES

Upgrade event #230 Sedona (VQ)

MODEL MY IMMO ECM P/N ROM ID
PREVIOUS NEW
VQ 3.5L 11MY Yes (+) 39109-3C610 VQAN35*M2**AB8C*
VQAN35*M2**AB8D*
VQAN35*M2**AB8G*
VQAN35*M2**AB8E*
VQAN35*M2**AB8F*		 VQAN35*M2**AD0AS
NO (-) 39109-3C660 VQAN35*S2**AB8C*
VQAN35*S2**AB8D*
VQAN35*S2**AB8E*
VQAN35*S2**AB8G*
VQAN35*S2**AB8F*		 VQAN35*S2**AD0AS
12MY Yes (+) 39109-3C611 VQBN35*M2**AC3A*
VQBN35*M2**AC4B*
VQCN35*M2**AC6A*
VQBN35*M2**AC4A*		 VQBN35*M2**AD0AS
NO (-) 39109-3C661 VQBN35*S2**AC3A*
VQBN35*S2**AC4B*
VQCN35*S2**AC6A*
VQBN35*S2**AC4A*		 VQBN35*S2**AD0AS

Upgrade event #231 Sedona (VQ)

MODEL MY ECM P/N ROM ID
PREVIOUS NEW
VQ 3.5L 11MY 39109-3C610
39109-3C660
39109-3C611
39109-3C661		 TVQ0C35N******KA
TVQ0C35N******KB
TVQ0C35N******KC
TVQ0C35N******KD
TVQ0C35N******KE
TVQ0C35N******KF		 TVQ0C35N******KG

To verify the vehicle is affected, be sure to check the Calibration Identification of the vehicle's ECM ROM ID and reference the  INFORMATION TABLE   as necessary.

  • For Vehicles built on or before 1/24/2011, perform upgrade events # 230 and #231.
  • For Vehicles built after 1/24/2011, perform only upgrade event #230.
NOTE: Events should be performed in succession, when applicable.
  1. Connect the power supply cable to the GDS.
    NOTE: If attempting to perform the ECM upgrade with the power supply cable disconnected from the GDS, be sure to check that the GDS is fully charged before ECM upgrade. If the GDS is not fully charged, failure to perform the ECM upgrade may occur. Therefore, it is strongly recommended that the power supply connector be connected to the GDS.
  2. Connect the USB cable between the VCI and the GDS.
    NOTE: When performing the ECM upgrade using the GDS, wireless communication between the VCI and GDS is not available. Therefore, be sure to connect the USB cable between the VCI and the GDS.
  3. Connect the Main 16-pin DLC cable (GHDM - 241000) to the VCI.

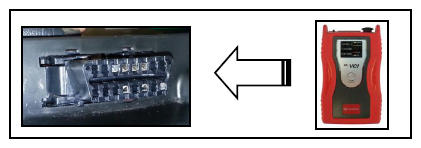

  4. Connect the Main 16-pin DLC cable (GHDM - 241000) to the OBD-II connector, located under the driver's side of the instrument panel.
    G09497991

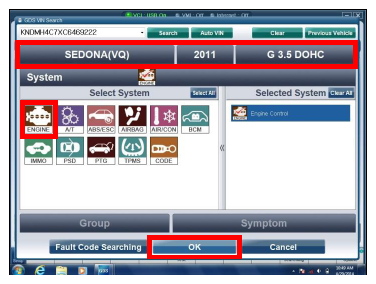

  5. With the ignition key ON, turn ON the VCI and GDS. Access the GDS vehicle identification number (VIN) screen and configure the vehicle using the VIN AUTO DETECT  Function.
  6. Select ENGINE  and click OK  .
    G09497992

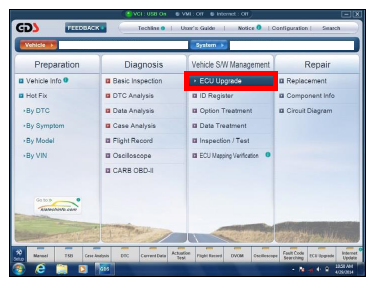

  7. Select ECU Upgrade  .
    G09497993

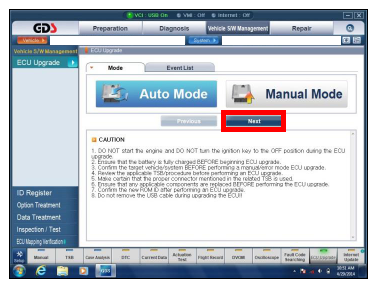

  8. Select Auto Mode  and click Next  .
    G09497994

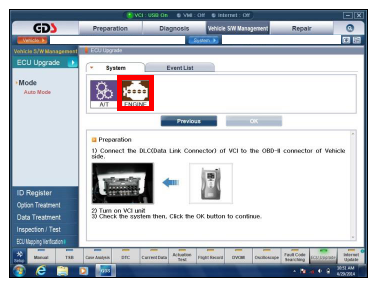

  9. Select ENGINE  and click OK  .
    G09497995

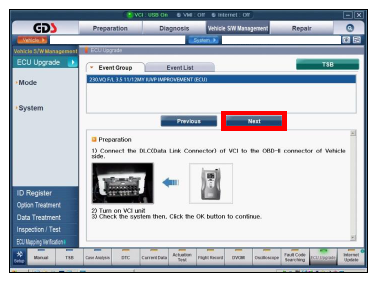

  10. After the system reads the ROM ID, select event: 230.VQ F/L 3.5 11/12MY IUVP IMPROVEMENT  (ECU) and Click on Next  .
    G09497996

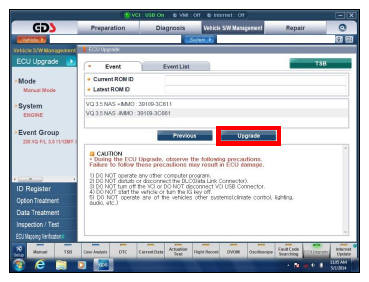

  11. Click on Upgrade  .
    G09497997

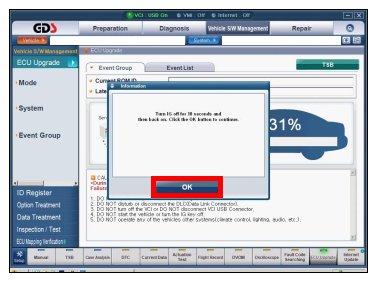

  12. Click OK  on the voltage check screen and cycle the ignition ON and OFF once, as shown. Then, click on OK  .
    G09497998

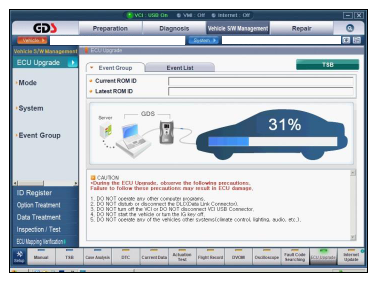

  13. The upgrade will begin and the progress of the upgrade will appear on the bar graph.
    G09497999

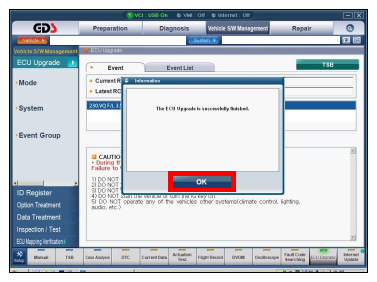

  14. Click OK  on the final screen. Upgrade event #230 is now complete.
    G09498000
  15. Perform steps  6~ 14 again to complete Event #231.VQ F/L 3.5 A/T IUVP IMPROVEMENT (TCM).
    NOTE: The TCM update applies only  to vehicles built prior to 1/24/2011.
  16. Check if any incidental Diagnostic Trouble Codes DTC(s) have been created by the upgrade process; clear any DTC(s) that may be present.
  17. Start the engine to confirm proper vehicle operation.
    NOTE: Once update events are complete, proceed to Page 9 to perform the TCM ADAPTIVE LEARNING VALUES  Procedure (only  for vehicles with TCM update).
    CAUTION: Before attempting an ECM upgrade on any Kia model, make sure to first determine whether the particular model is equipped with an immobilizer security system. Failure to follow proper procedures may cause the PCM to become inoperative after the upgrade and any claims associated with this repair may be subject to chargeback.
    NOTE: Do NOT attempt to perform a Manual Mode upgrade unless Auto Mode fails. Always follow the instructions given on the GDS in either Auto or Manual mode. See table for Manual Mode passwords.

* MANUAL MODE ECM UPGRADE PASSWORDS

* Do NOT perform Manual Mode ECM upgrade unless Auto Mode fails.

Upgrade event #230 Sedona (VQ)

MENU PASSWORD
VQ 3.5 NAS +IMMO: 39109-3C610 3610
VQ 3.5 NAS -IMMO: 39109-3C660 3660
VQ 3.5 NAS +IMMO: 39109-3C611 3611
VQ 3.5 NAS -IMMO: 39109-3C661 3661

Upgrade event #231 Sedona (VQ)

MENU PASSWORD
VQ F/L 3.5 AT: 39109-3C610/660/611/661 3661
  • For Vehicles built on or before 1/24/2011, perform upgrade events # 230 and #231.
  • For Vehicles built after 1/24/2011, perform only upgrade event #230.
NOTE: Events should be performed in succession, when applicable.
  1. Within the ECM Upgrade  screen, select Manual Mode  in the left column, select Engine/TCM  and then select either Upgrade Event 230 or 231 (perform events in succession, if applicable)  . Select the appropriate control unit part number by referring to the ROM ID INFORMATION TABLE , and click OK  .
  2. Enter the appropriate password from the table on above and click OK  .
  3. Upgrade will begin and the progress of the upgrade will appear on the bar graph.
  4. Following the guidelines displayed on the screen during upgrade procedure, cycle the ignition OFF ↔ ON for ten (10) seconds.
  5. Check if any incidental Diagnostic Trouble Codes DTC(s) have been created by the upgrade process; clear any DTC(s) that may be present.
  6. Start the engine to confirm proper vehicle operation.
    NOTE: Once update events are complete, proceed to Page 9 to perform the TCM ADAPTIVE LEARNING VALUES  Procedure (only  for vehicles with TCM update).

TCM ADAPTIVE LEARNING VALUES

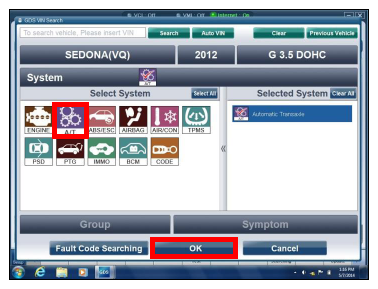

  1. Select A/T  Menu and click OK  .
    G09498001

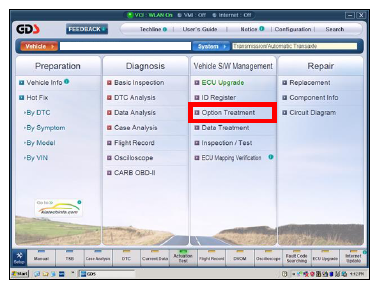

  2. From the main screen, select Option Treatment  .
    G09498002

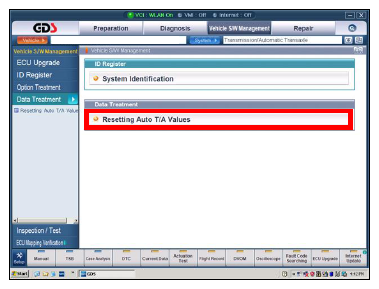

  3. Select Resetting Auto T/A Values  .
    G09498003

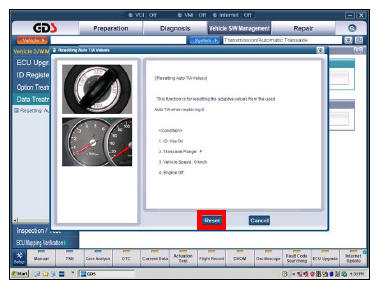

  4. Follow the on screen instructions and Select Reset  .
    G09498004
  5. Start the engine to confirm proper vehicle operation.

For California, Connecticut, Maine, Maryland, Massachusetts, New Jersey, Oregon, Pennsylvania, Rhode Island, Vermont and Washington:

VEHICLE EMISSION RECALL - PROOF OF CORRECTION CARD

A Vehicle Emission Recall - Proof of Correction card must be filled out for all vehicles registered in California, Connecticut, Maine, Maryland, Massachusetts, New Jersey, Oregon, Pennsylvania, Rhode Island, Vermont and Washington. Residents of these states, who own an affected vehicle, will be required to possess a Vehicle Emission Recall - Proof of Correction card as evidence of voluntary service campaign completion, when they apply for vehicle registration renewal.

WHAT TO DO WITH THE CARD:

The Vehicle Emission Recall - Proof of Correction card must  be completed by the Dealership's Service Manager using a permanent ink pen. A fine point pen is recommended. When filling in the information, copy the information directly from the vehicle, not  the repair order. ALL INFORMATION MUST BE PRINTED AND NEAT.

NOTE: DO NOT COMPLETE THE CARD UNLESS THE SERVICE CAMPAIGN WORK IS COMPLETED.

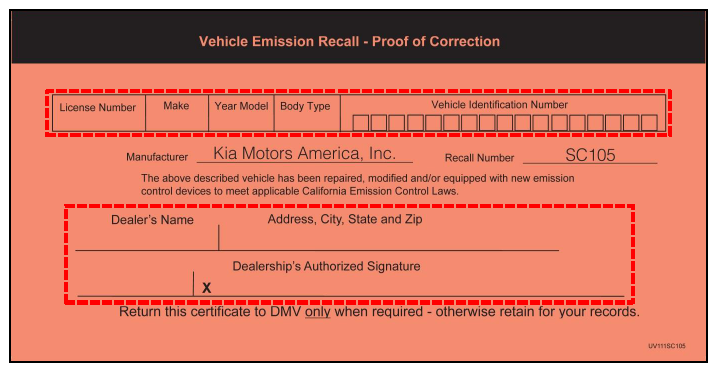

The copy of the card shown below indicates the areas to be filled in. Each area must  be filled in.

G09498005

FILLING OUT AND APPLYING THE CAMPAIGN COMPLETION LABEL

The dealer must fill in the Dealer Code and Date information fields on the Campaign Completion Label. Once complete, affix the campaign completion label under the hood of the vehicle, as shown on Page 12.

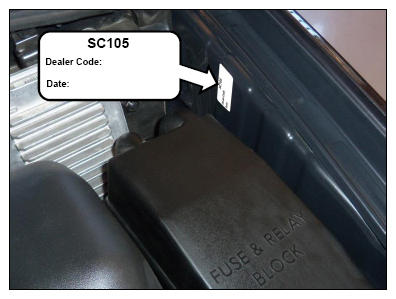

For vehicles within the states that require the proof of correction card, apply the SC105 Campaign Completion Label onto the body in the area next to fuse box, as shown.

NOTE: Be sure to clean the mounting surface to ensure proper label adhesion.
G09498006

REQUIRED PARTS

Part Name Part Number Figure
Campaign Sticker UV110 SC105
G09498007
Vehicle Emission Recall-Proof of Correction Card UV111 SC105
G09498008

AFFECTED VEHICLE PRODUCTION RANGE

Model MY Production Date Range
Sedona (VQ) 2011 From March 3, 2010 through February 14, 2011
Sedona (VQ) 2012 From February 7, 2011 through August 14, 2012

WARRANTY CLAIM INFORMATION

Claim Type Causal P/N Qty. N Code C Code Repair Description Labor Op Code Op Time Related Parts Qty.
R 39109 3C611 0 N99 C99 (SC105) ECM ROM ID Inspect 140044R2(1) 0.2 M/H N/A 0
R 39109 3C611 0 N99 C99 (SC105) ECM/TCM Upgrade (Production date on or before 1/24/2011) 140044R0(1) 0.3 M/H N/A 0
R 39109 3C661 0 N99 C99 (SC105) ECM Upgrade (Production date after 1/24/2011) 140044R1(1) 0.3 M/H N/A 0
(1) Only one labor op code can be claimed.
NOTE: To assure complete customer satisfaction, always remember to refer to WebDCS Warranty Coverage (validation) Inquiry Screen (Service > Warranty Coverage >Warranty Coverage Inquiry) for a list of any additional campaigns that may need to be performed on the vehicle before returning it to the customer.
