Wheel Runout

Jack up the vehicle and support it with jack stands.
Measure the wheel runout with a dial indicator as illustrated.
Replace the wheel if the wheel runout exceeds the limit.

WHEEL RUNOUT SPECIFICATION

Limit		Radial	Axial
Runout mm (in)	Steel	0.7 (0.028)	1.1 (0.043)
Runout mm (in)	Aluminum	0.3 (0.012)	0.3 (0.012)

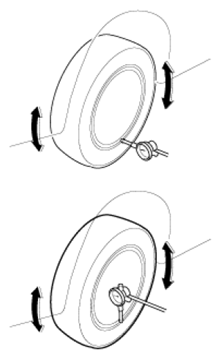

Fig 1: Measuring Wheel Runout

G07389222

Courtesy of KIA MOTORS AMERICA, INC.
