Components (2)

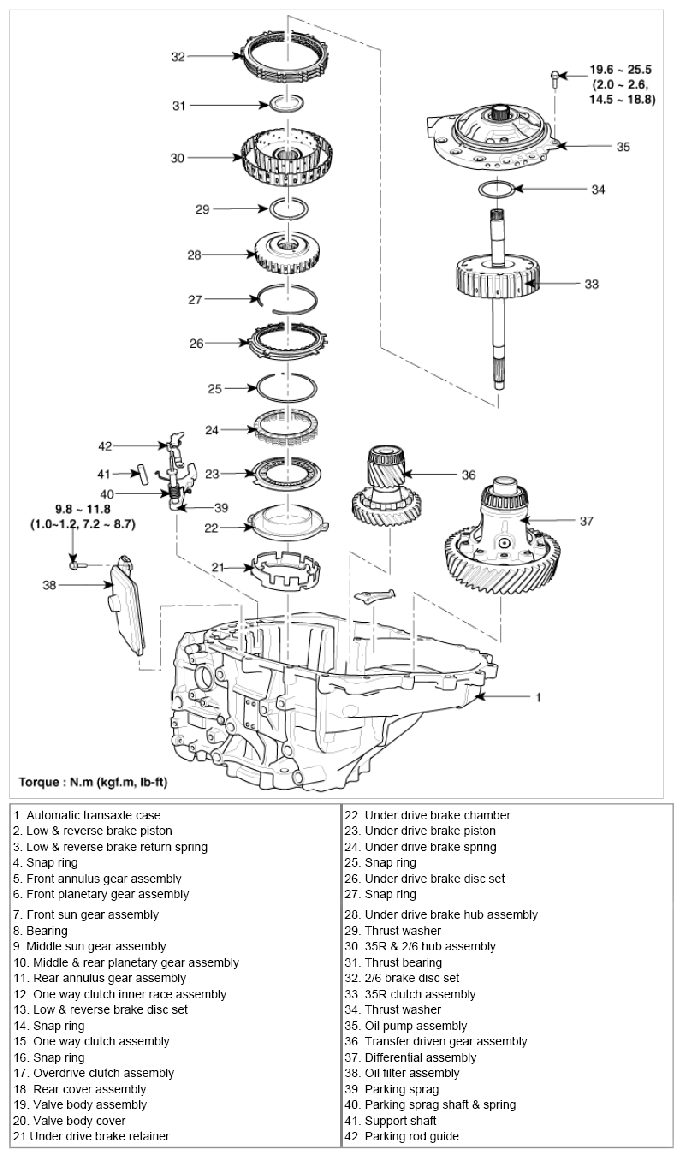

Fig 1: Exploded View Of Automatic Transaxle Components With Torque Specifications (2 Of 2)
G07389023Courtesy of KIA MOTORS AMERICA, INC.
