Alarm Module: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad. .

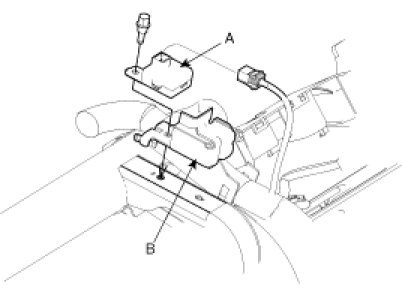

3. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) with bracket (B) located on the cowl cross bar. after loosening the shear bolt.

NOTE:
- Punch the shear bolt using a centering punch.
- And drill its head off with a drill bit.
- Be careful not to damage the SMARTRA unit.




4. Installation is the reverse of removal procedure.

NOTE:
- Tighten the shear bolt until the bolt head break off.
