Fuse: Locations

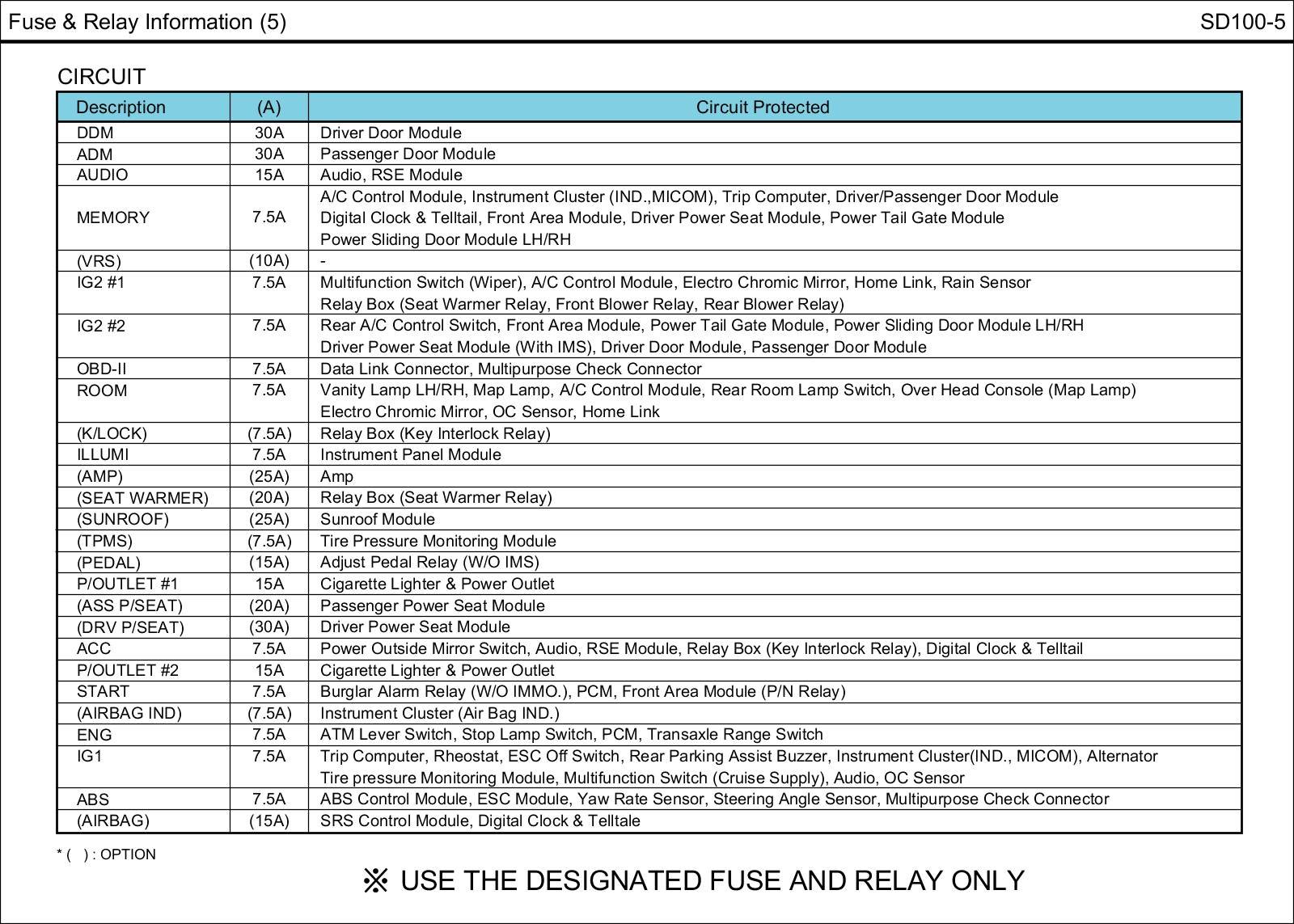

Fuse & Relay Information

Front Area Module (FAM) View:

Front Area Module (FAM) Circuit Details:

Front Area Module (FAM) View:

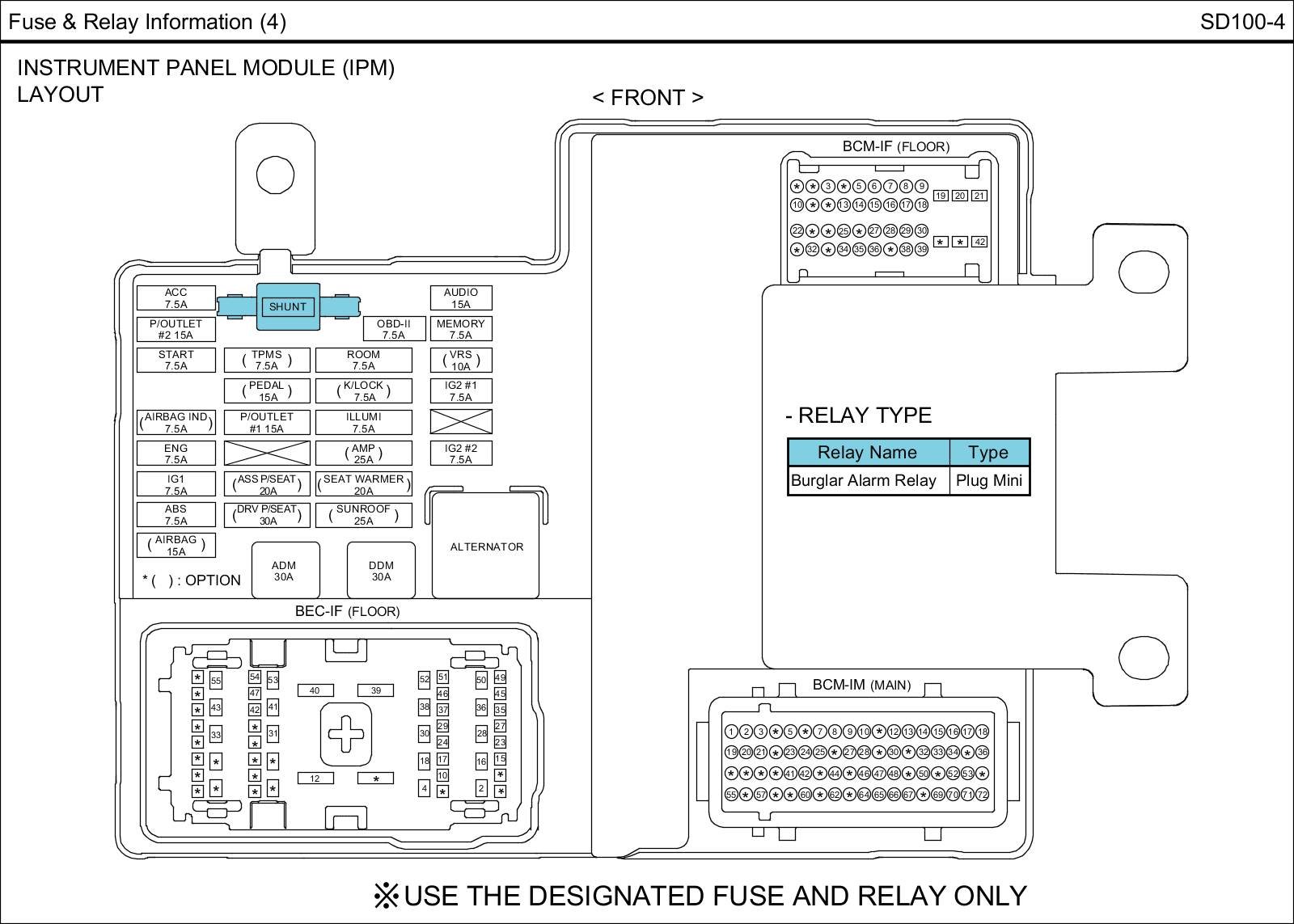

Instrument Panel Module (IPM) View:

Instrument Panel Module (IPM) Circuit Details:

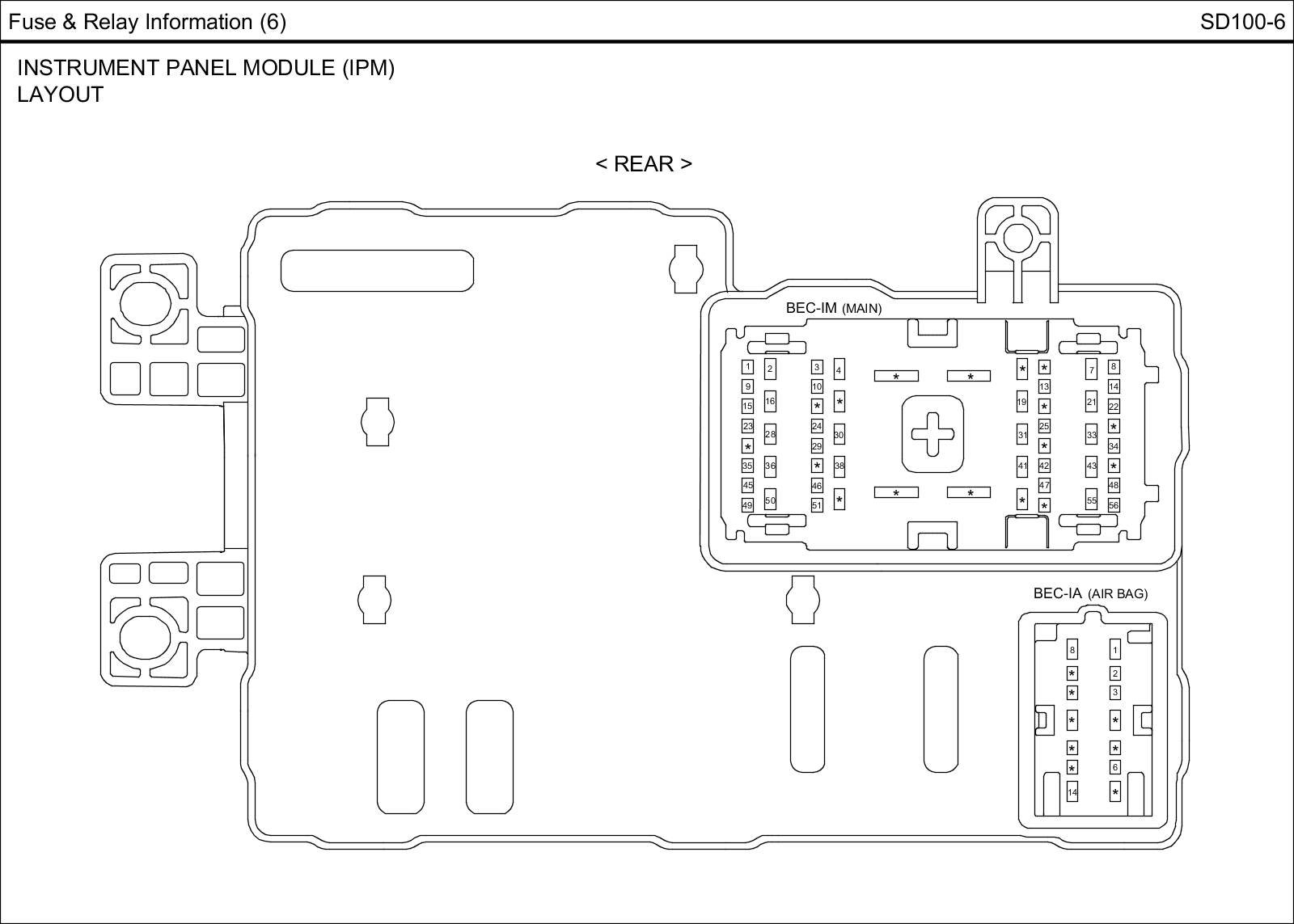

Instrument Panel Module (IPM) View:

Rear Area Module (RAM) View:

Rear Area Module (RAM) Circuit Details:

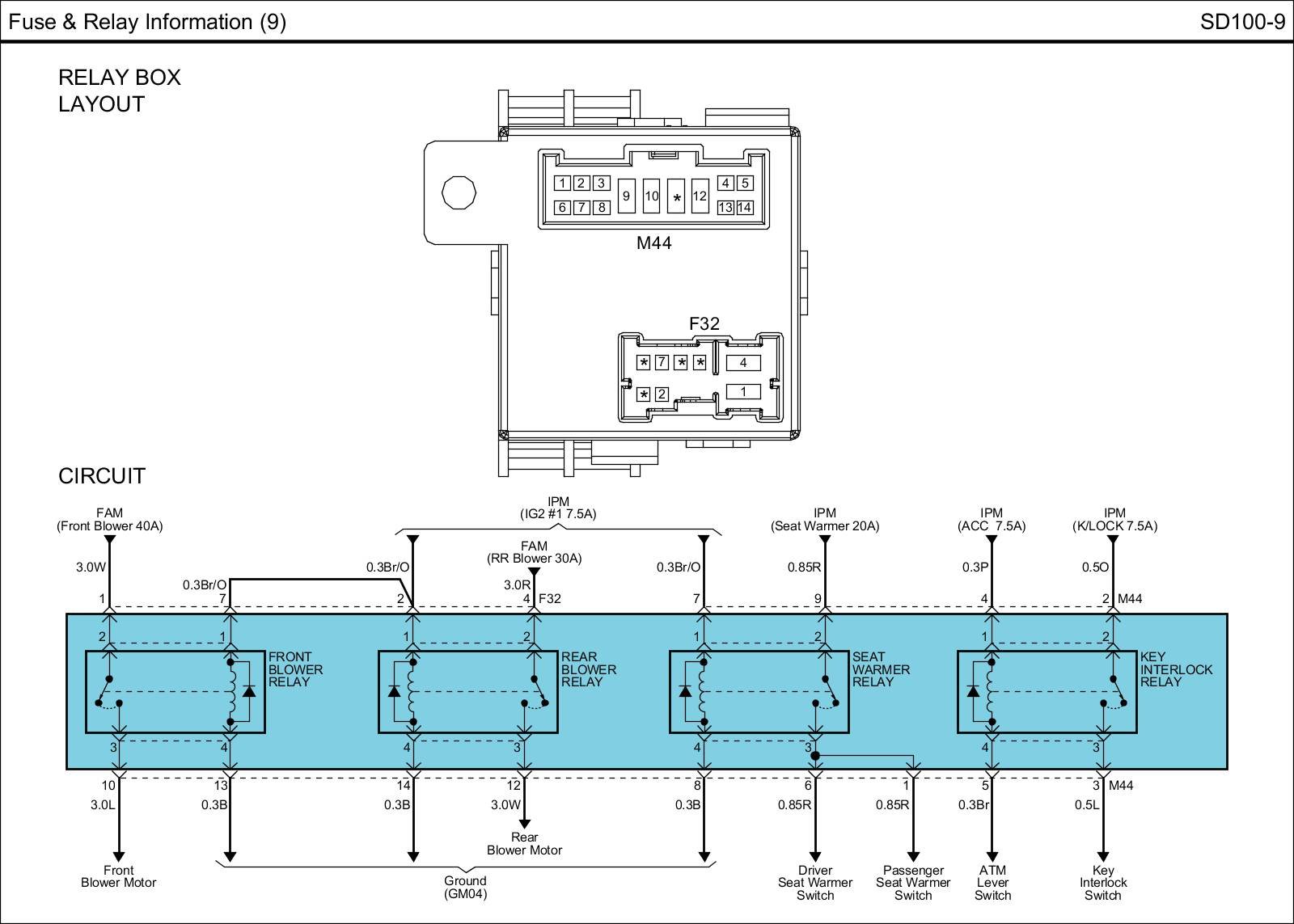

Relay Box View:
