System Specifications

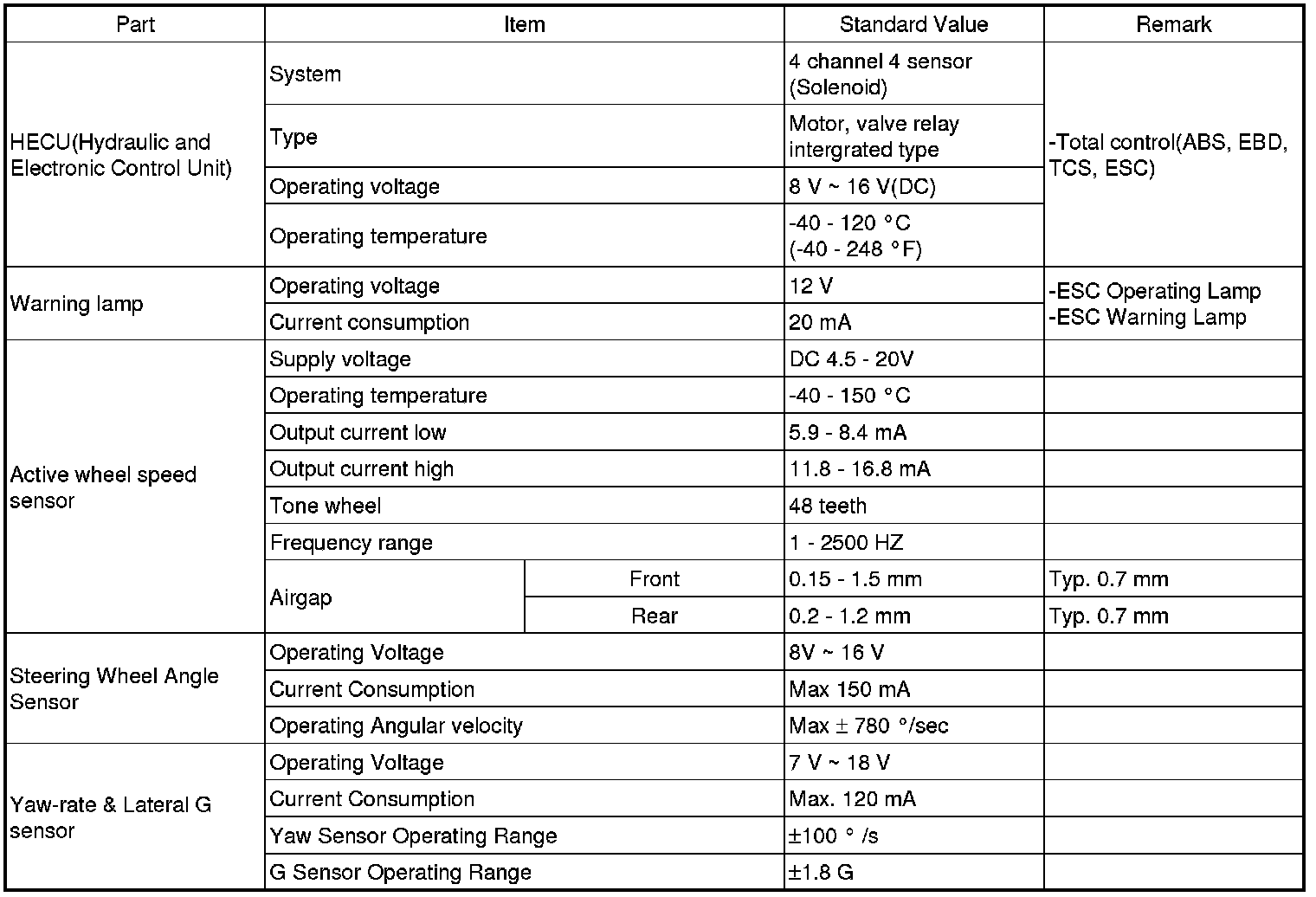

Specifications





O.D=Outer Diameter
I.D=Inner Diameter

NOTE:
ABS : Anti-lock Brake System
ESC : Electronic Stability Control

Specification (ABS)





Specification (ESC)

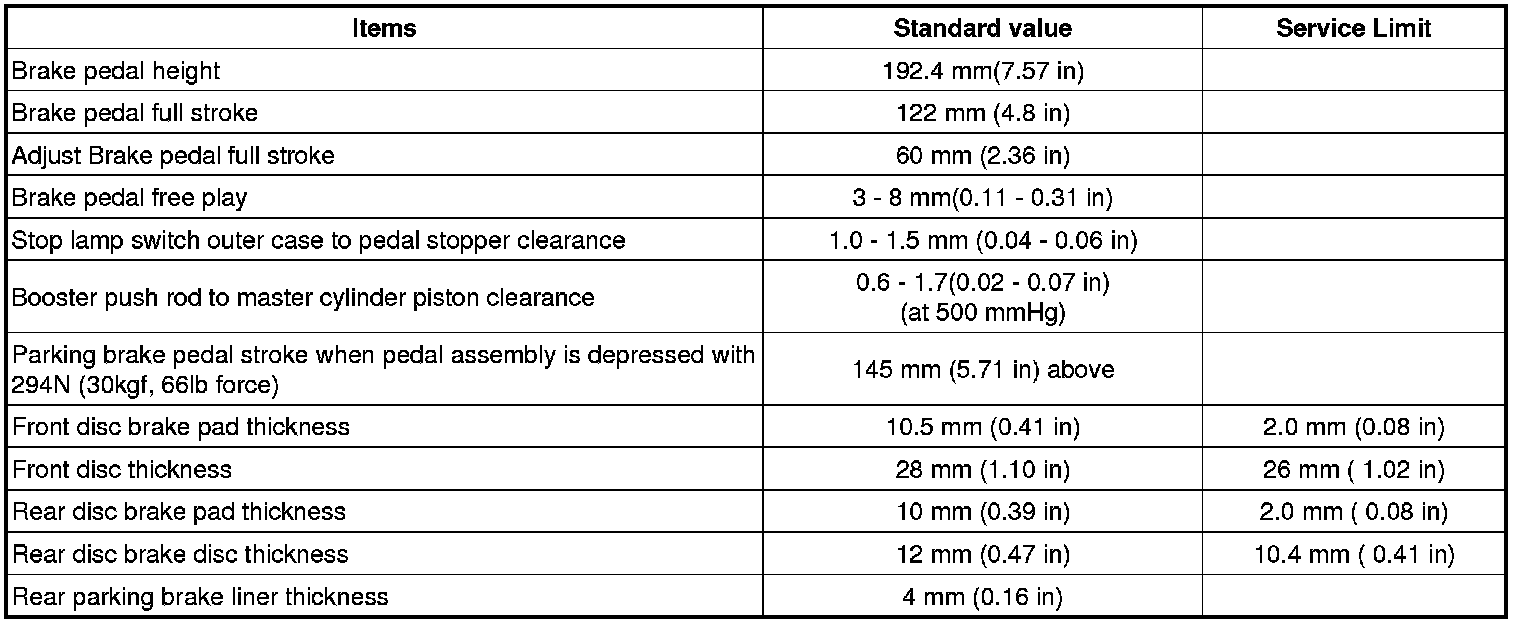

Service Standard

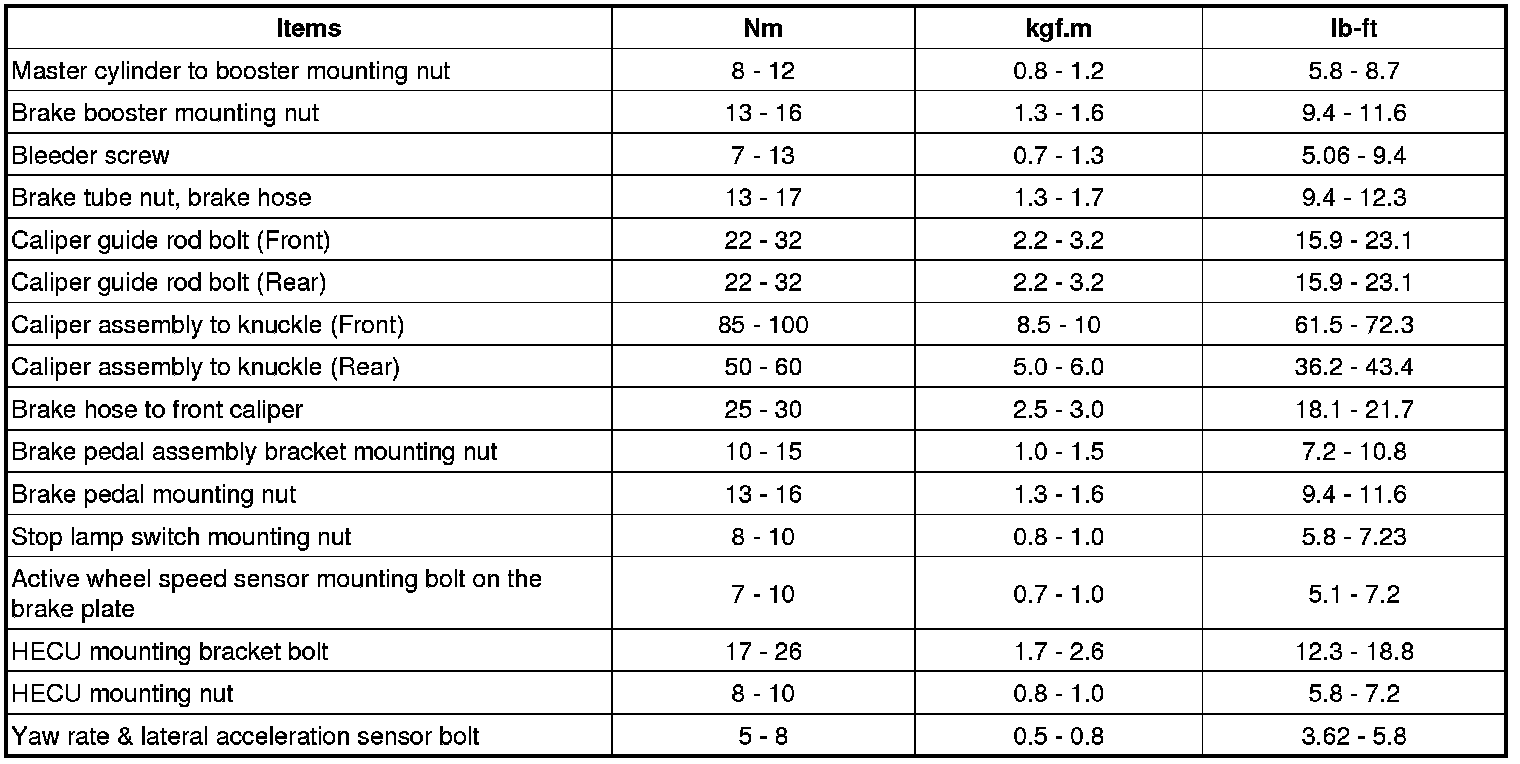

Tightening Torque






Lubricant
