Engine Control Module





ECM Terminal And Input/Output signal

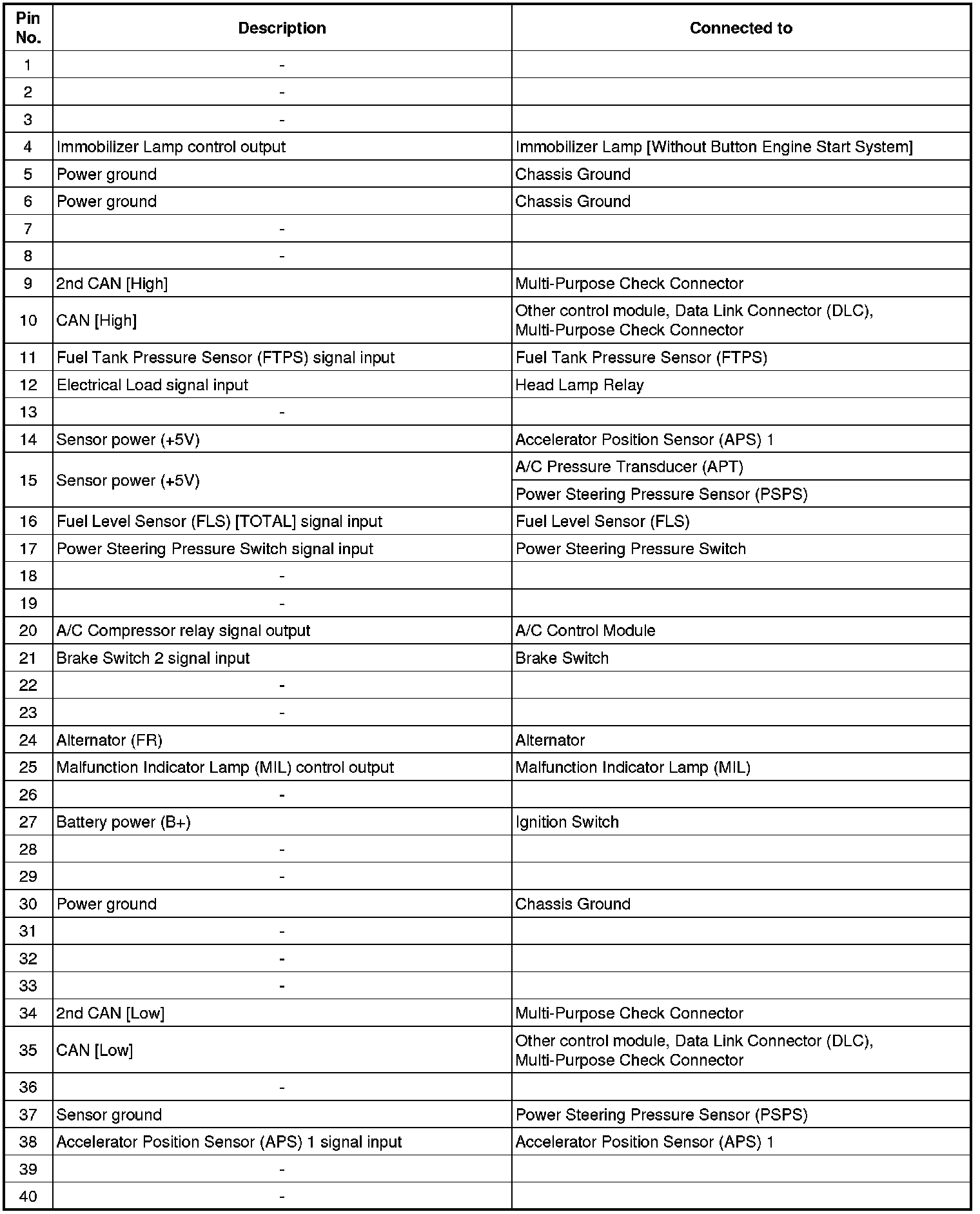

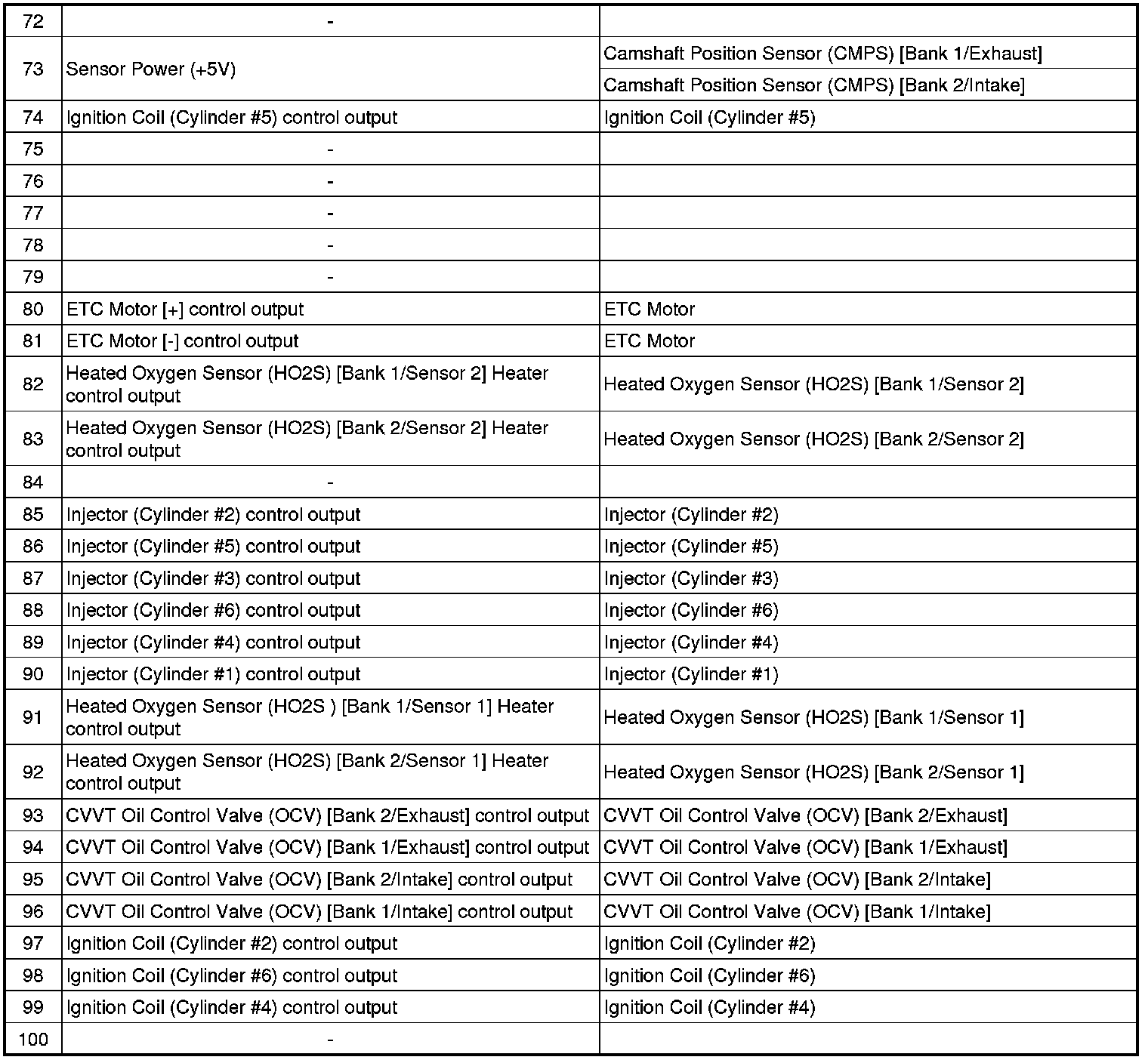

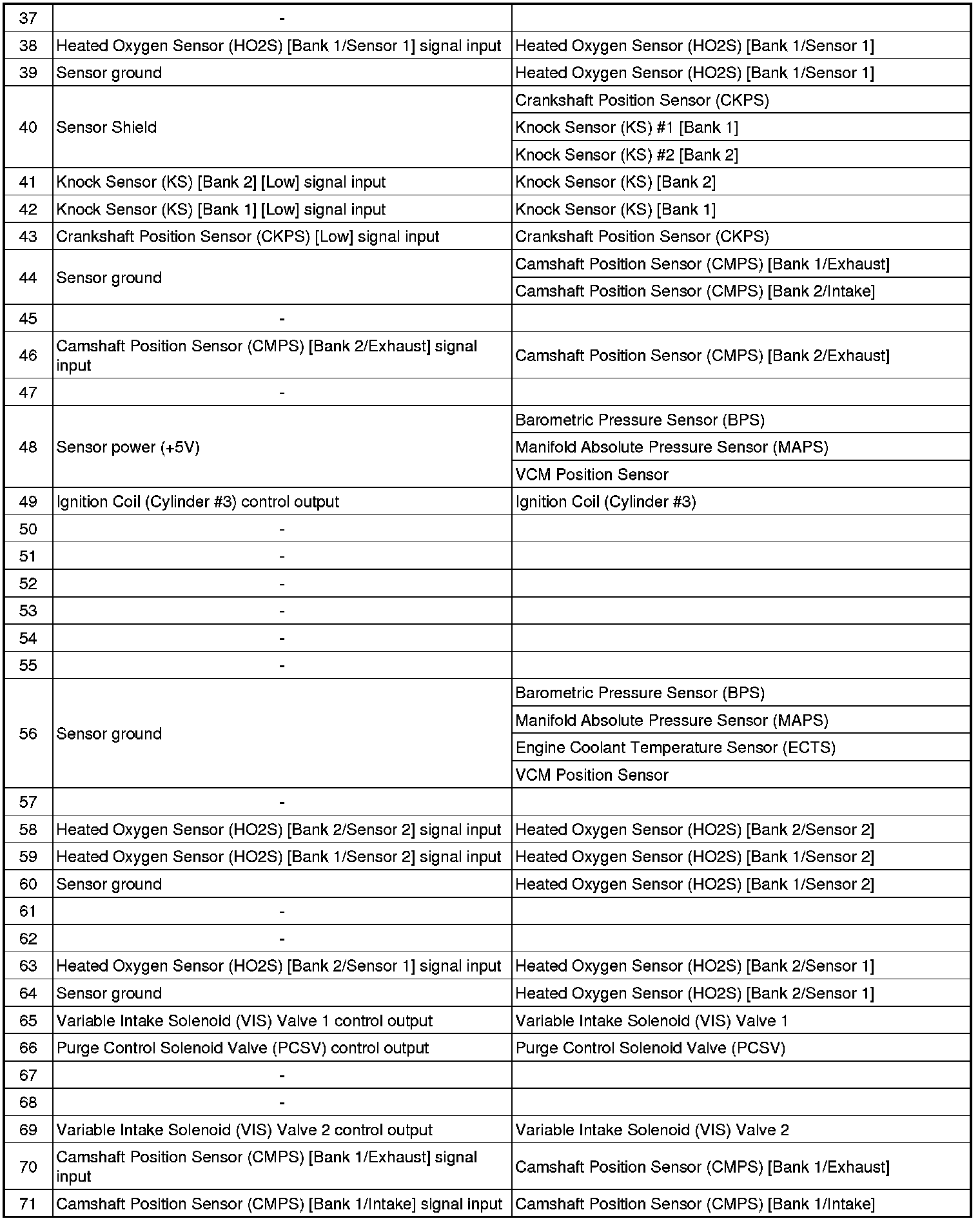

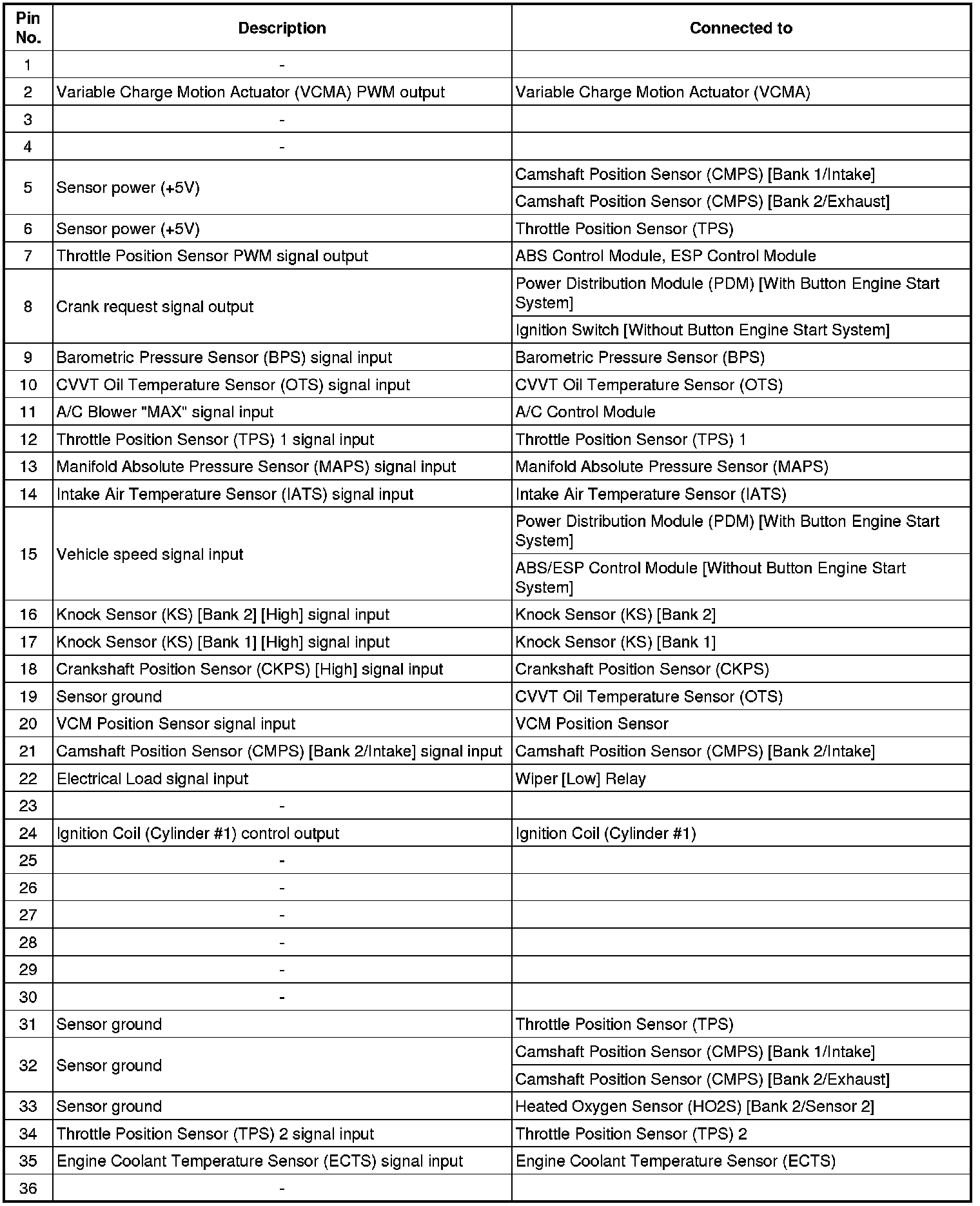

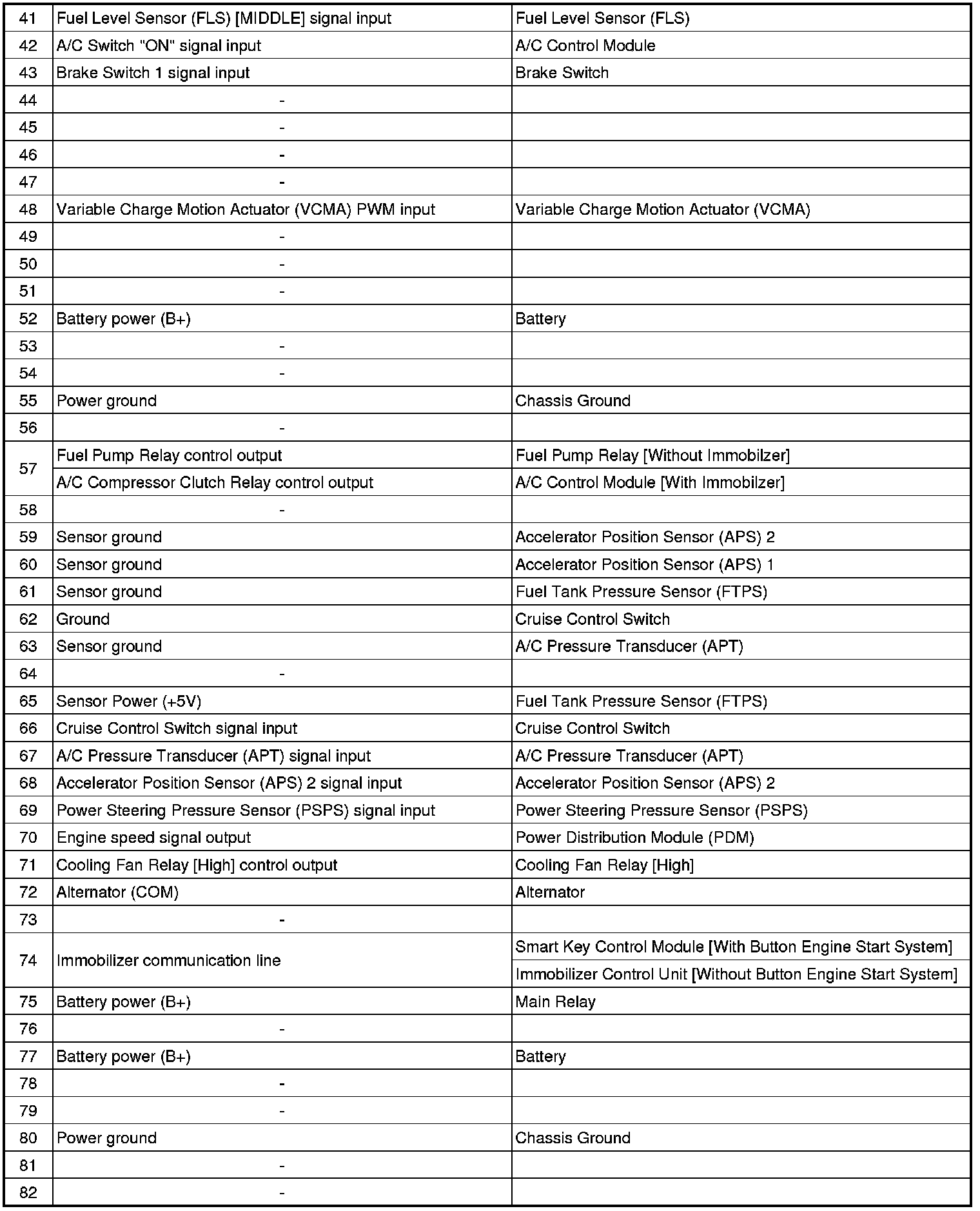

ECM Terminal Function
Connector [CGL-A]













Connector [CLG-B]

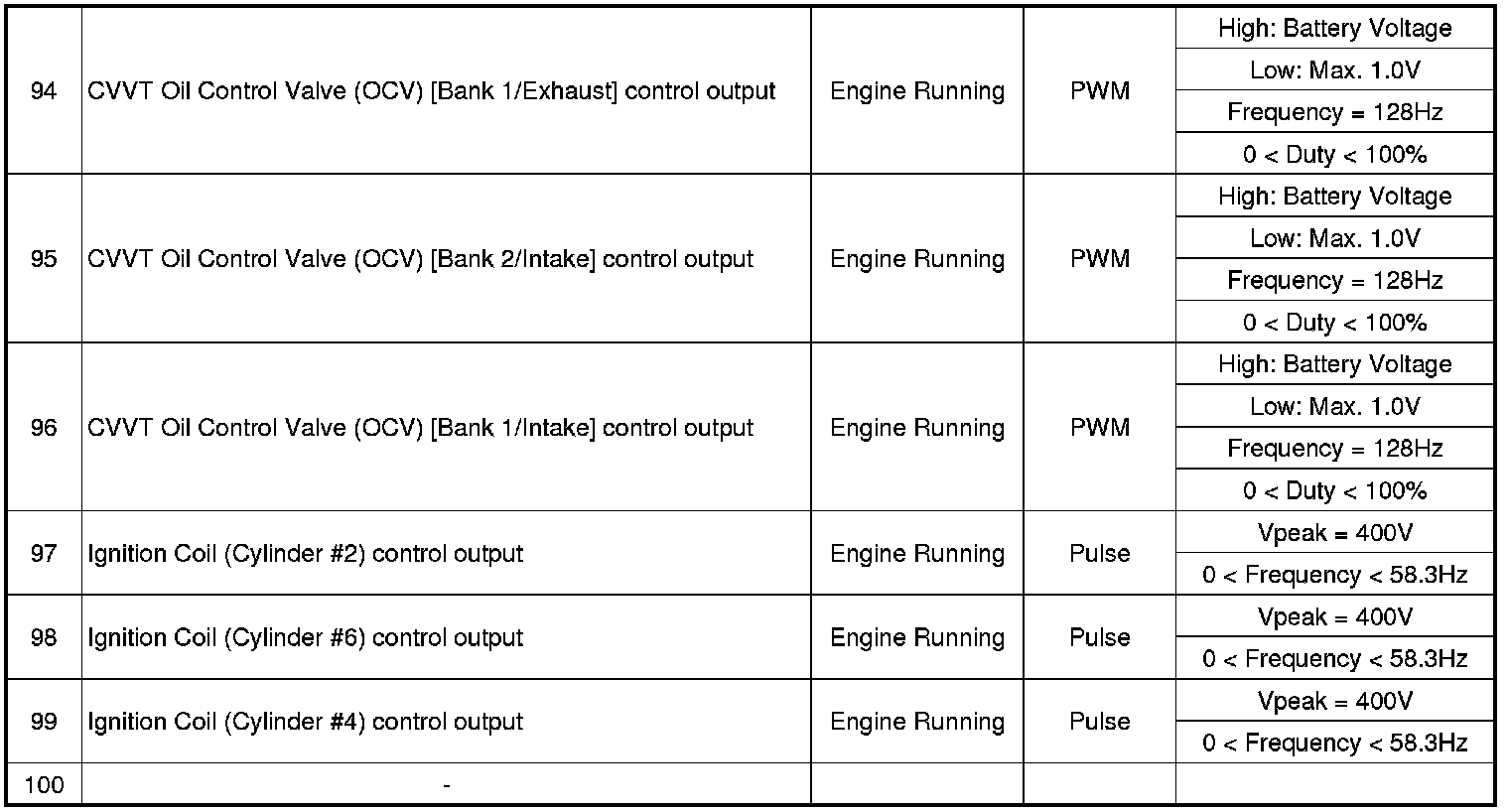

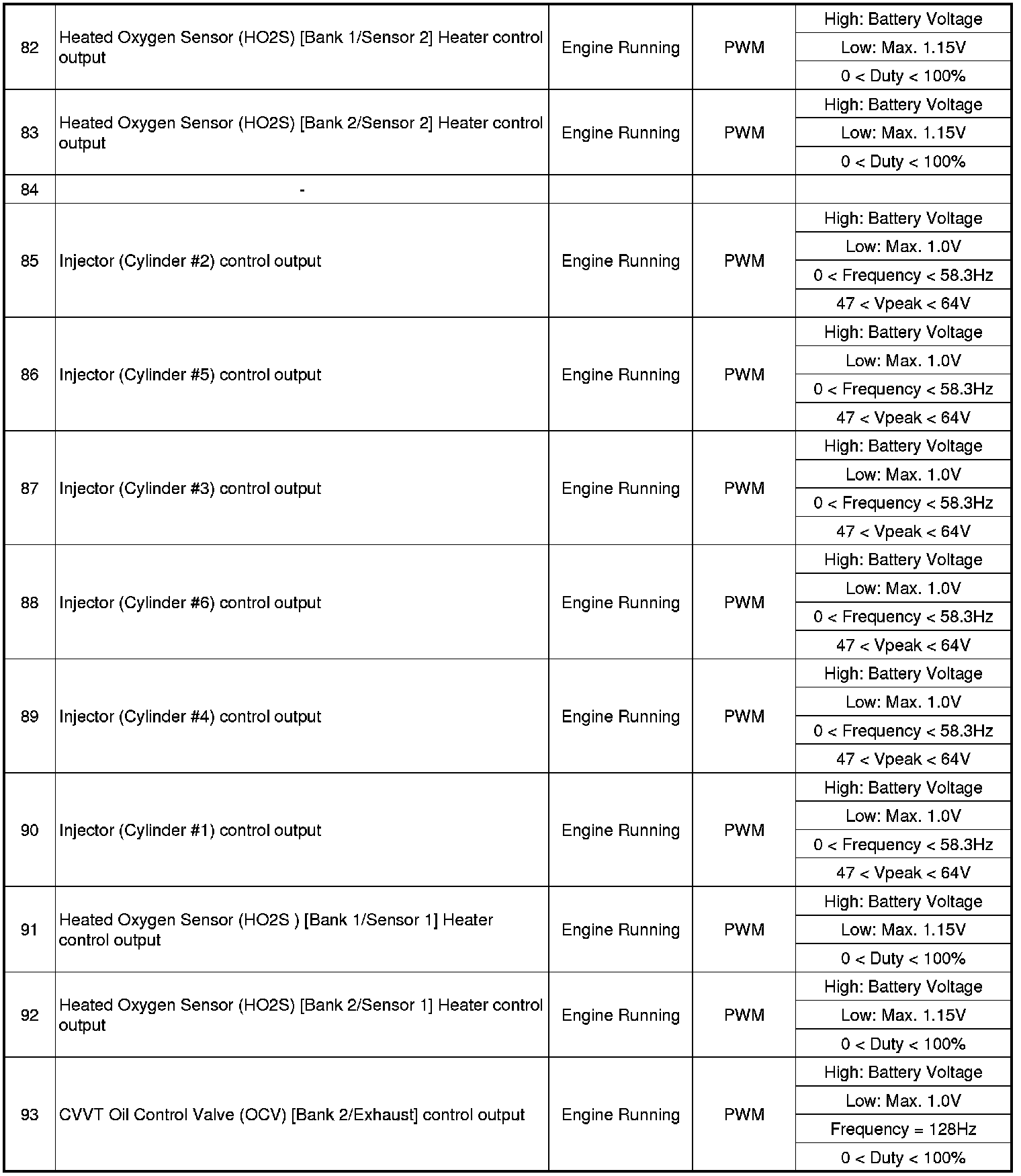

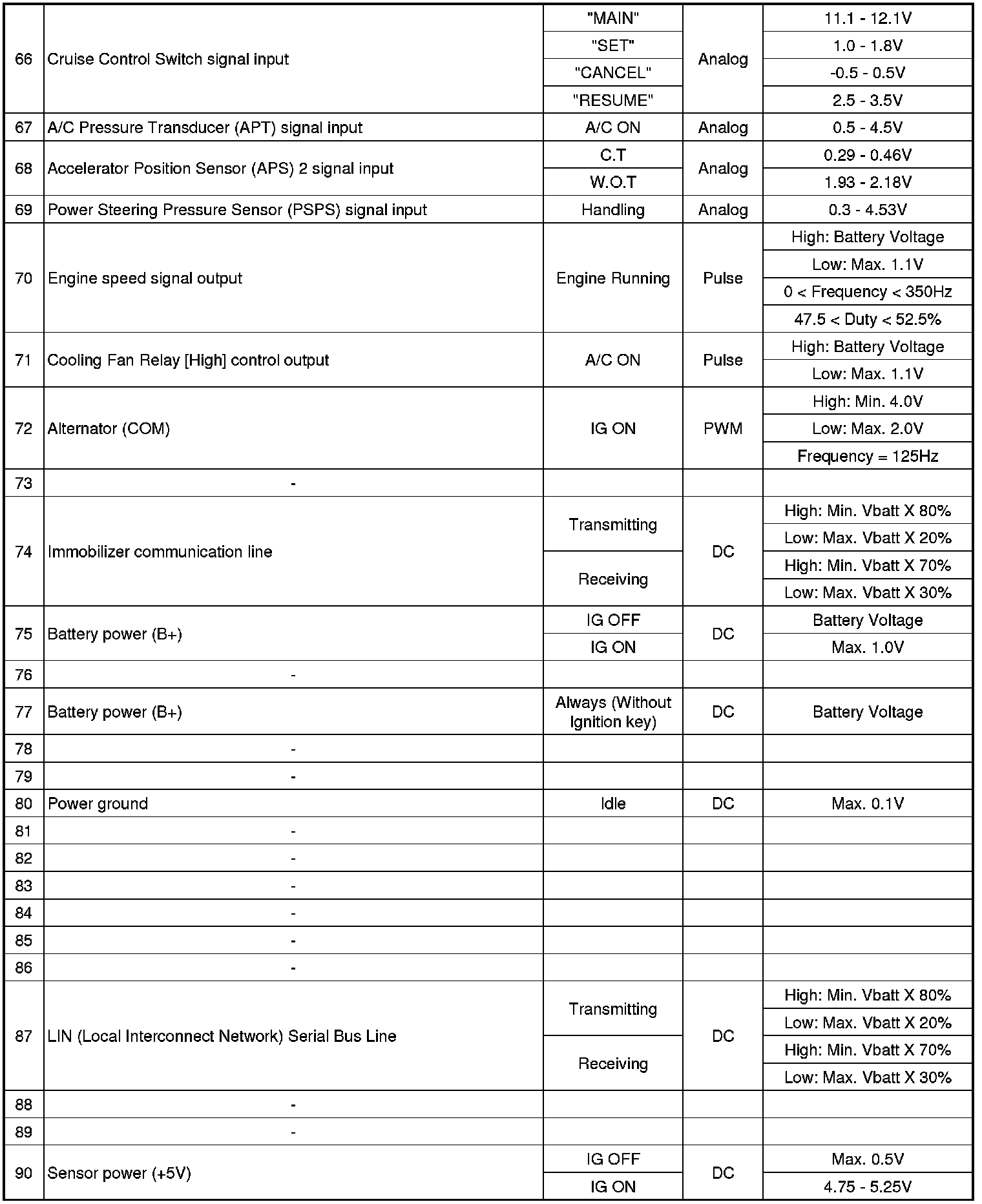

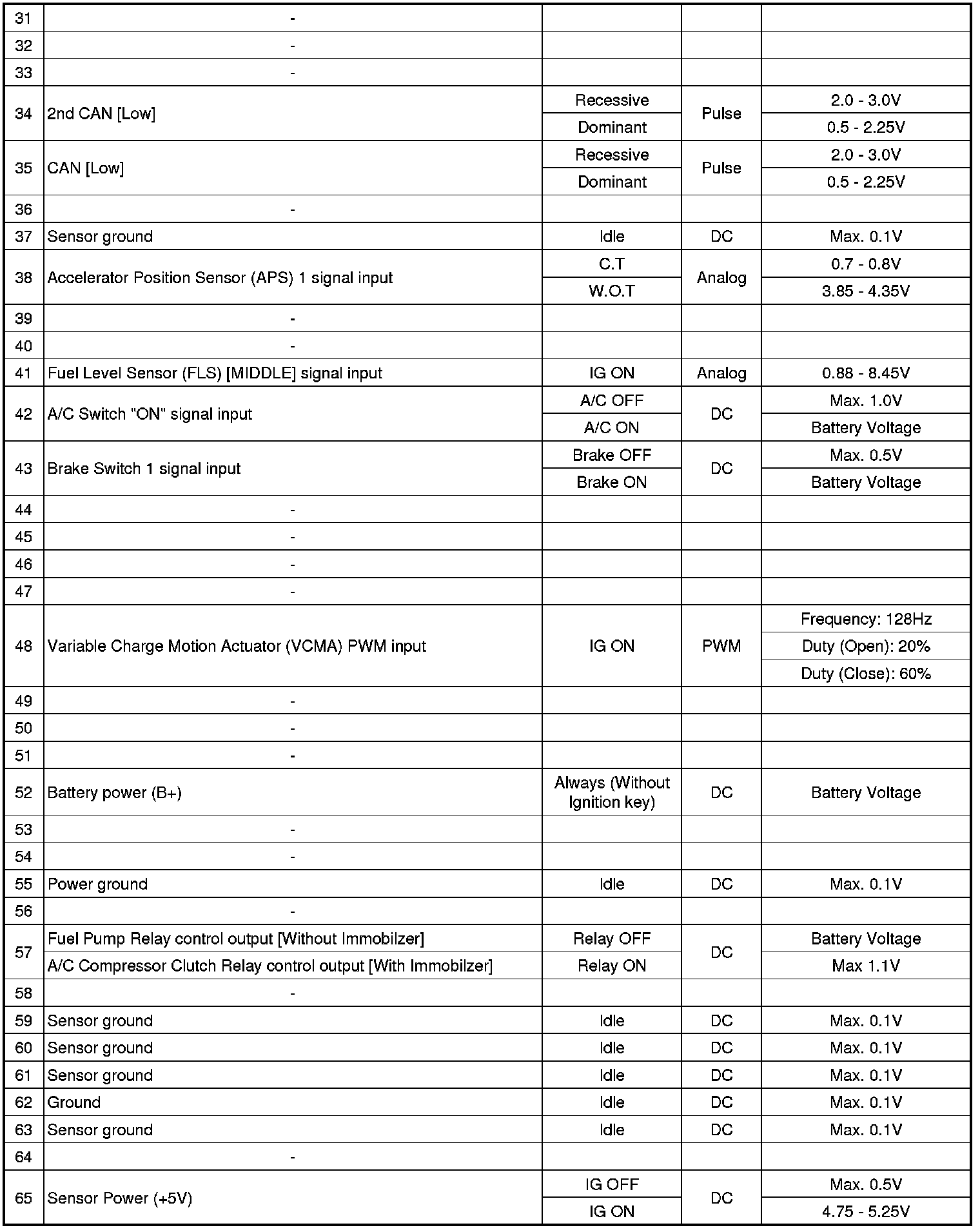

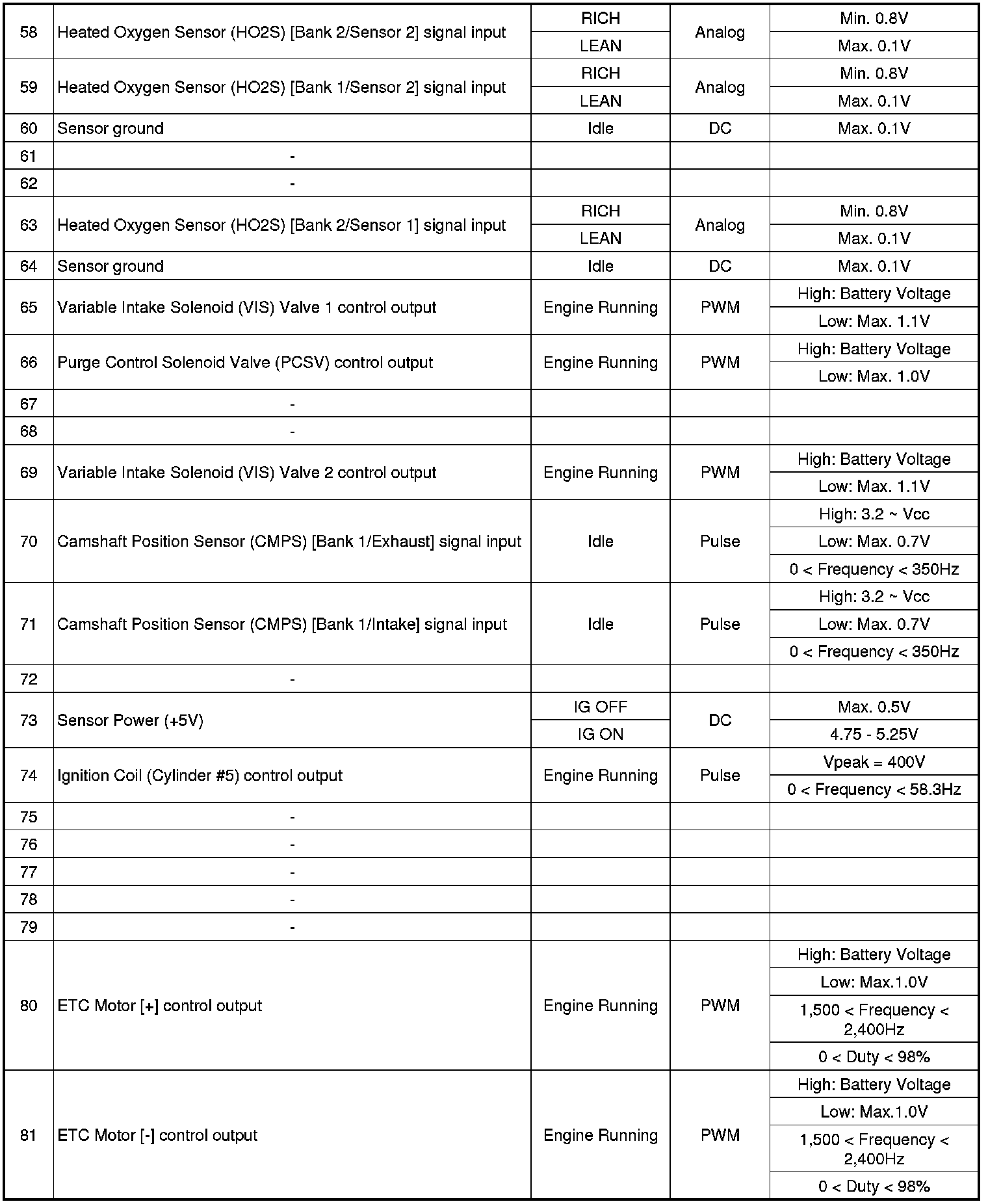

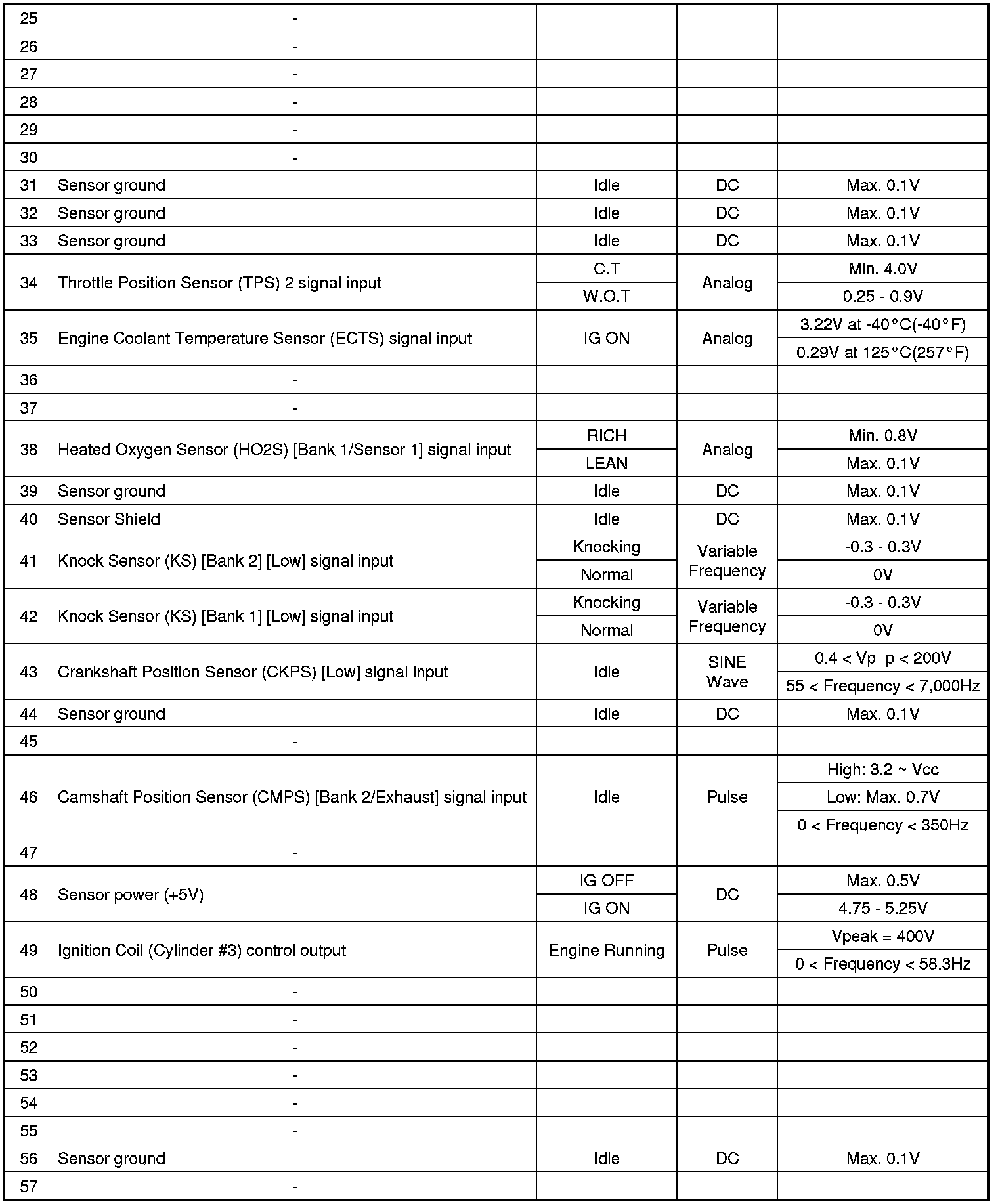

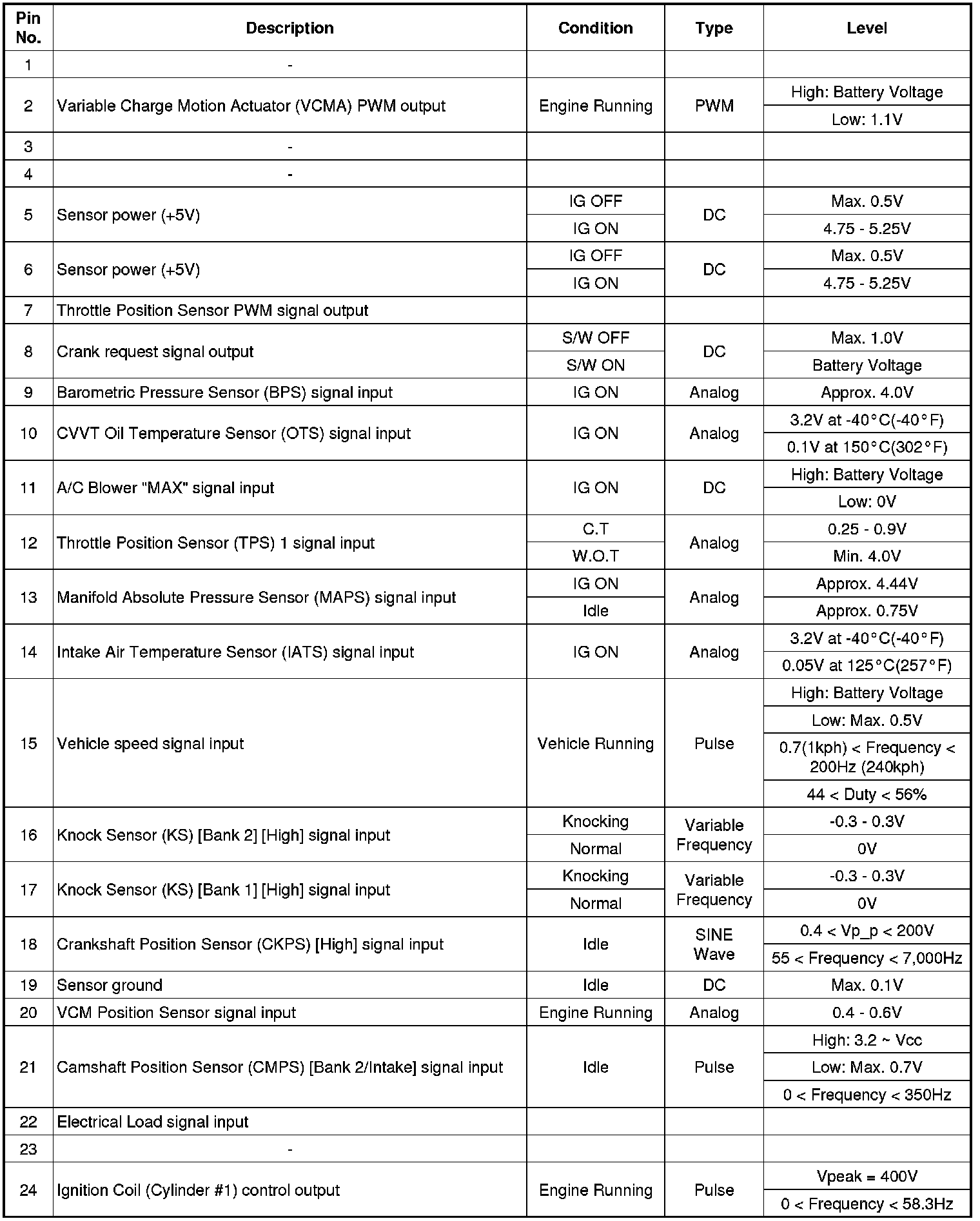

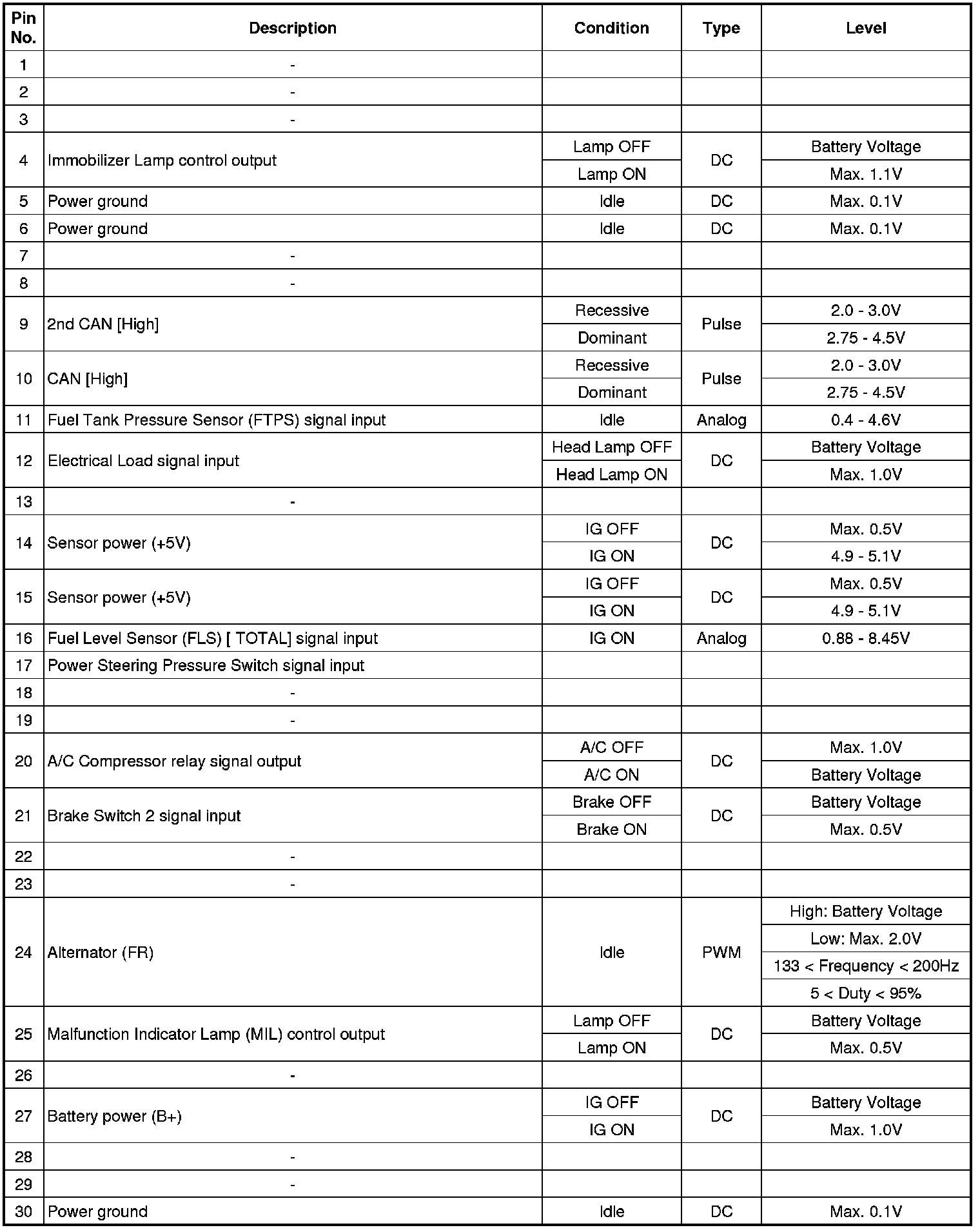

ECM Terminal Input/Output Signal
Connector [CGL-A]

















Connector [CLG-B]






















Circuit Diagram
