Fuse: Locations

Fuse & Relay Information

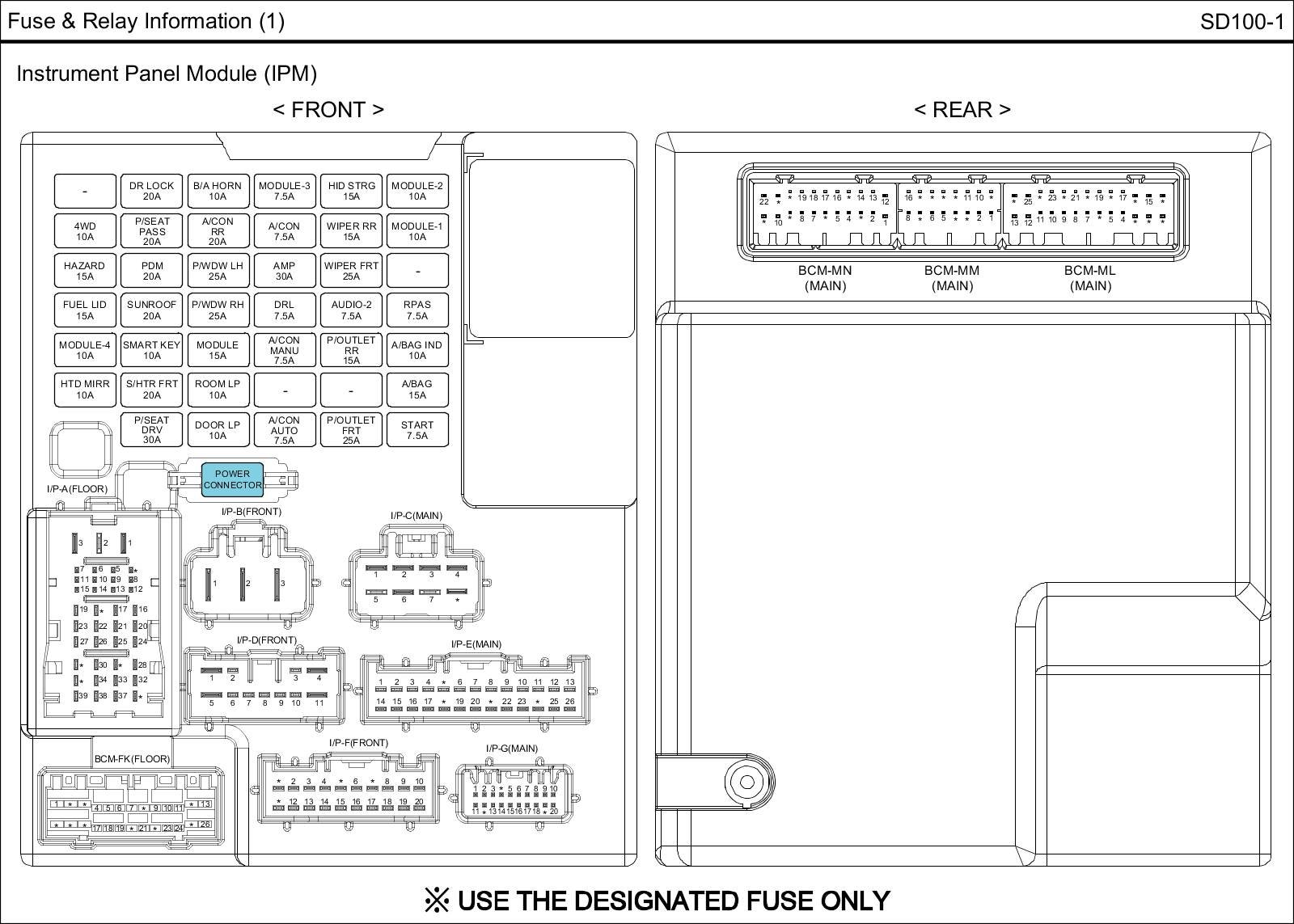

Instrument Panel Module (IPM) View:

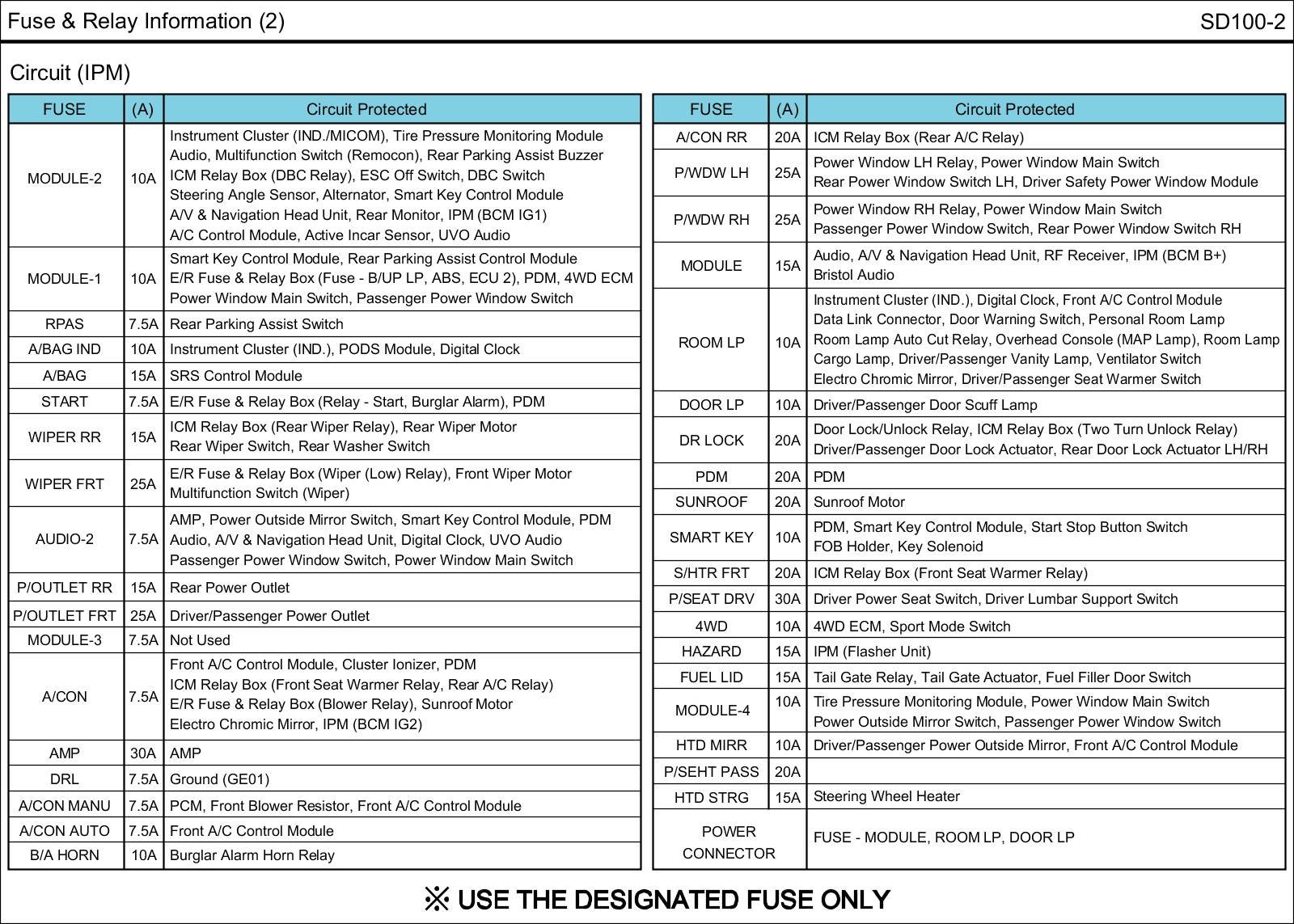

Instrument Panel Module (IPM) Circuit Details:

E/R Fuse & Relay Box View:

E/R Fuse & Relay Box Circuit Details:

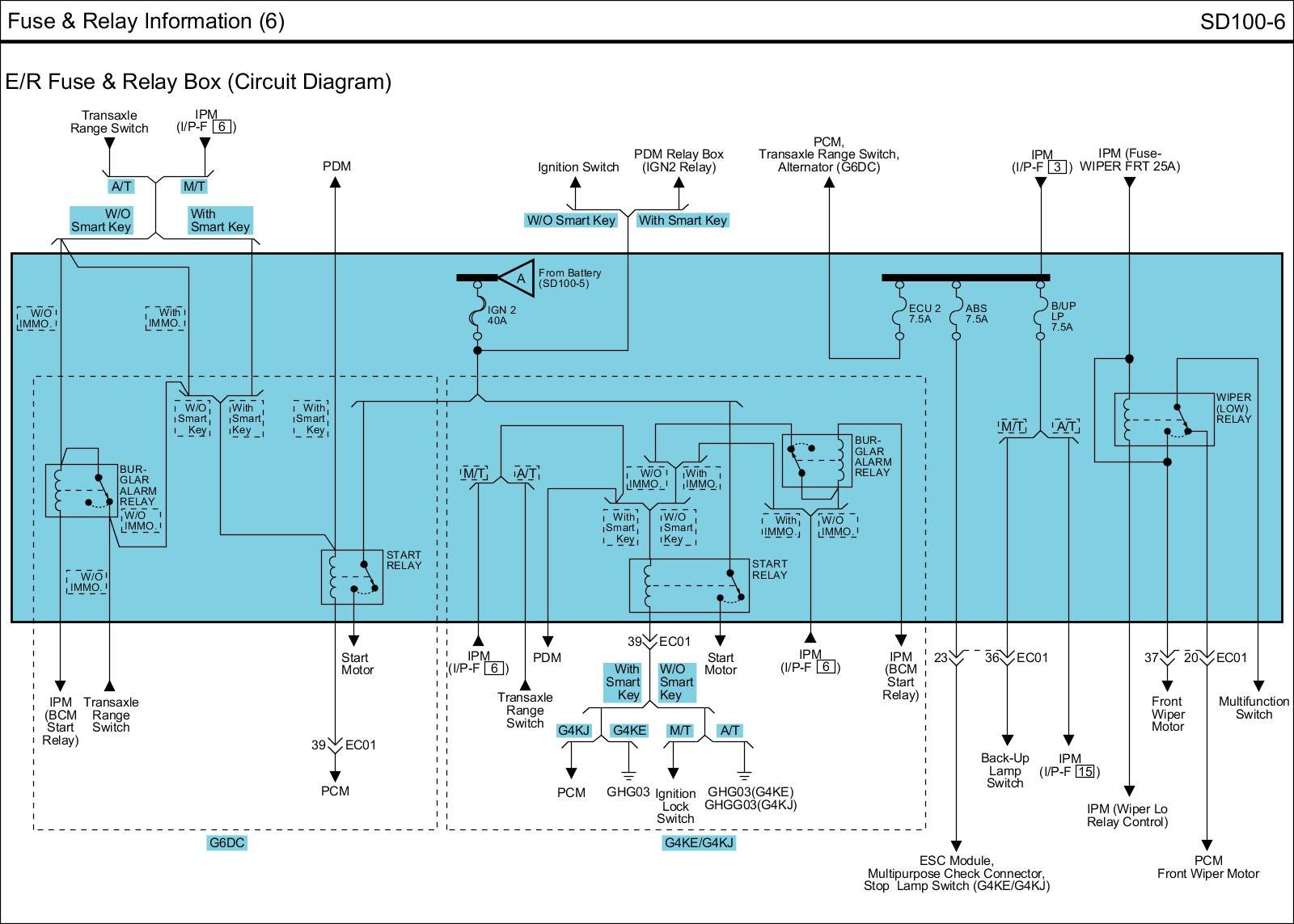

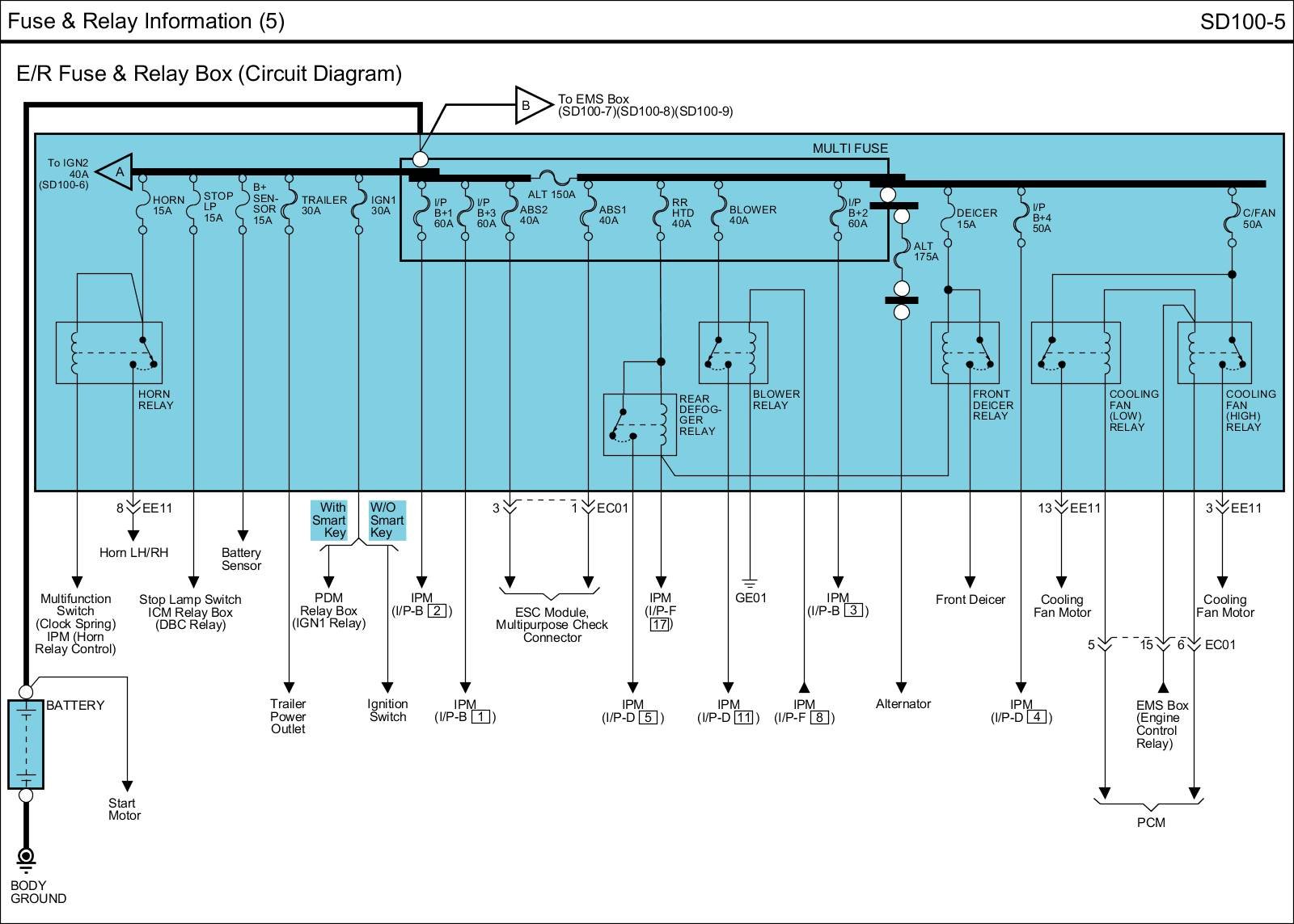

E/R Fuse & Relay Box (Circuit Diagram) View:

E/R Fuse & Relay Box (Circuit Diagram) View:

EMS Box (Circuit Diagram) View:

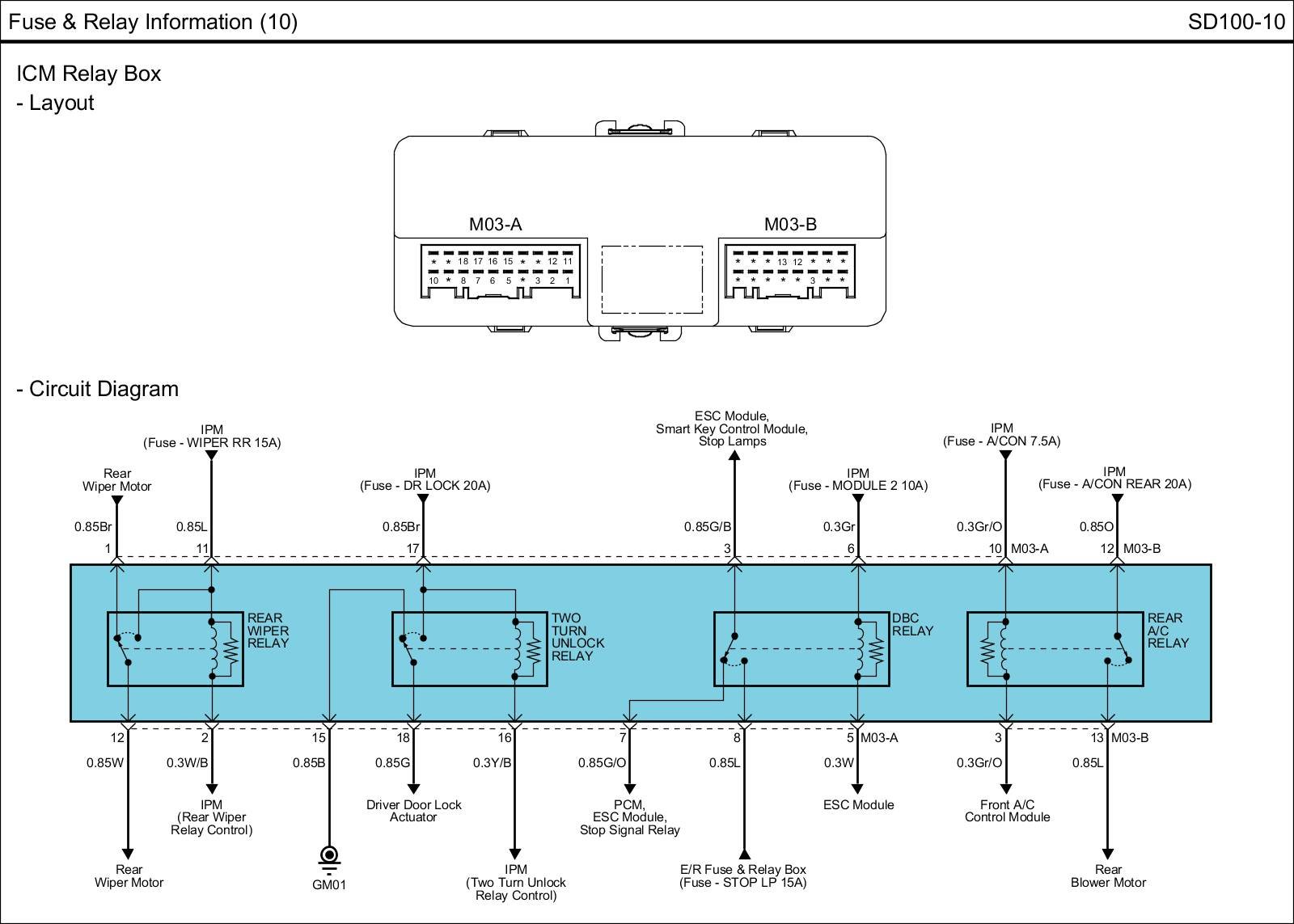

ICM Relay Box View:
