Emission Control Systems: Locations

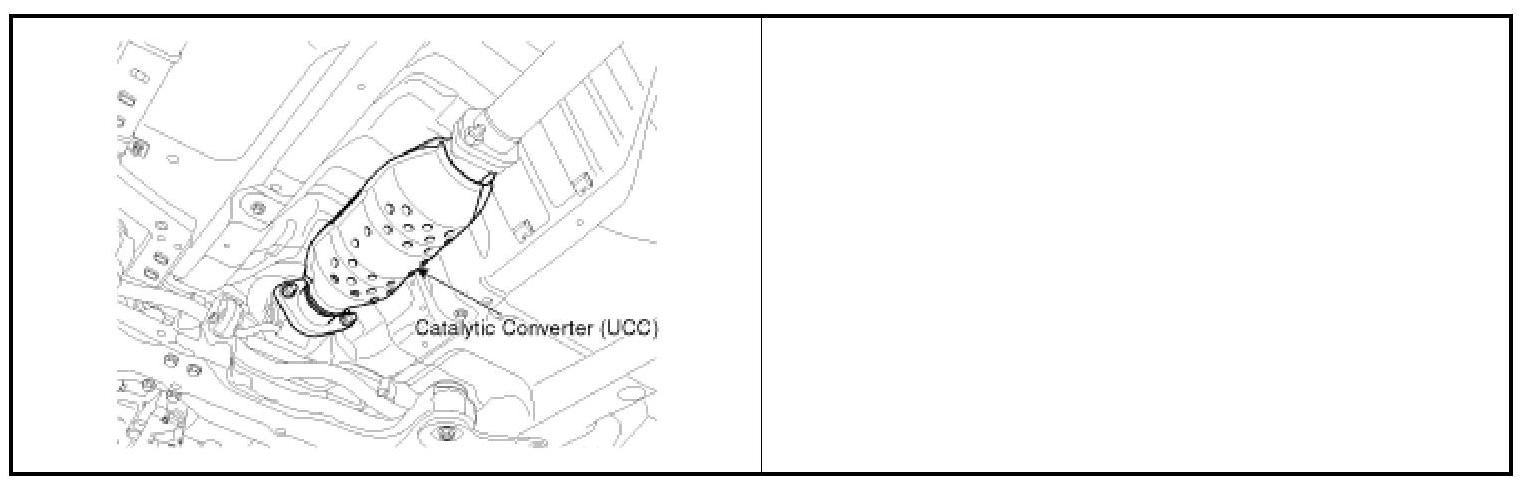

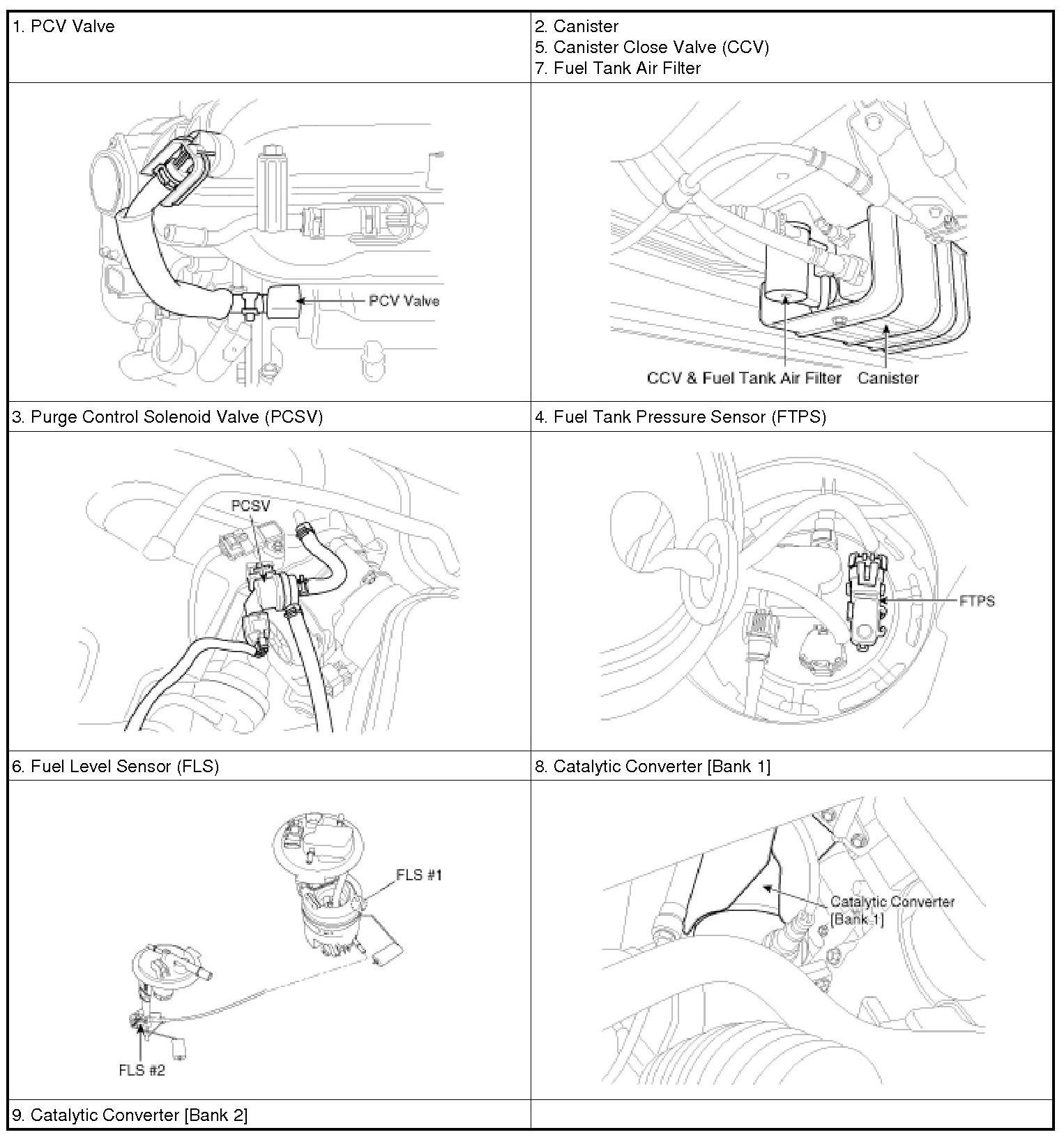

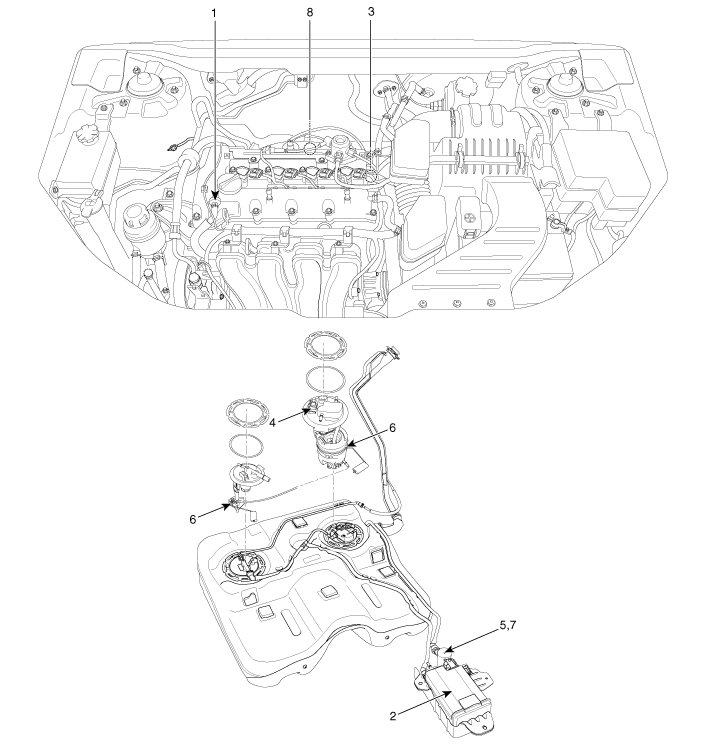

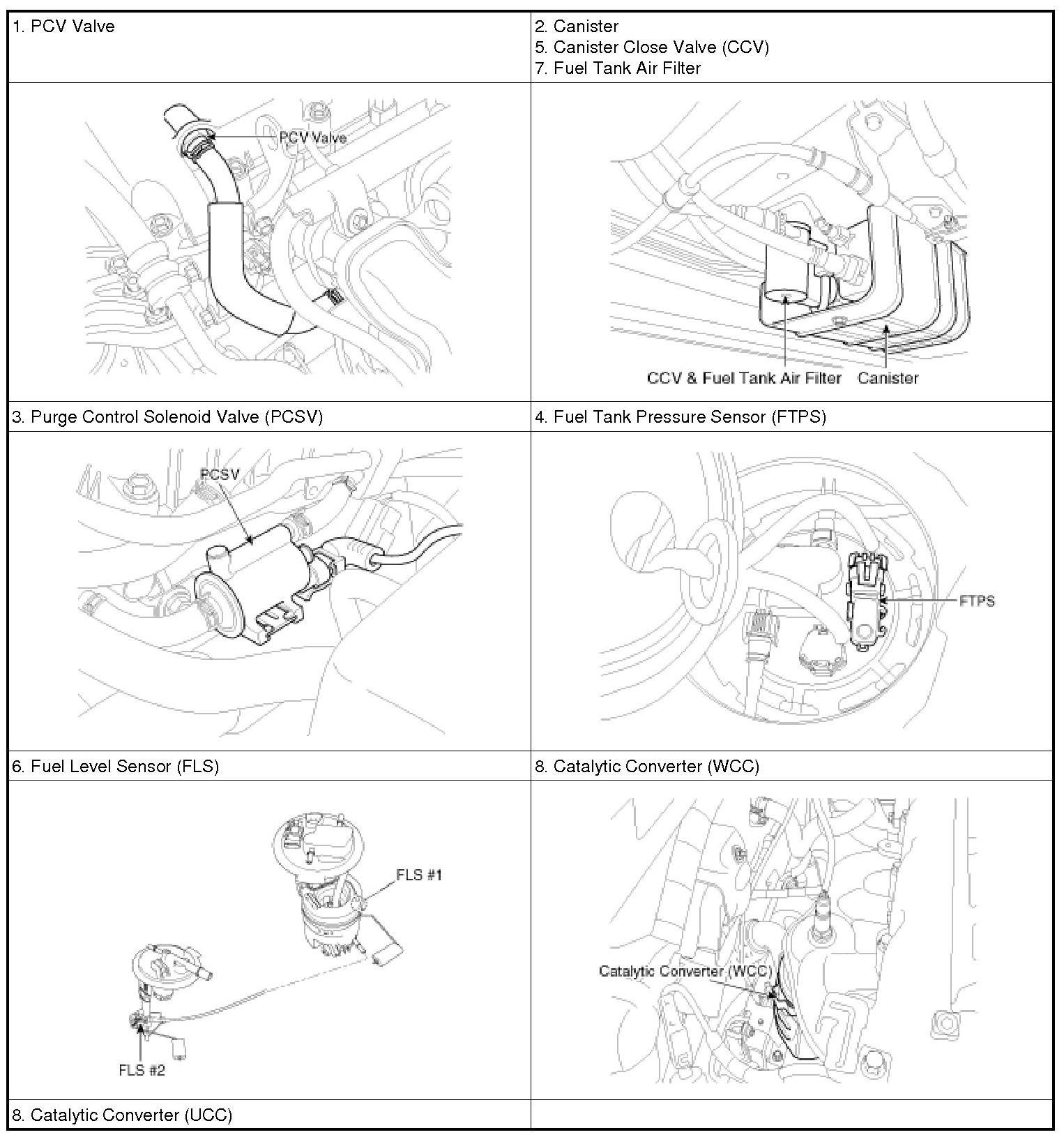

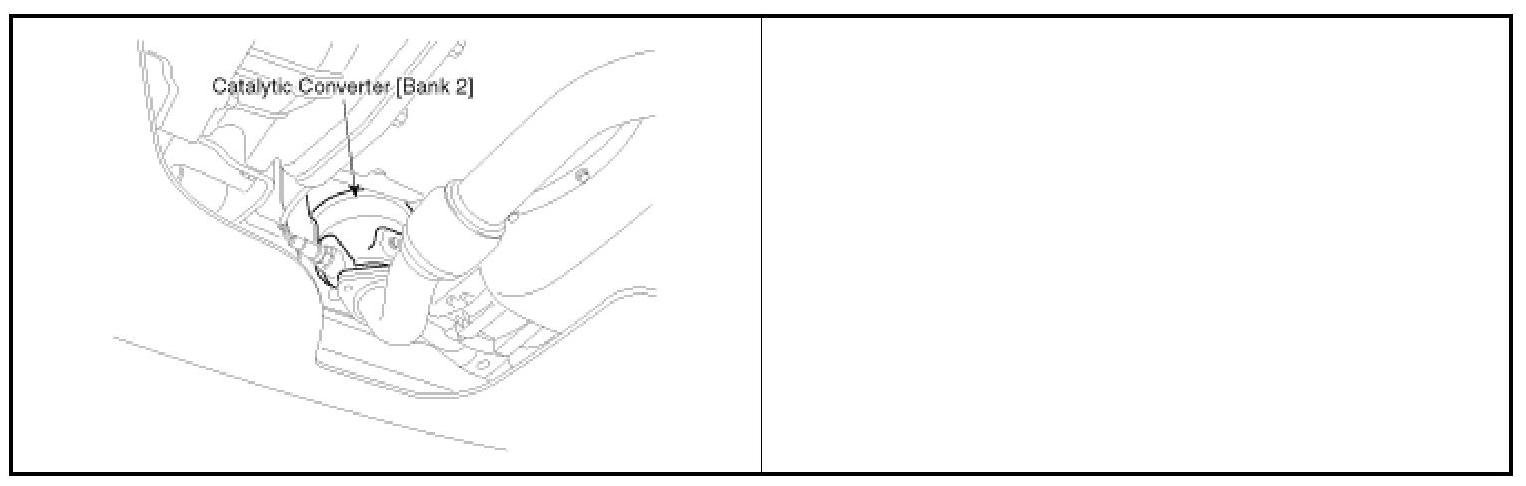

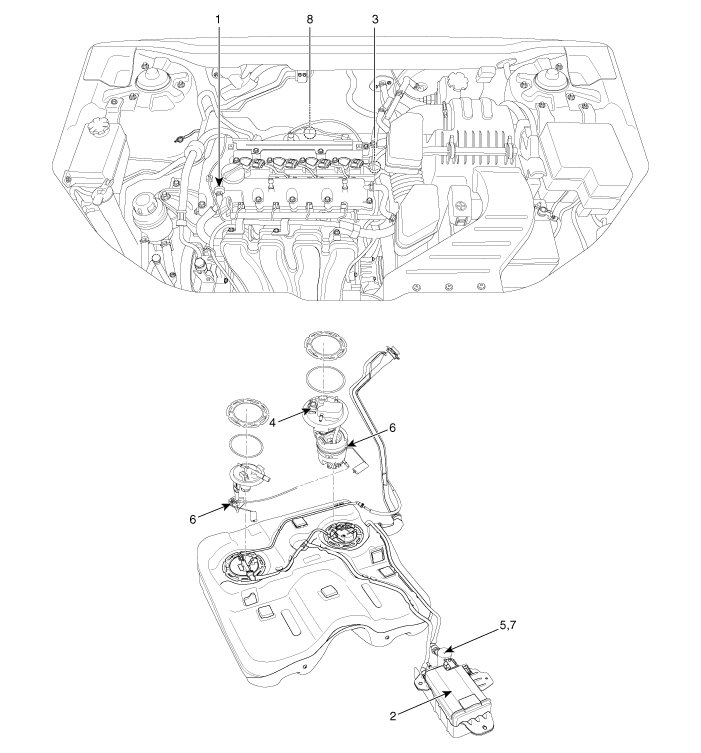

Components Location

[2.4 MPI]



















[2.4 GDI]



















[3.5 V6]
