Sorento Base, 2.4L Eng VIN 1, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.4L GDI
>>
Crankshaft Position Sensor (CKPS) (VIN 6)
>>
Troubleshooting
>>
Wave Form
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wave Form

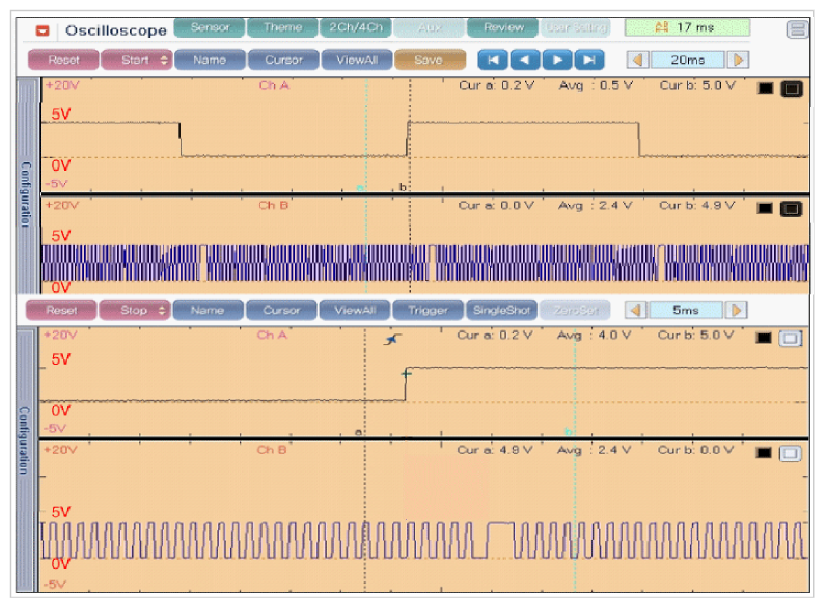

Fig 1: Display - Crankshaft Position Sensor Waveform Screen (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.
