Components (2)

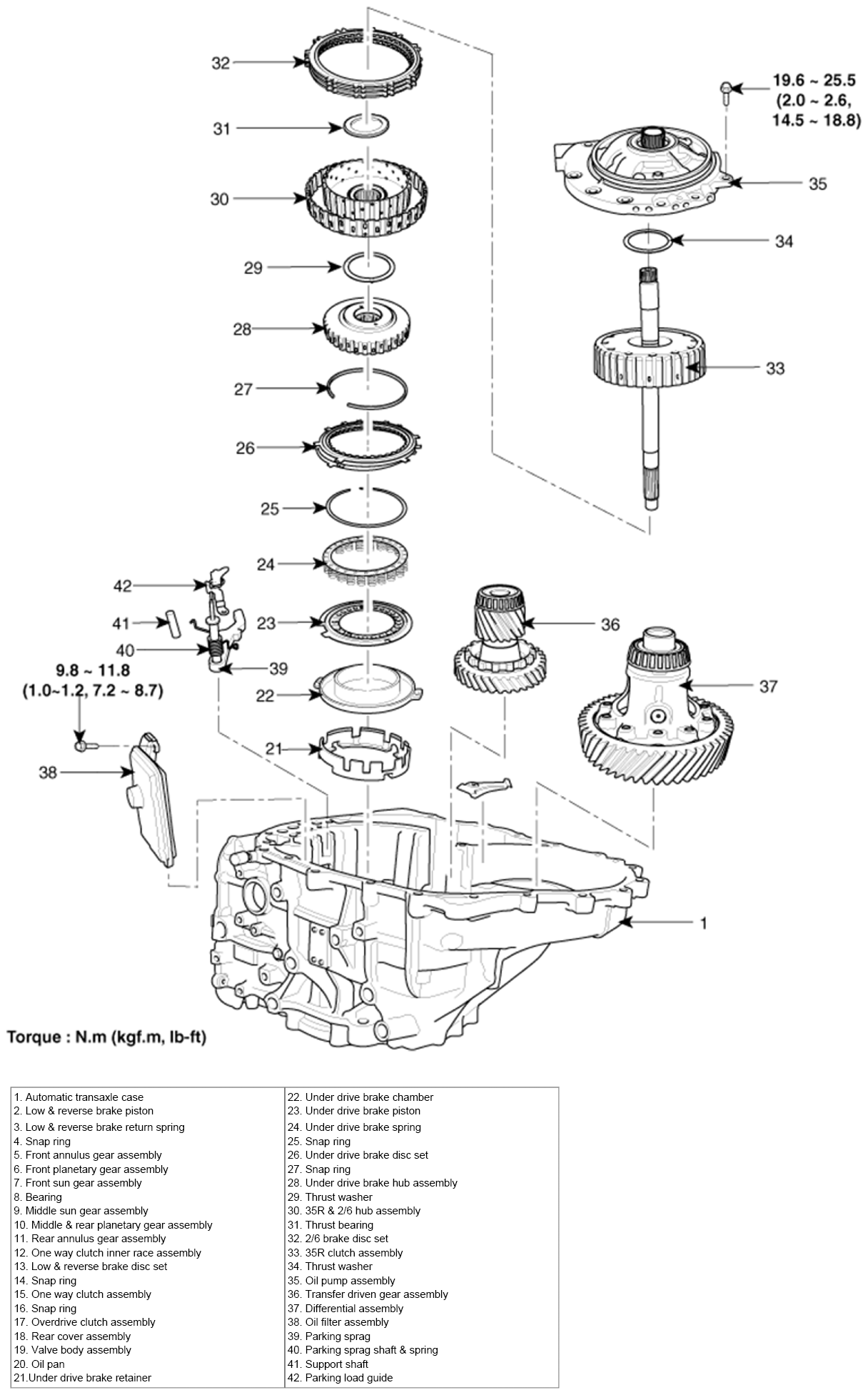

Fig 1: Exploded View Of Automatic Transaxle With Torque Specifications (Components 2)
G07419753Courtesy of KIA MOTORS AMERICA, INC.
