Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the VCMA connector (A).

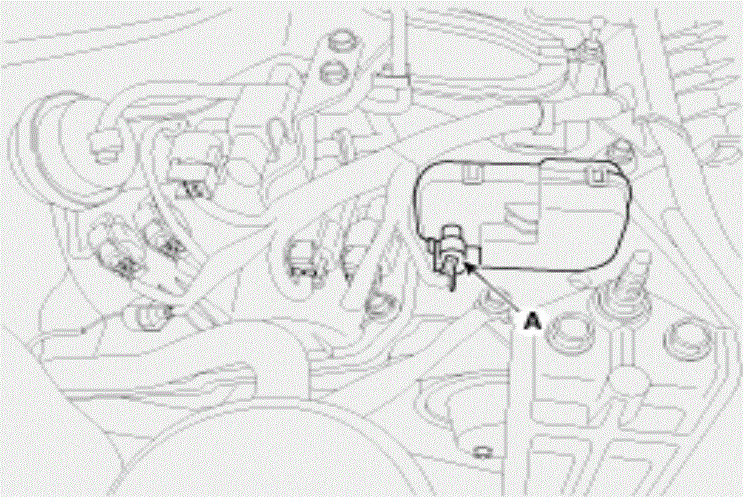

    Fig 1: VCMA Component Location And Harness Connector
    G00534577Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the bolts (A) securing the VCMA to the intake manifold.
  4. Separate the VCMA linkage rod (B) from the attachment point on the VCMA lever using a trim clip removal tool.

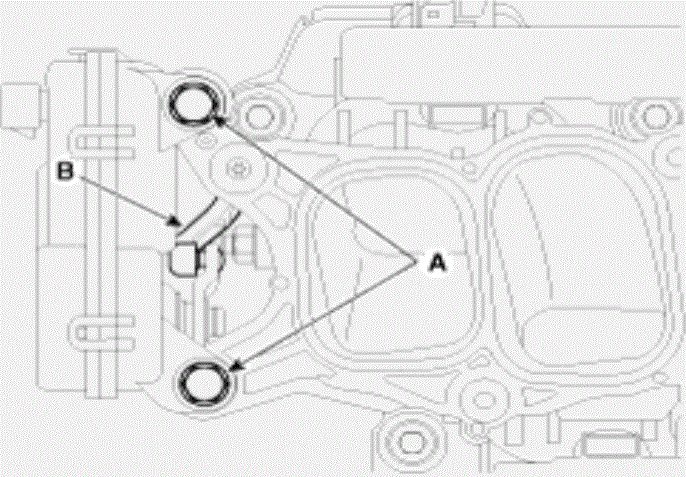

    Fig 2: Identifying Installation Bolts And Linkage Rod
    G00534578Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the VCMA from the vehicle.
