Components (1)

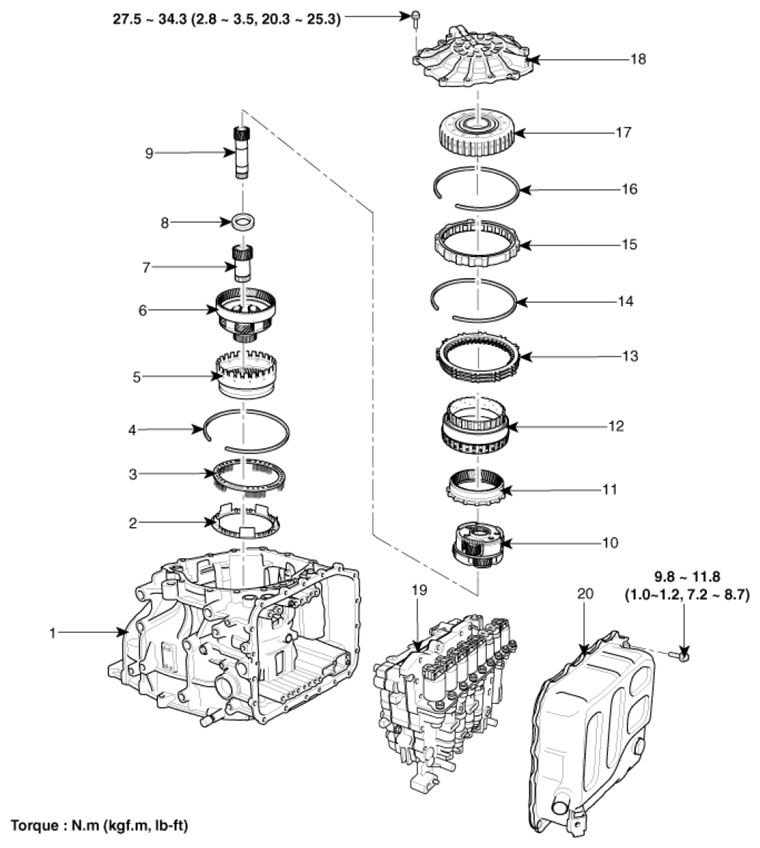

Fig 1: Identifying Automatic Transaxle Components And Components Location (1 Of 2)
G07676024Courtesy of KIA MOTORS AMERICA, INC.
