Components And Components Location: Components: Notes

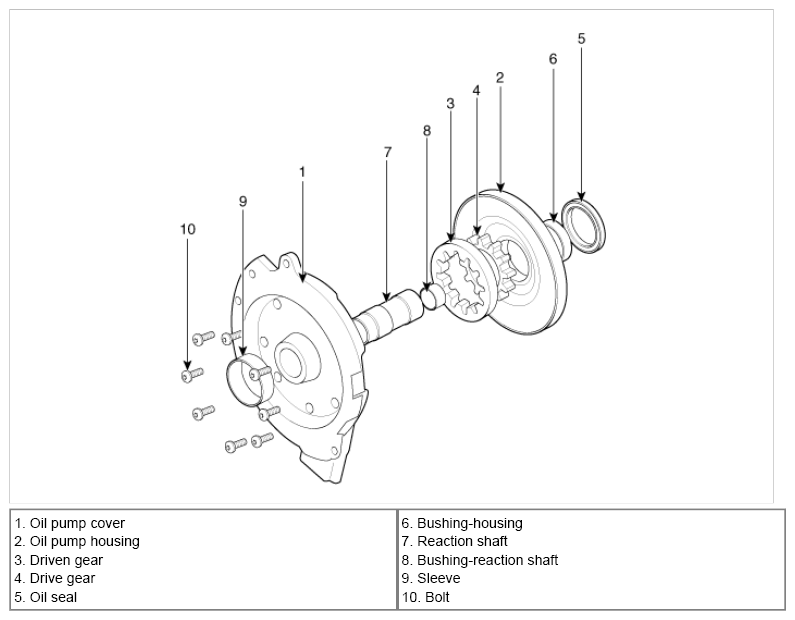

Fig 1: Identifying Oil Pump Components

G08331187

Courtesy of KIA MOTORS AMERICA, INC.
