Components (2012-02-10~)

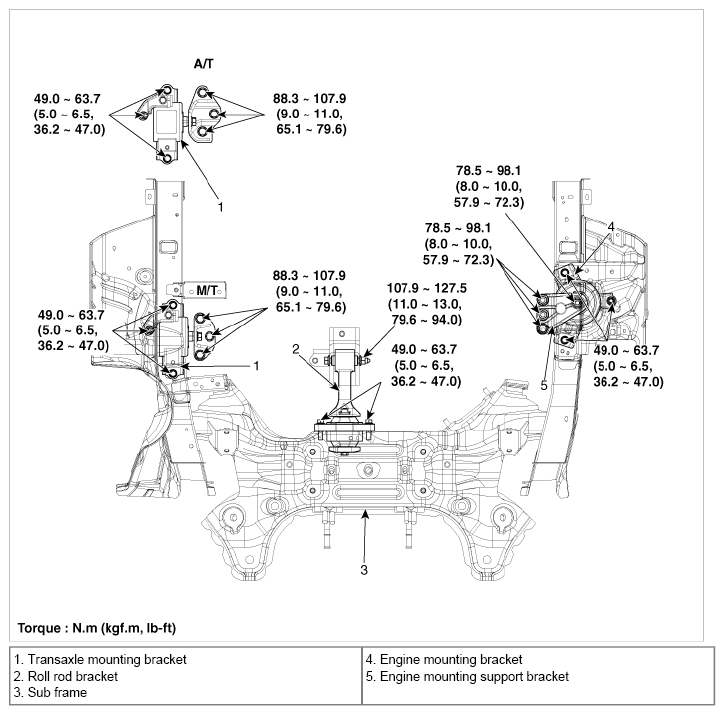

Fig 1: Engine Mounting Replacement Components With Torque Specifications (2 Of 2)
G08329676Courtesy of KIA MOTORS AMERICA, INC.
