Components (~2012-02-09)

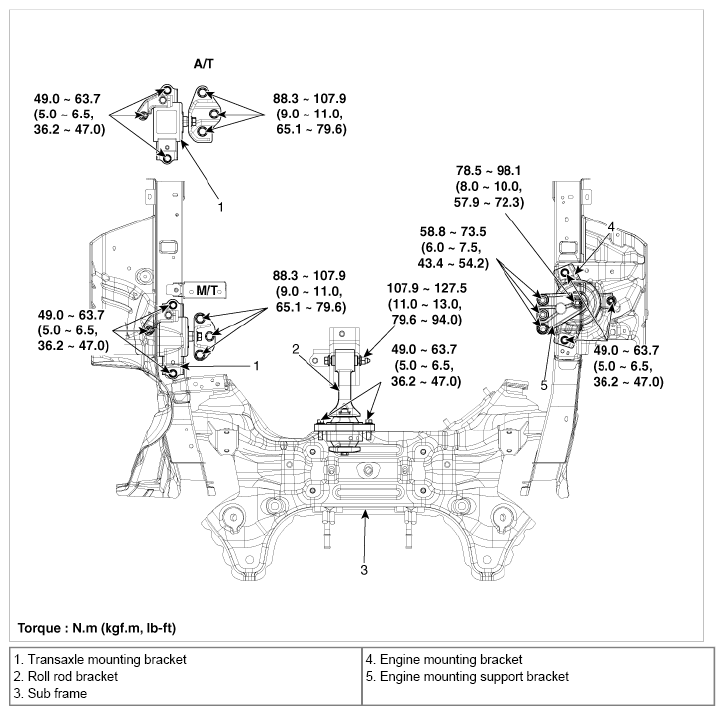

Fig 1: Engine Mounting Replacement Components With Torque Specifications (1 Of 2)
G08329675Courtesy of KIA MOTORS AMERICA, INC.
