Repair procedures: Removal

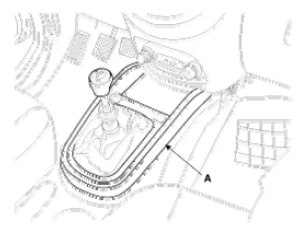

Remove the cover (A).

Fig 1: Identifying Center Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the center console assembly.
(refer to "REPLACEMENT " in BD group.)

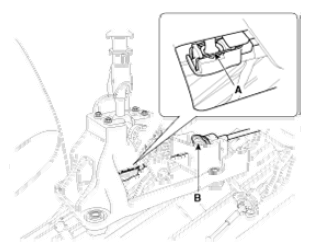

Remove the select cable (B) by removing the snap pin (A).

Fig 2: Identifying Select Cable And Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.

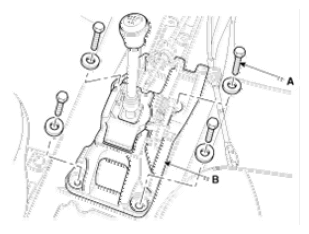

Remove the shift lever assembly (B) by removing the bolts (A-4ea).

Fig 3: Identifying Shift Lever Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

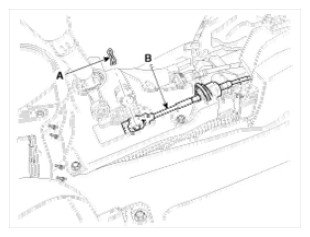

Remove the shift cable (B) from the shift lever assembly by removing the clip (A).

Fig 4: Identifying Shift Cable And Clip
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Identifying Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
