Repair procedures: Disassembly

Remove the alternator cover(A).

Fig 1: Identifying Alternator Cover
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting bolts(A) and disconnect the brush holder assembly(B).

Fig 2: Identifying Brush Holder Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the slip ring guide(A).

Fig 3: Identifying Slip Ring Guide
Courtesy of KIA MOTORS AMERICA, INC.
Remove the OAD (Overrunning Alternator Decoupler) cap. (With OAD)
NOTE: When installing, replace with new OAD cap.
Remove the OAD (Overrunning Alternator Decoupler) pulley (A) using the special tool. (With OAD)

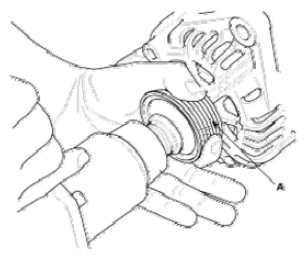

Fig 4: Removing Overrunning Alternator Decoupler Pulley Using Special Tool (With OAD)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the nut and pulley(A). (Without OAD)

Fig 5: Removing Nut And Pulley (Without OAD)
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the 4 through bolts(A).

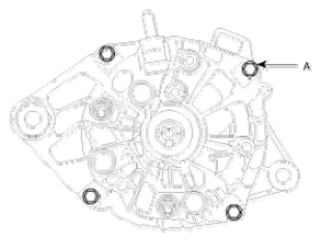

Fig 6: Identifying Alternator Cover Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the rotor(A) and cover(B).

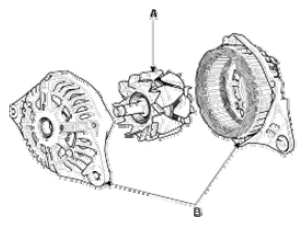

Fig 7: Identifying Rotor And Cover
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of disassembly.
