Components and Components Location: Components

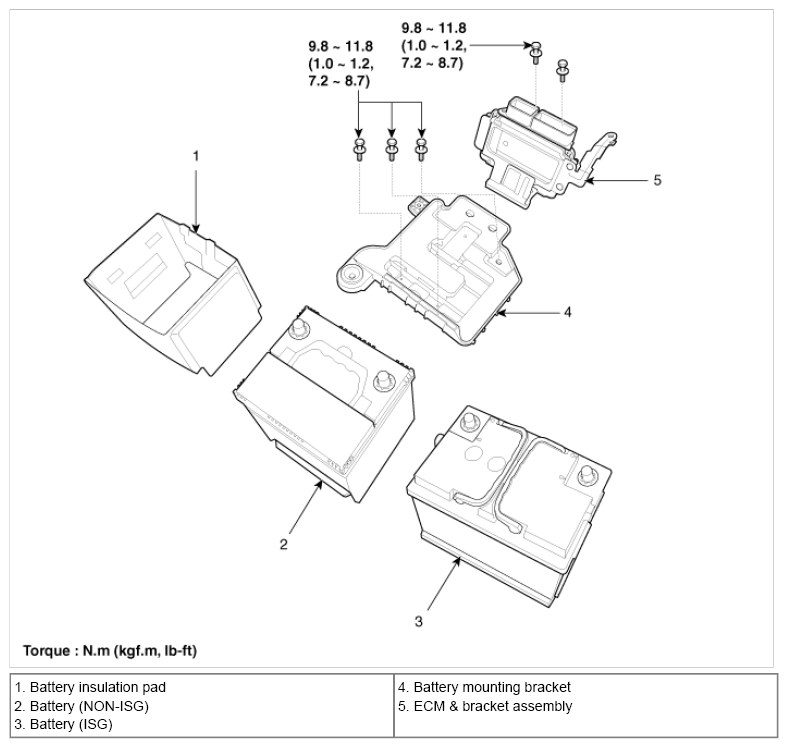

Fig 1: Battery Replacement Components With Torque Specifications (ISG And NON-ISG)
G08327825Courtesy of KIA MOTORS AMERICA, INC.
