Components and Components Location: Components

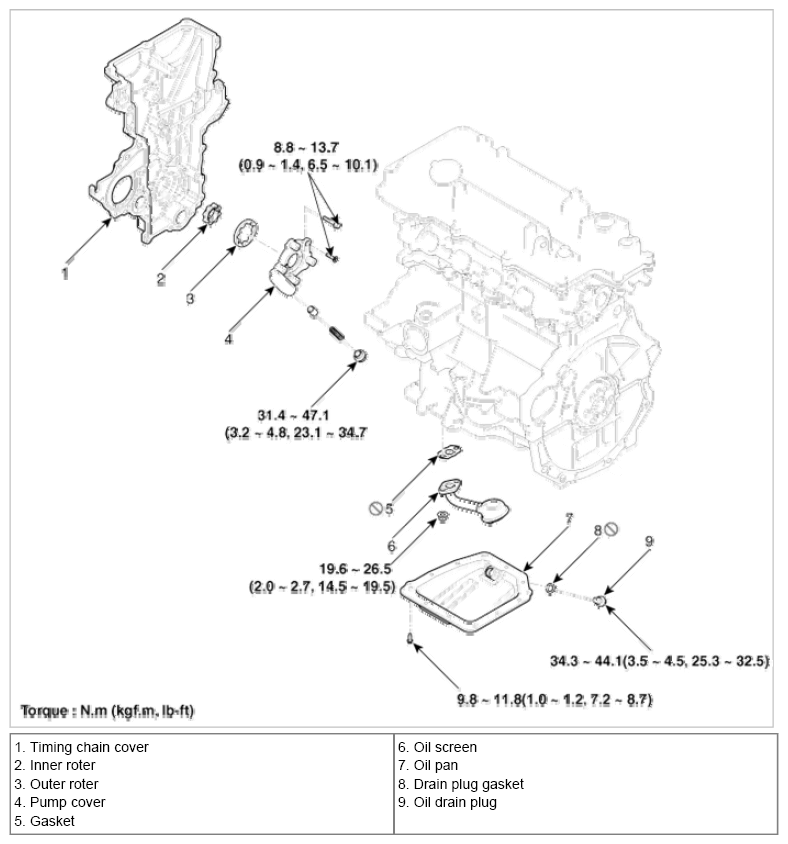

Fig 1: Lubrication System Replacement Components With Torque Specifications
G08327744Courtesy of KIA MOTORS AMERICA, INC.
