Components Location

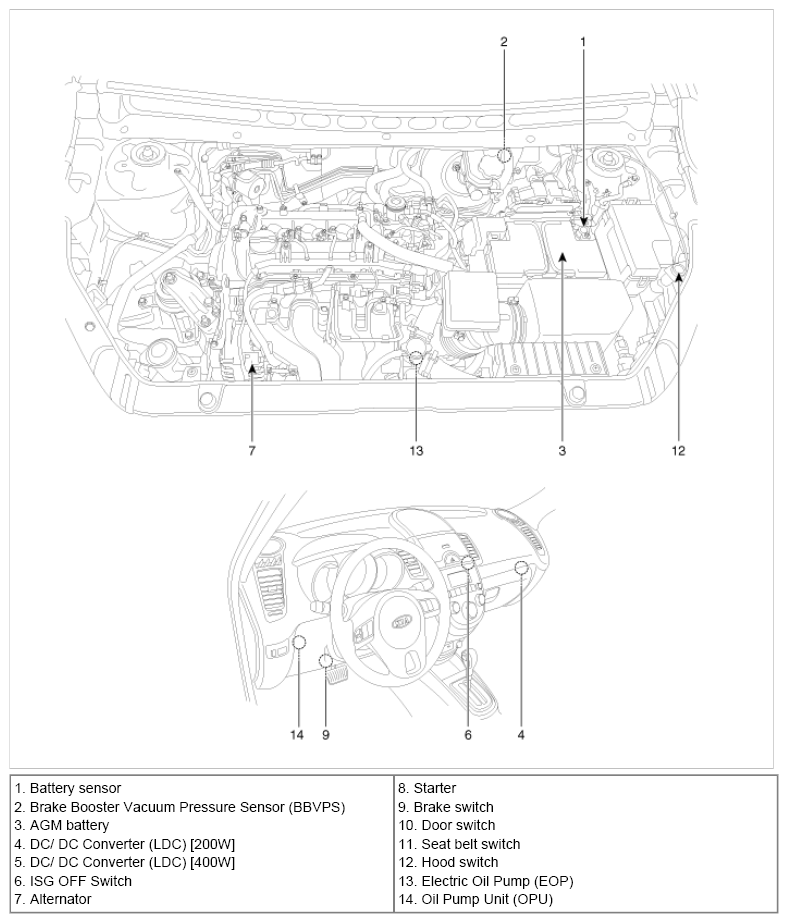

Fig 1: Idle Stop And Go System Components (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

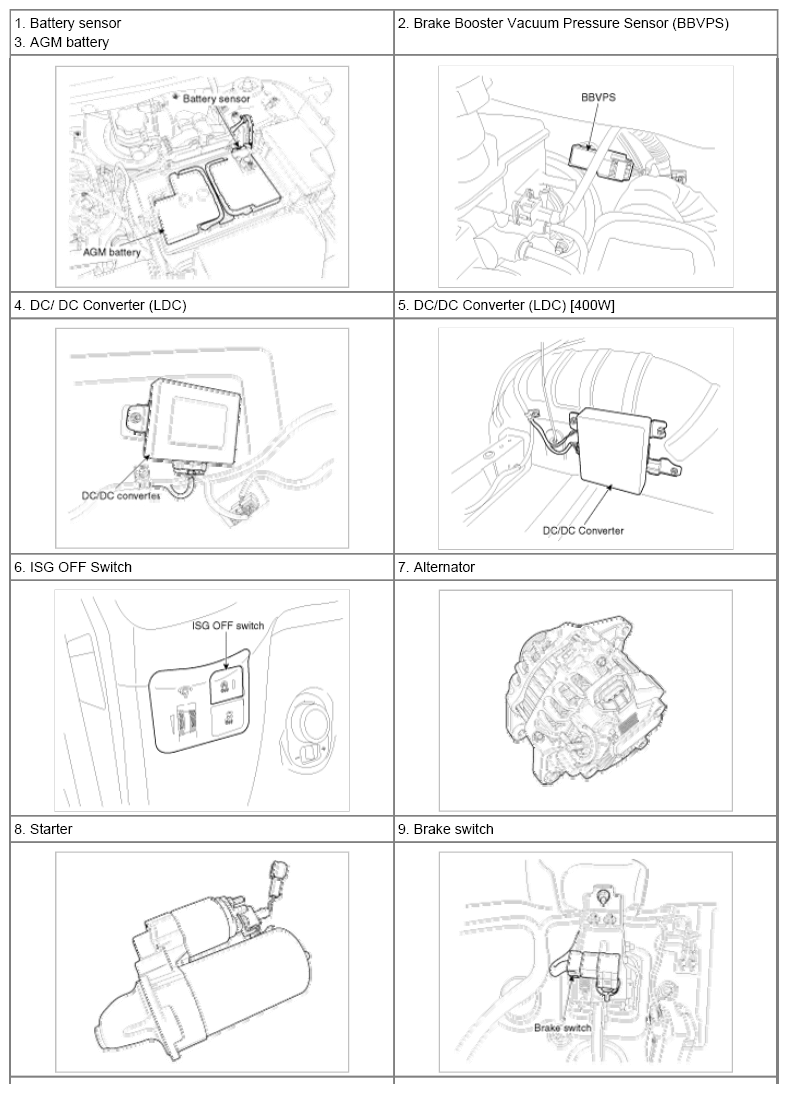

Fig 2: Idle Stop And Go System Components (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

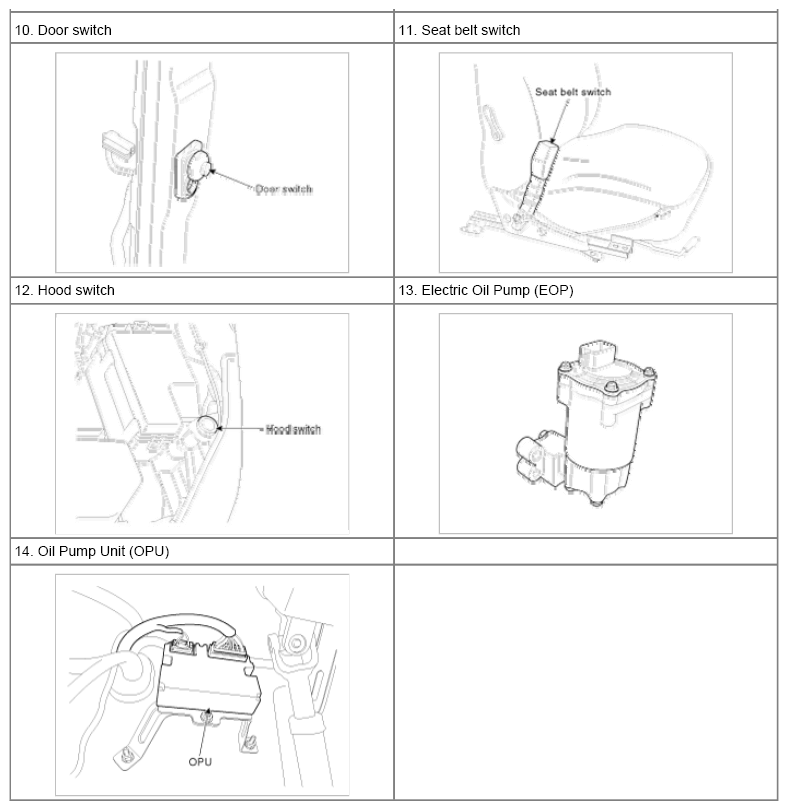

Fig 3: Idle Stop And Go System Components (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
