Components Location: Notes

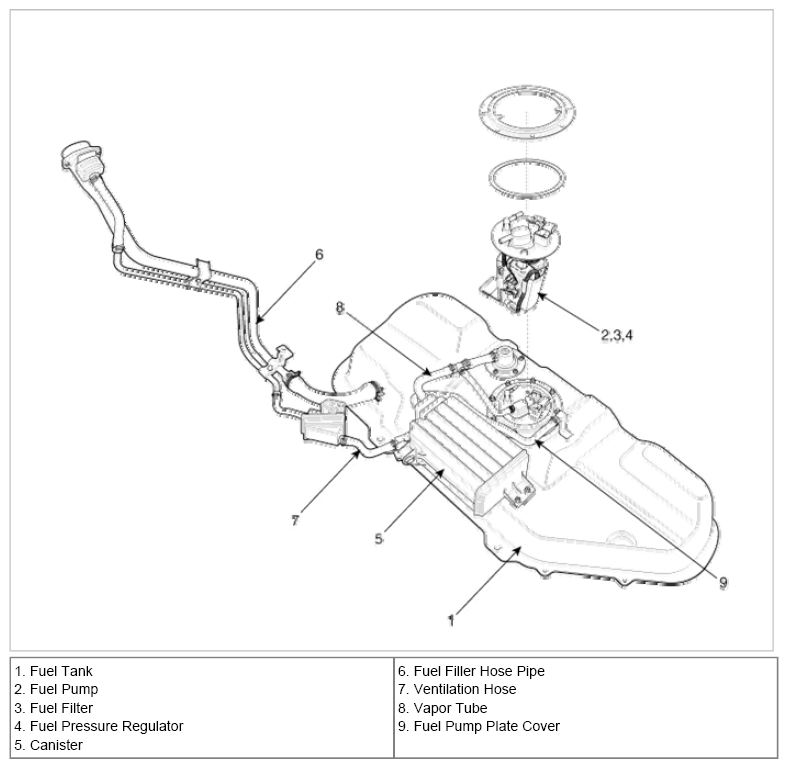

Fig 1: Fuel Delivery System Components Location

G08328106

Courtesy of KIA MOTORS AMERICA, INC.
