Auxiliary Power Outlet: Locations

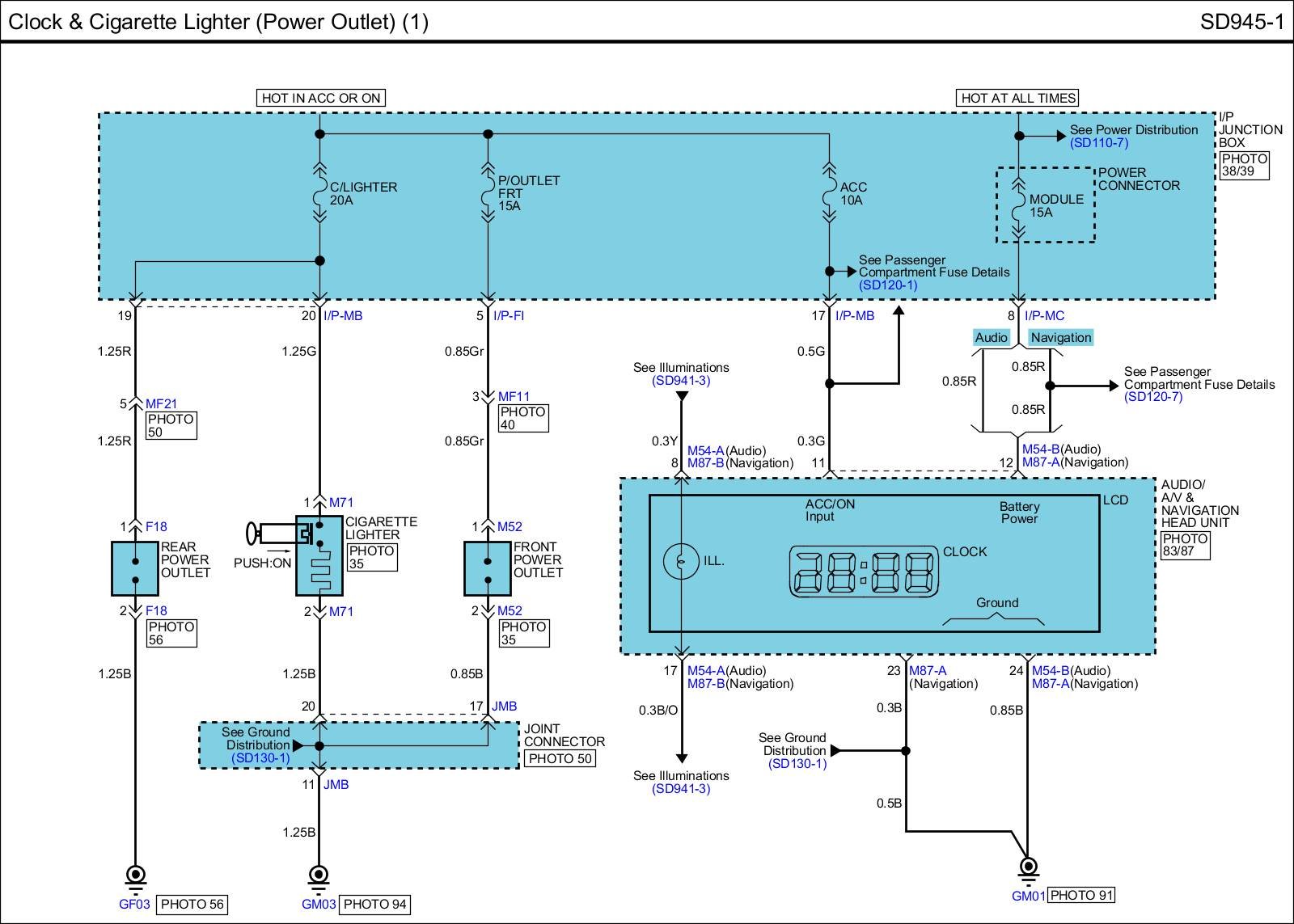

SD945-1 Clock & Cigarette Lighter (Power Outlet) (1):

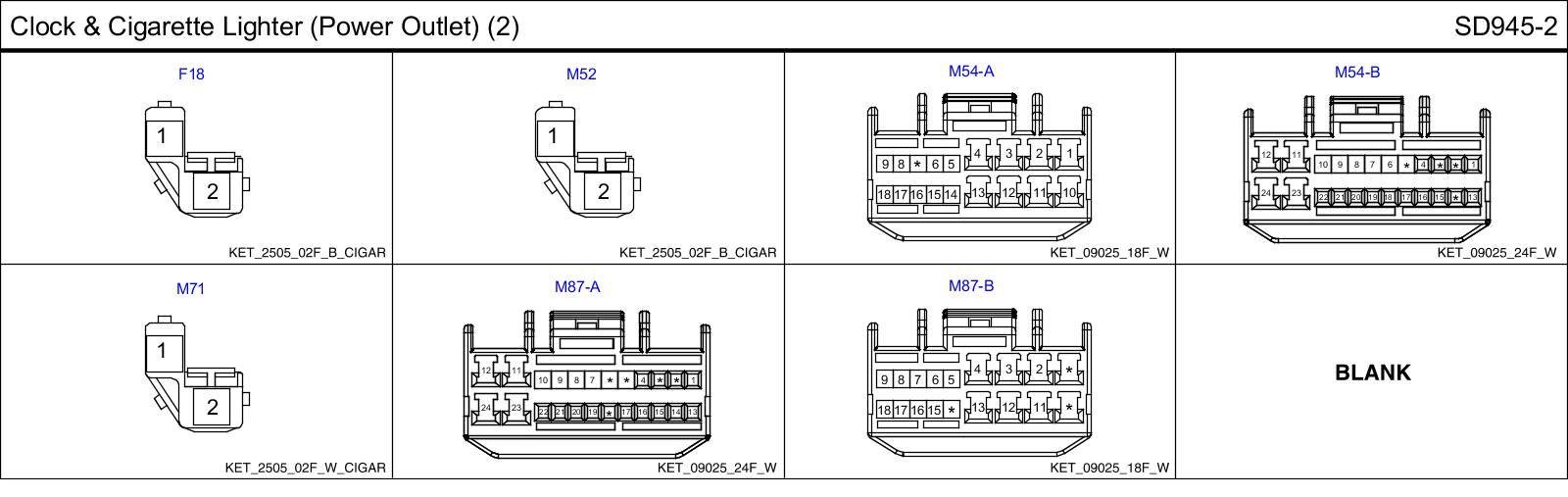

Clock & Cigarette Lighter (Power Outlet) (2) Connector Pin Outs:

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
