Components and Components Location: Components

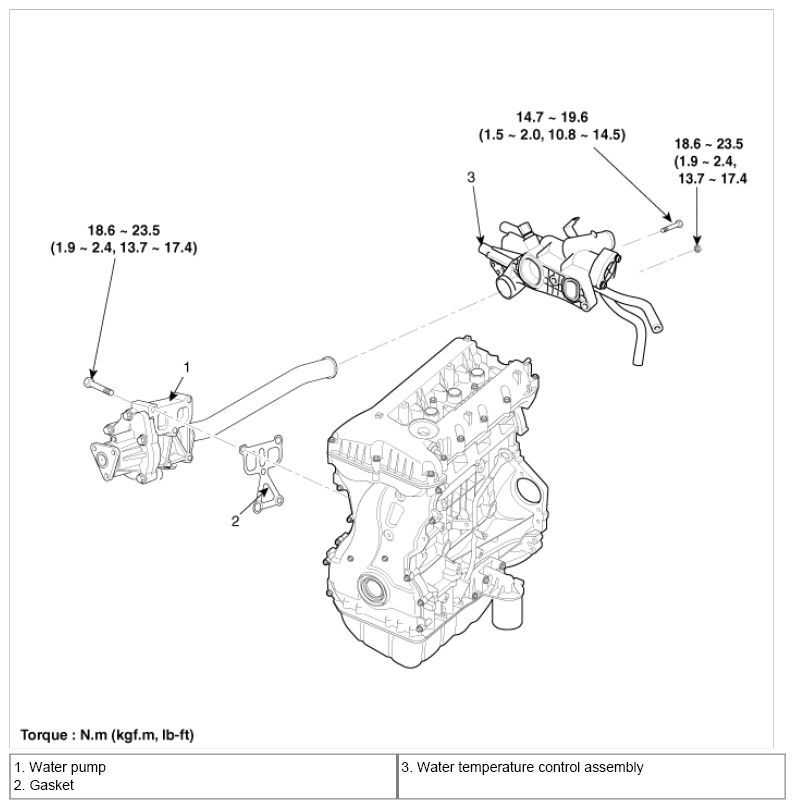

Fig 1: Water Pump Components With Torque Specifications
G07367599Courtesy of KIA MOTORS AMERICA, INC.
