Dual CVVT

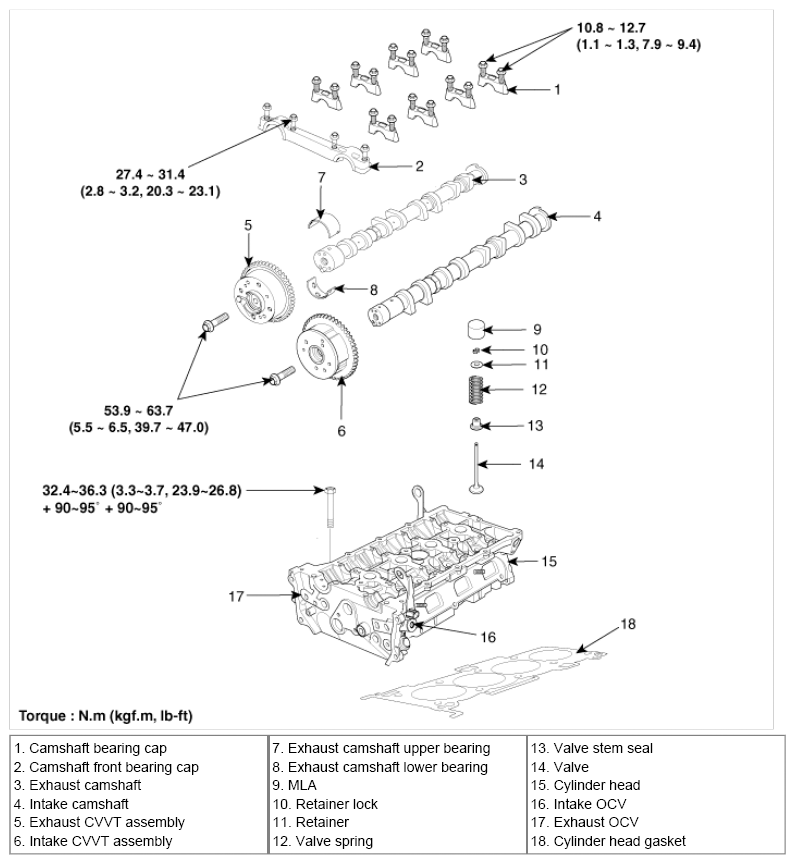

Fig 1: Exploded View Of Cylinder Head With Torque Specifications (Dual CVVT)
G07367488Courtesy of KIA MOTORS AMERICA, INC.
