Fuse: Locations

Fuse and Relay Locations

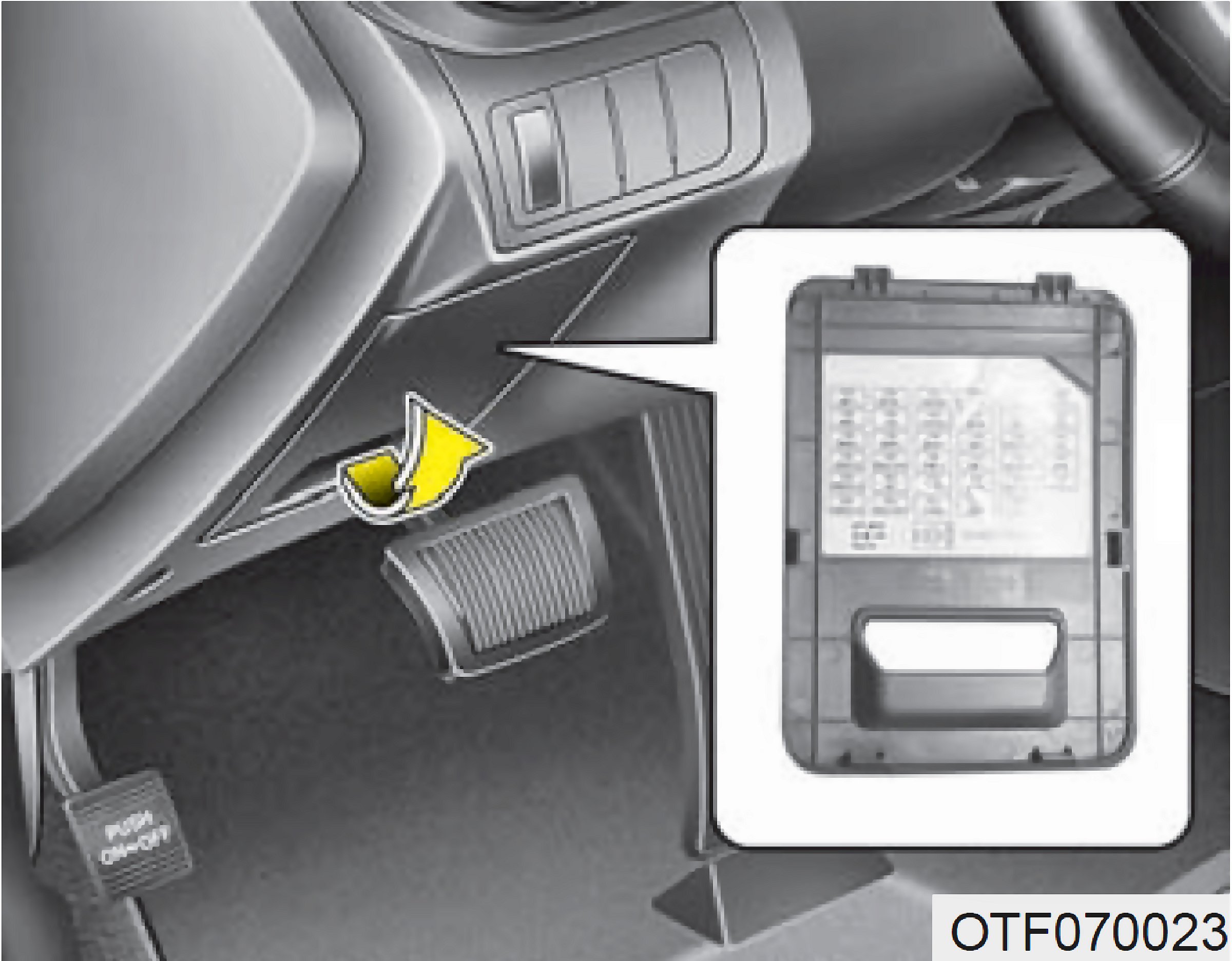

Instrument Panel Fuse Panel:

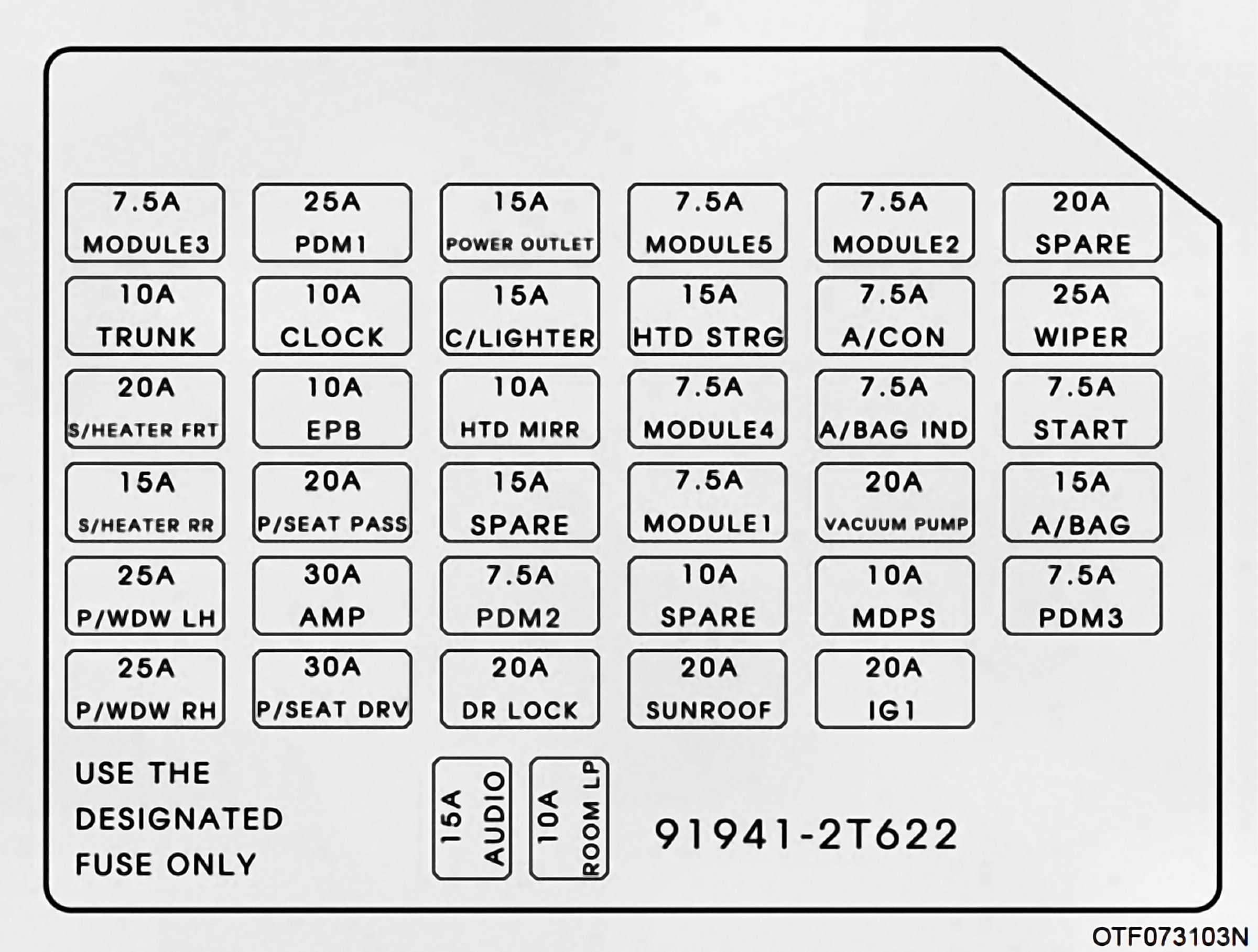

Instrument Panel Fuse Locations:

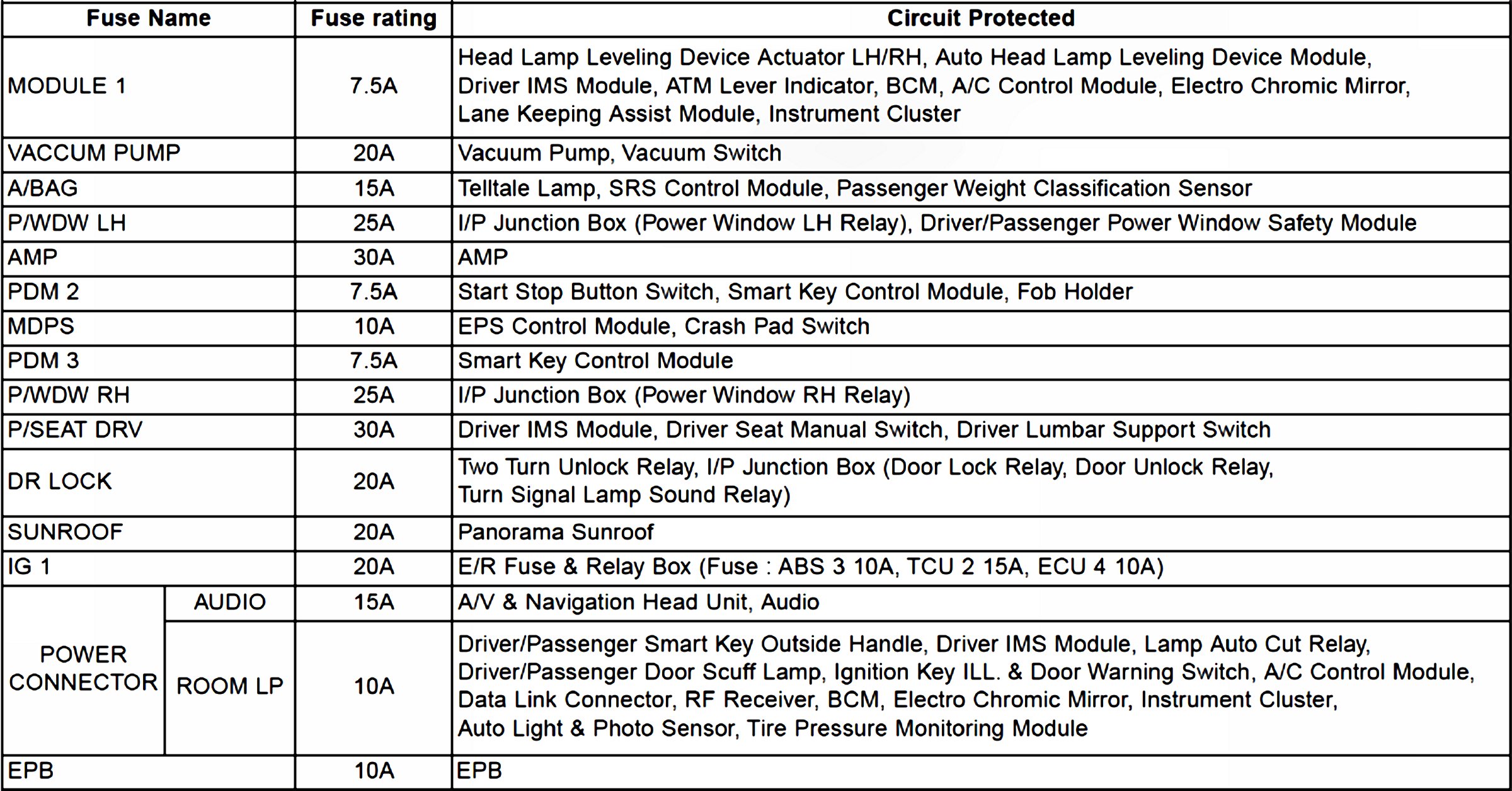

Instrument Fuse Panel Part 1:

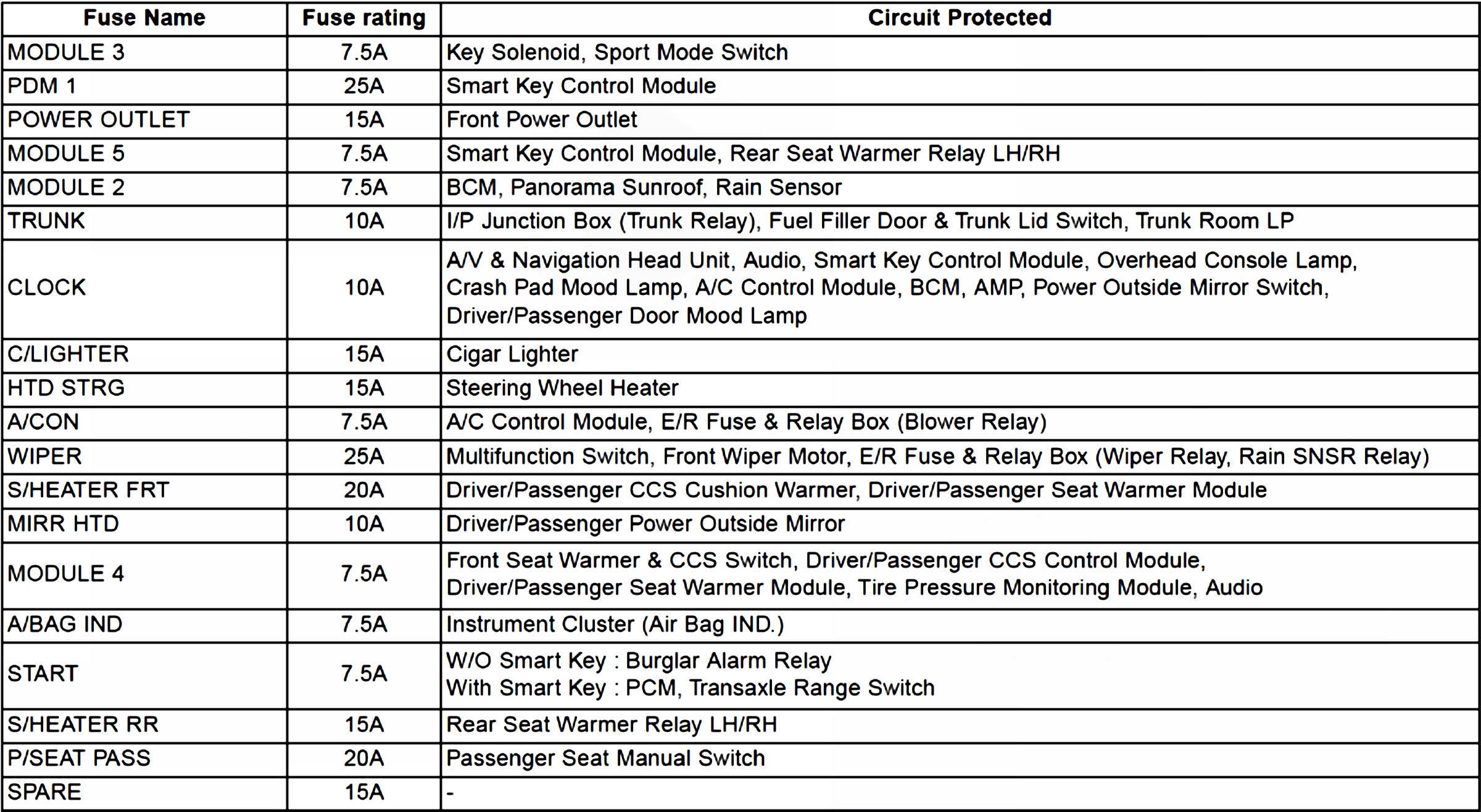

Instrument Fuse Panel Part 2:

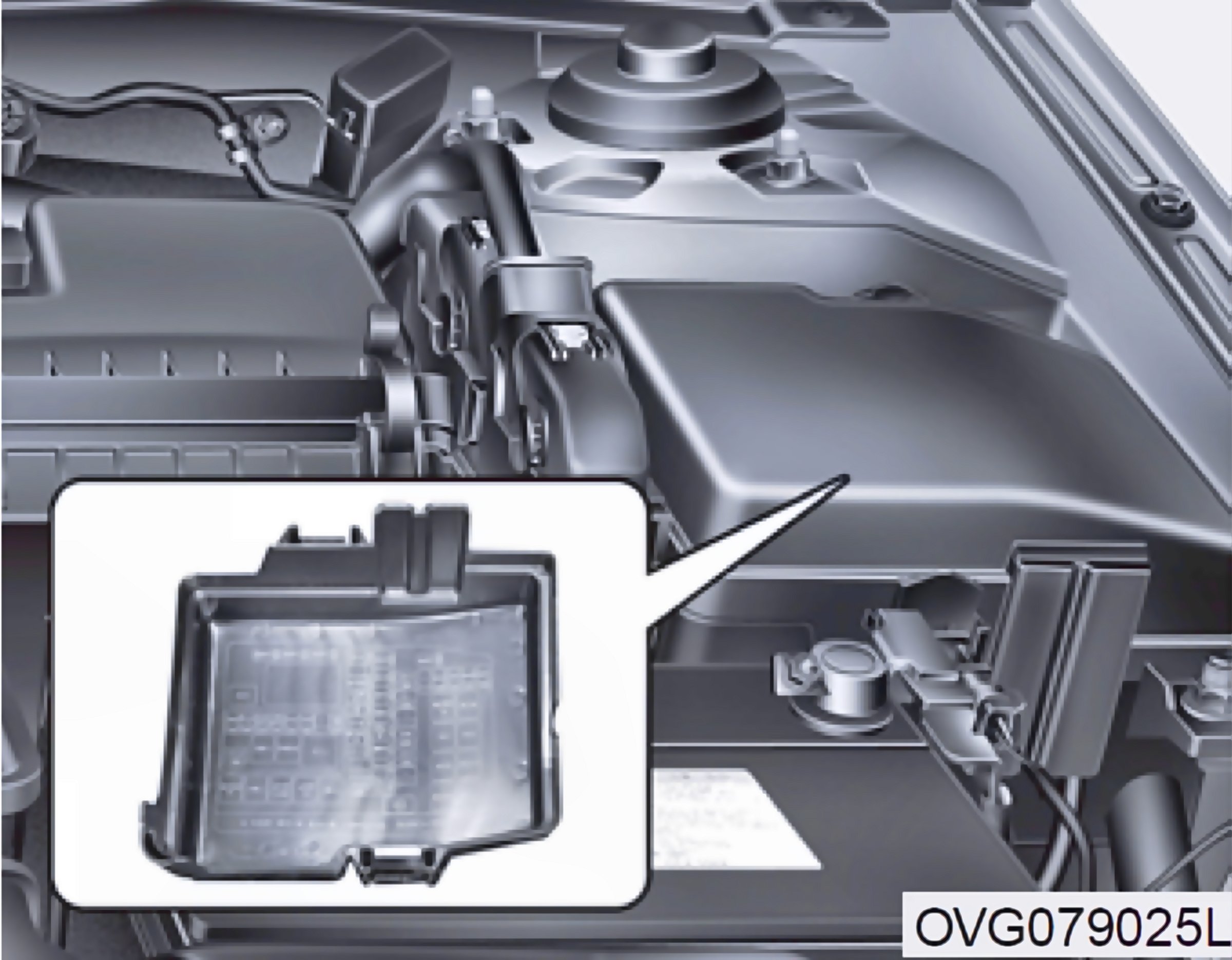

Engine Compartment Fuse Panel:

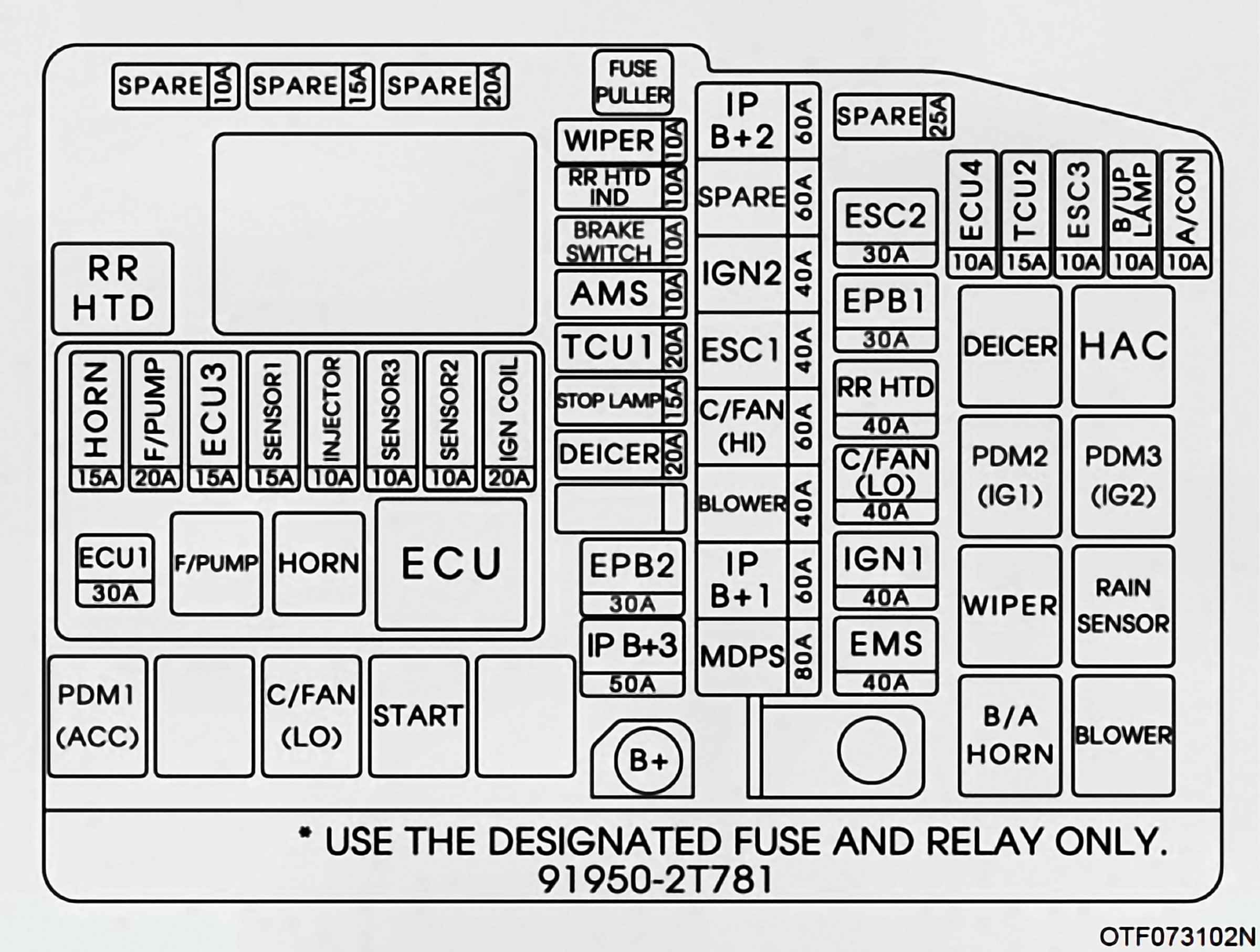

Engine Compartment Fuse And Relay Locations:

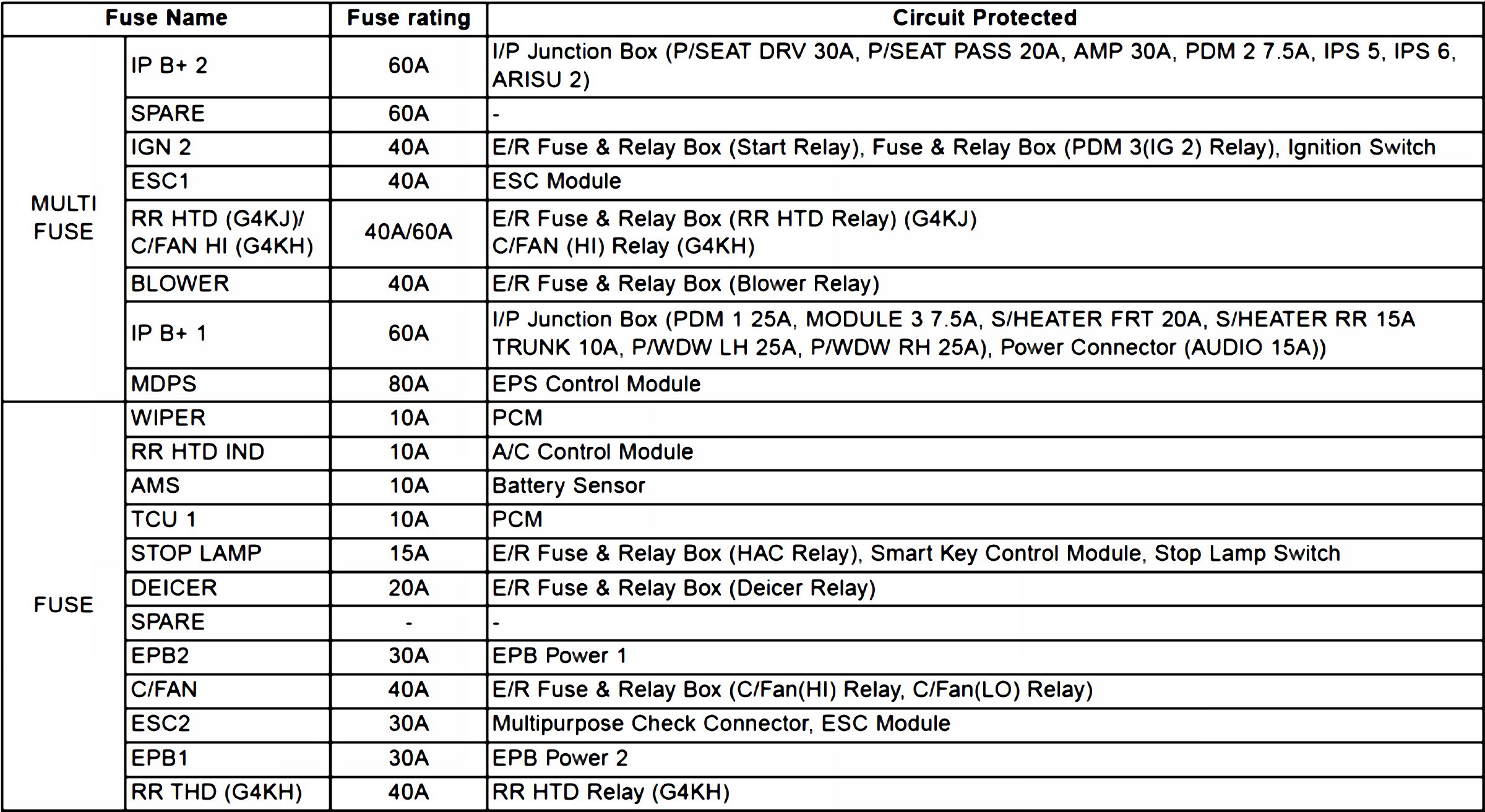

Engine Compartment Fuse Panel Part 1:

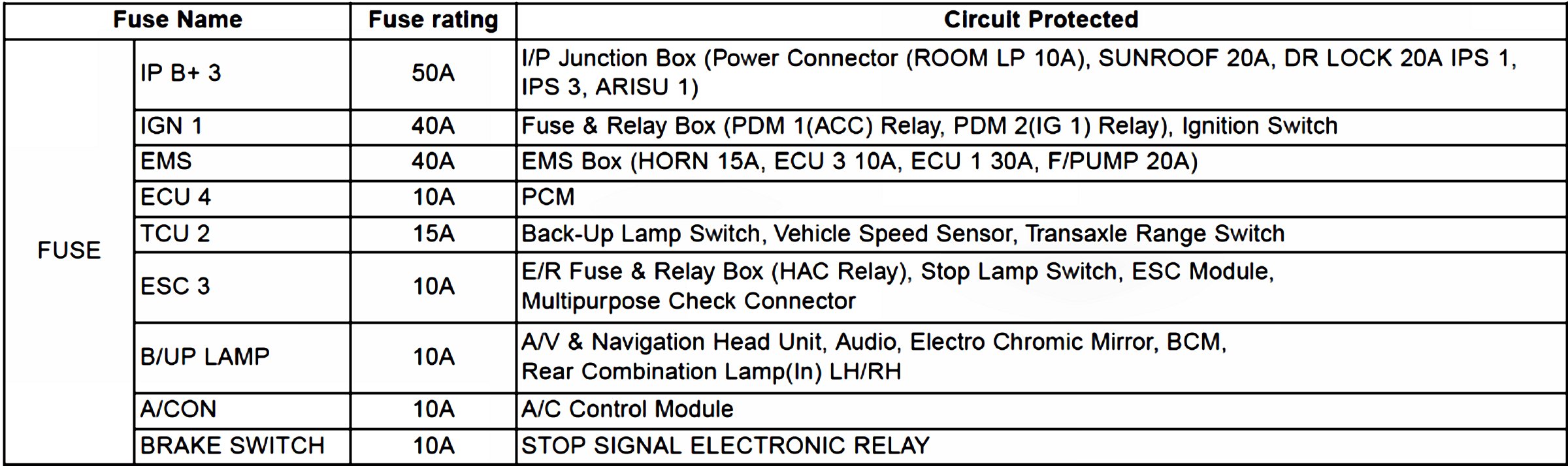

Engine Compartment Fuse Panel Part 2:

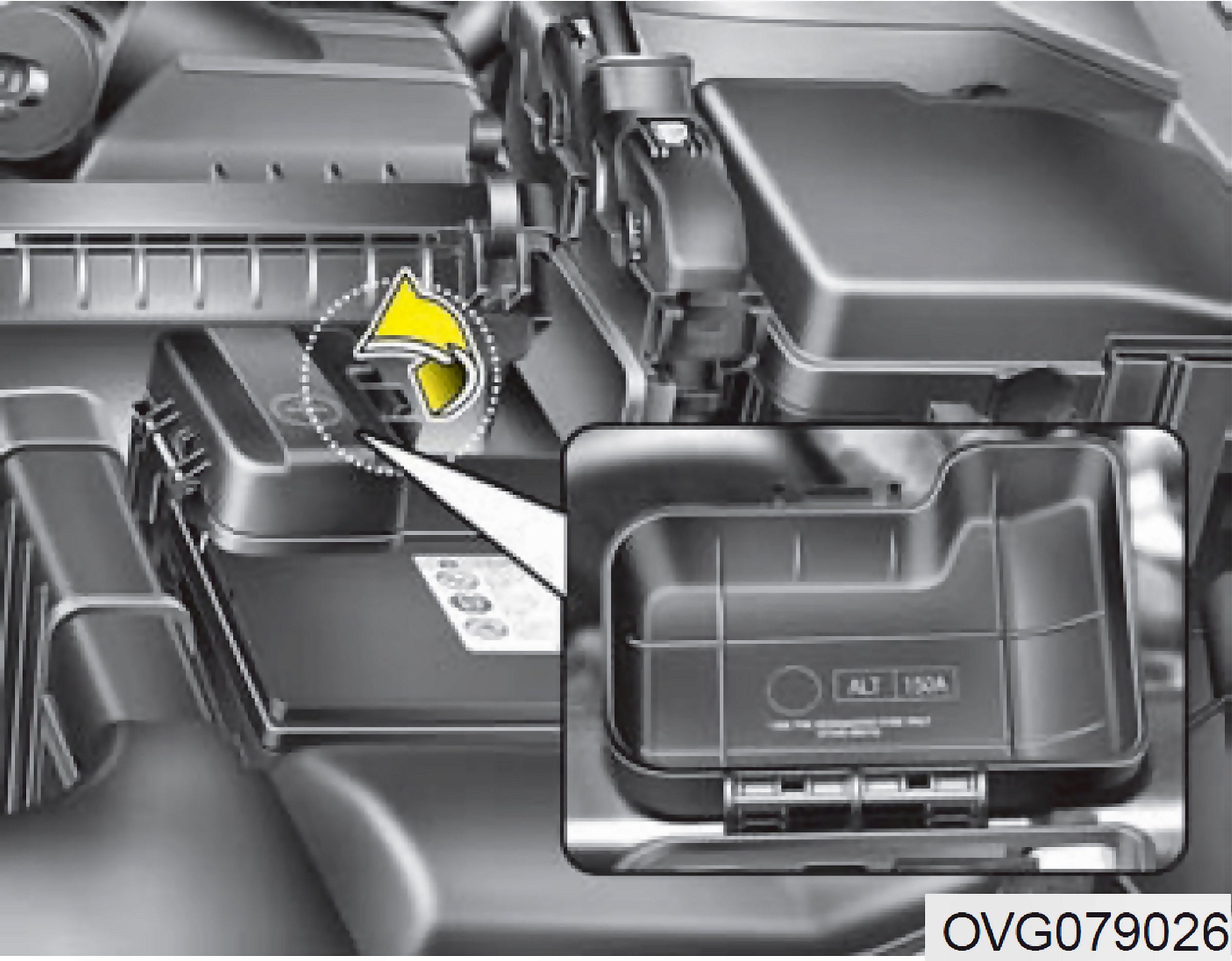

Engine Room (Battery Terminal Cover):

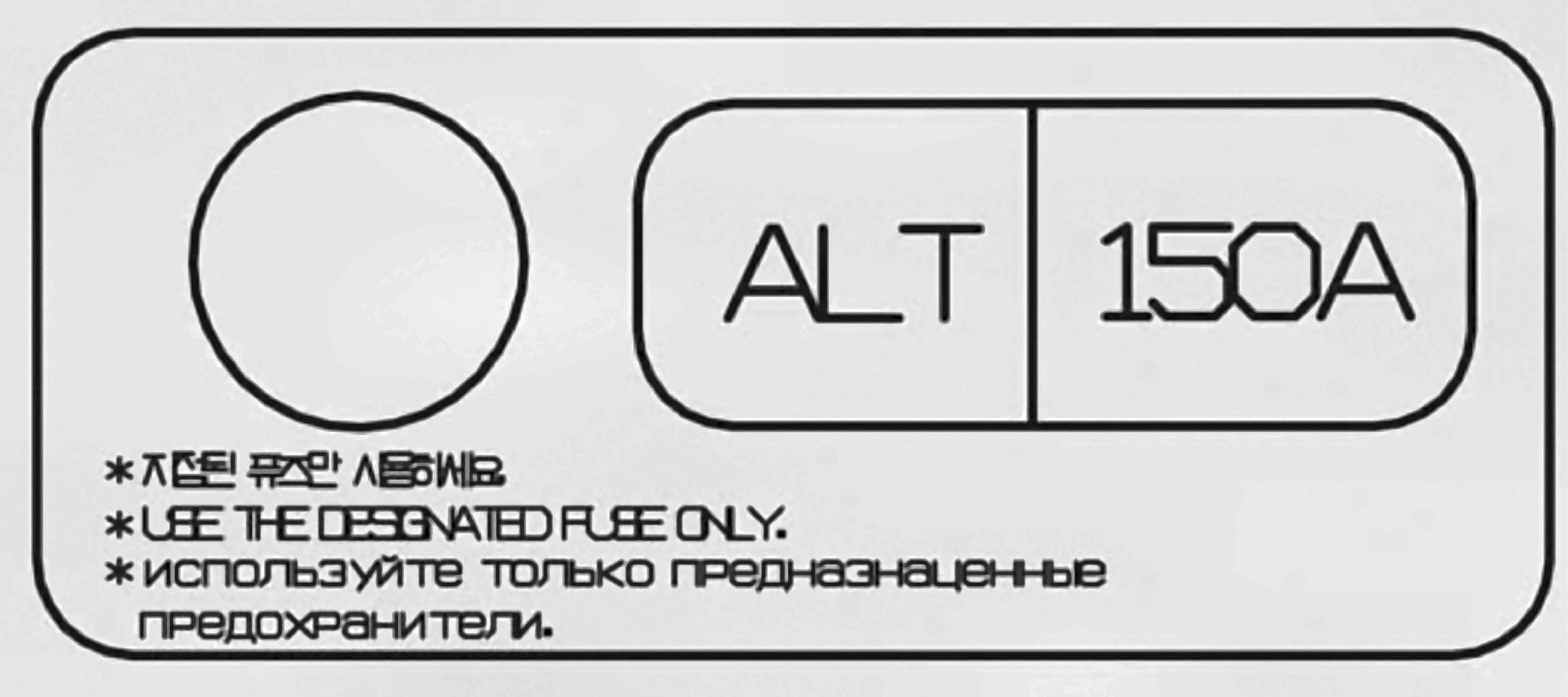

Battery Terminal:

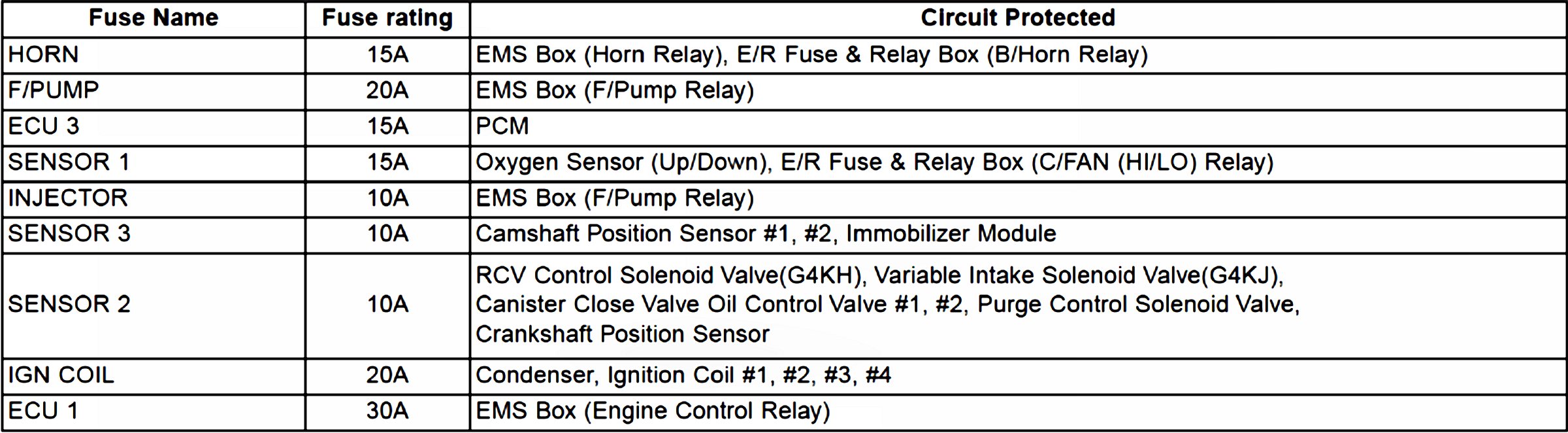

Engine Compartment Fuse Panel (EMS BOX):
