Control Module: Diagrams






1. TCM connector and terminal function





2. TCM terminal function

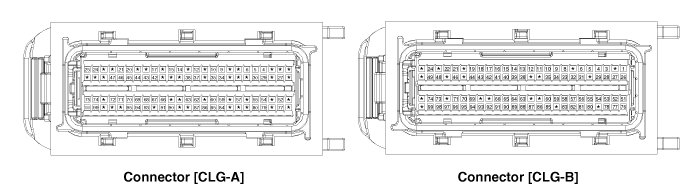

Connector [CLG-A]









Connector [CLG-B]

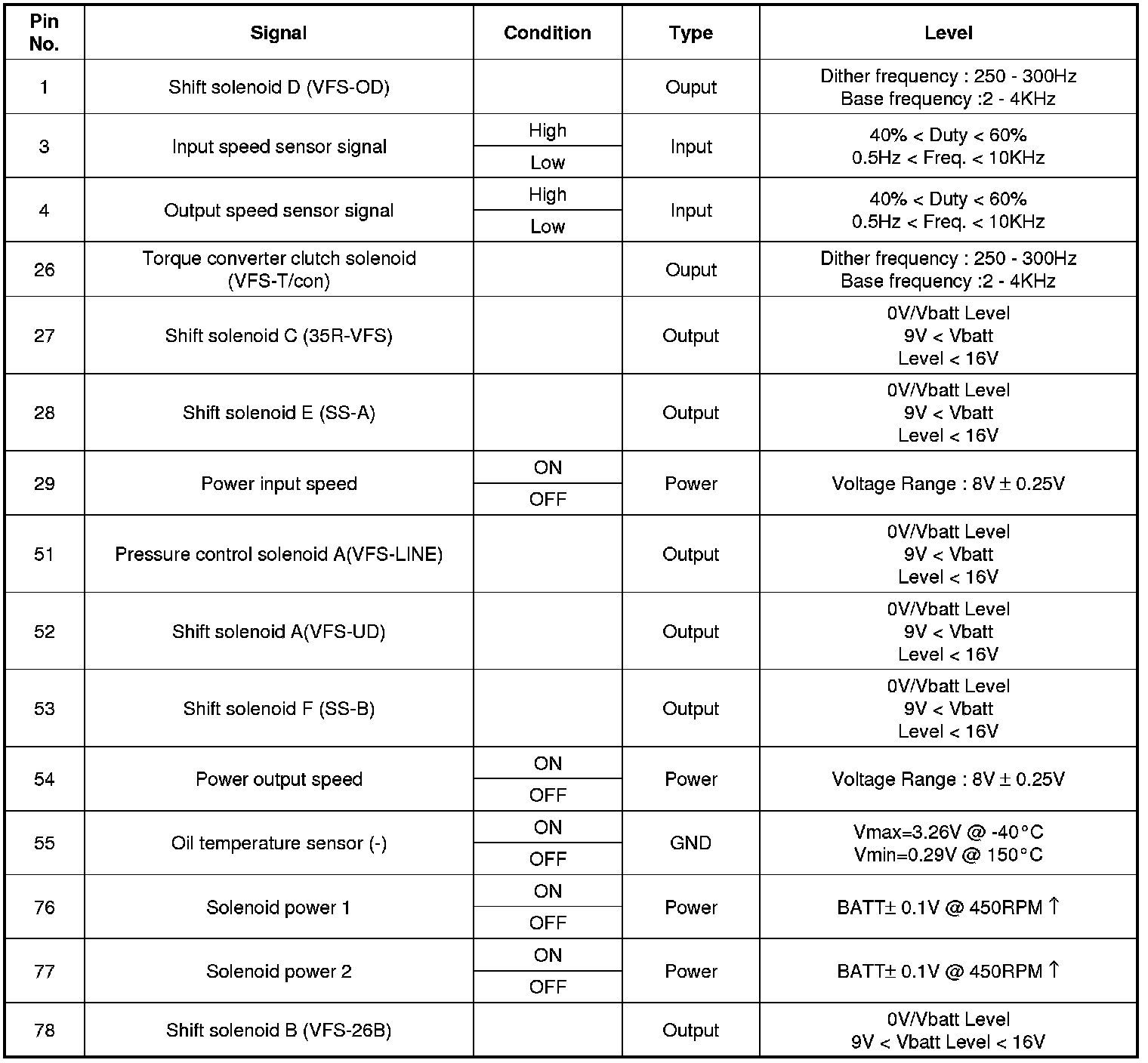

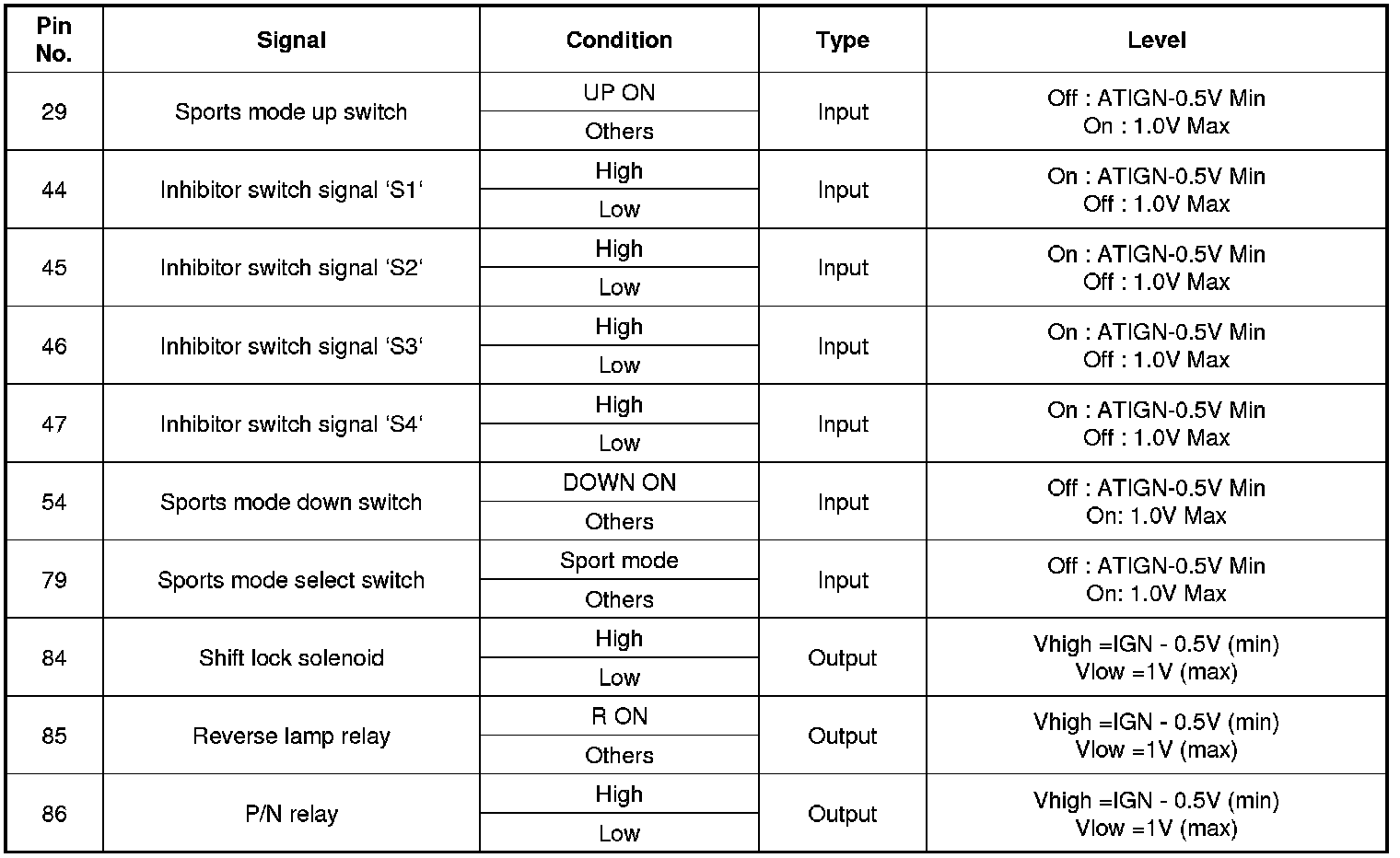

3. TCM Terminal input/ output signal

Connector [CHG-A]





Connector [CHG-B]
