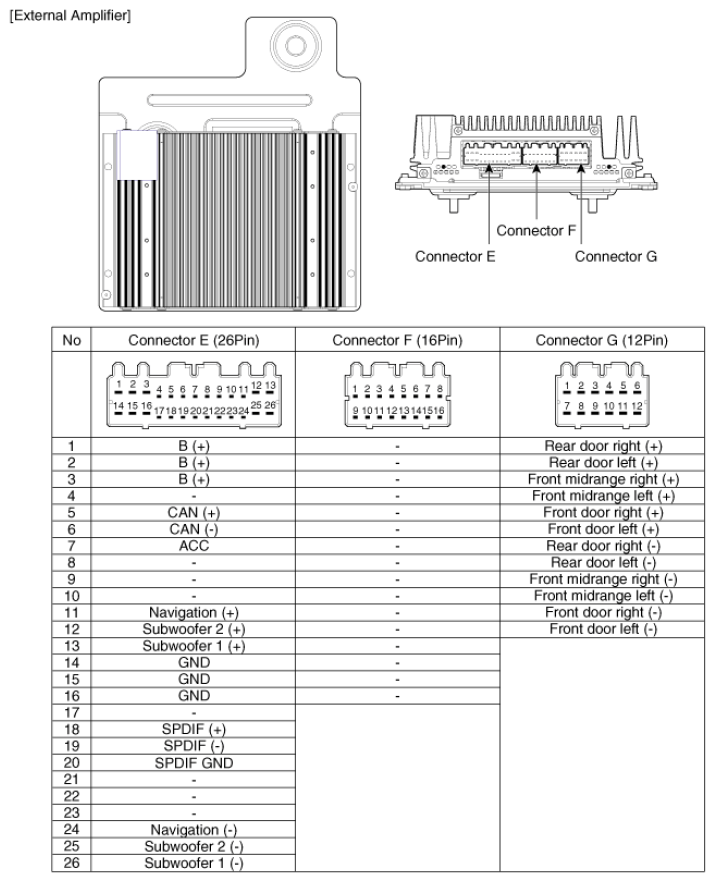

Terminal specification (UVO)
| Pin NO | Comments | Remarks | Output voltage (V) |
|---|---|---|---|
| A5 | SPDIF_GND | Needed connection to the car | Digital Audio Output |
| A6 | SPDIF_DN | Needed connection to the car | Digital Audio Output |
| A8 | Rheostat from vehicle + | ||
| A17 | Rheostat from vehicle - | ||
| A18 | Remote supply for motorized antenna | ACC on | 9V ~ 18V |
| B1 | CAN_HIGH | Needed connection to the car | Communication with external amp |
| B4 | Steering Wheel Remote Control | Steering Wheel switch pushed | 0.5V ~ 3V |
| B6 | Rear View Camera Video Signal | Gearbox is in R-position | A waveform synchronized with video |
| B7 | Rear View Camera Power Supply | Gearbox is in R-position | 3.2V ~ 3.45 |
| B8 | AUX Right Sound Signal | External Auxiliary device is Audio playing (At time of Aux jack use) |
A waveform synchronized with sound is output |
| B9 | AUX Reference Ground | Always | Below 1 ohm |
| B10 | Bluetooth MIC+ | Input the Voice Signal via MIC | A waveform synchronized with Voice data via MIC |
| B11 | Accessory | Engine switch on(ACC) | 11 ~ 14 V |
| B12 | Battery | Always | 11 ~ 14 V |
| B13 | CAN_LOW | Needed connection to the car | Communication with external amp |
| B15 | Auto Light Signal | Needed connection to the car | |
| B16 | Speed Sensor Signal | Engine switch on(IGN), car is moved slowly | Approx. 5V Level Pulse Generation |
| B17 | Steering Wheel Remote Control Gnd | Always | Below 1 ohm |
| B18 | Rear View Camera Video GND | Gearbox is in R-position | A wave for synchronized with video |
| B19 | R-Position | Needed connection to the car | Gearbox is in R-position |
| B20 | AUX Signal Input Detect | Auxiliary device is inserted | 0V(Low) → 5V(High) |
| B21 | AUX Left Sound Signal | External Auxiliary device is Audio playing (At time of Aux jack use) |
A waveform synchronized with sound is output |
| B22 | Bluetooth MIC- | Input the Voice Signal via MIC | A waveform synchronized with Voice data via MIC |
| B23 | Rear View Camera Power GND | Always | Below 1 ohm |
| B24 | Ground | Always | Below 1 ohm |
