Battery status inspection

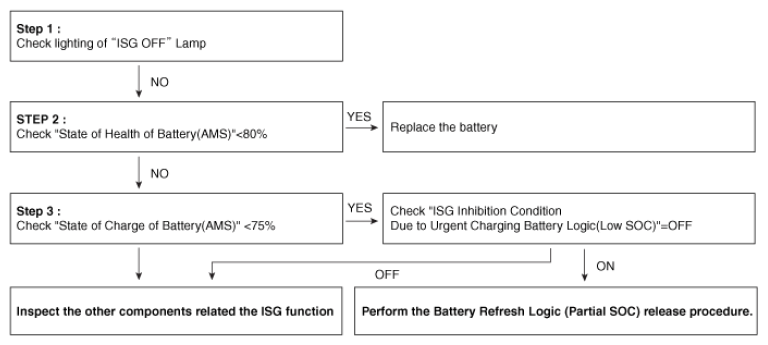

Fig 1: ISG Battery Status Inspection Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
