WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.

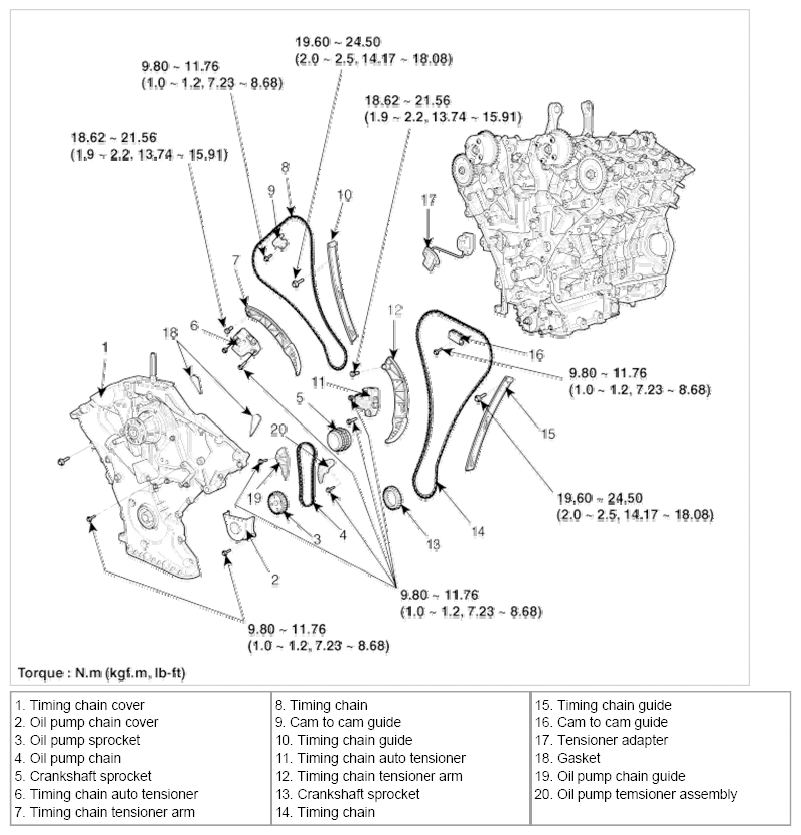

Fig 1: Timing System Replacement Components With Torque Specifications (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Timing System Replacement Components With Torque Specifications (2 Of 2)
